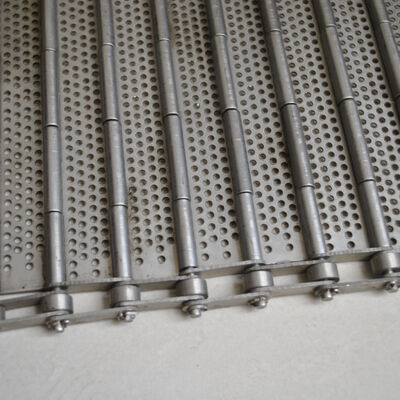

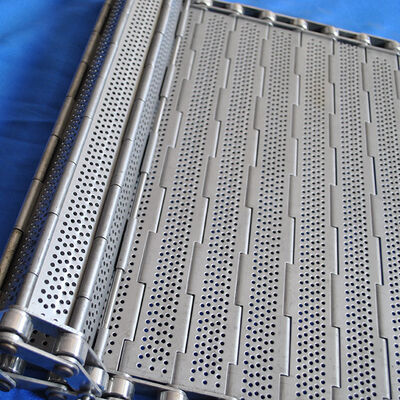

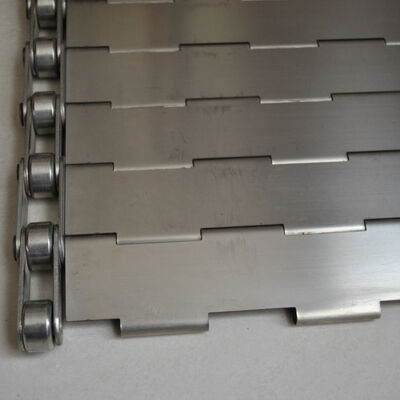

Stainless Steel Wire Mesh Conveyor Belt with perforated metal chain plate design and side chains secured by welded rings

Stainless Steel Wire Mesh Conveyor Belt with perforated metal chain plate design and side chains secured by welded rings

Brand Name:	Comesh
Model Number:	CO-LO
MOQ:	10 meters
Price:	USD 5.99-35.99per meter
Payment Terms:	L/C, T/T
Supply Ability:	1000 meters per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

FDA

Packaging Details:

wooden box

Highlight:

stainless steel wire mesh conveyor belt

perforated metal chain plate conveyor belt

welded ring side chain conveyor belt

Product Description

Product details

304 316 Stainless Steel Chain Plate Link Perforated Mesh Conveyor Belt

Description :
Plate belt is a very robust belt that is made of stainless steel and driven by sprocket. Perfect for conveying small products,
smooth running, easy to maintain, durable, constructed of plates or hanges linked together by means of cross rods. The belt is
almost always equipped with side chains. The chains are secured by a ring welded at the cross rods ends.

Pls advise the data in the following drawing before making our best offer.

Product Description

Specification of Perforated Metal Chain Plate Conveyor Belt
Material	carbon steel, SUS 201 304 316
Plate thickness	0.8mm 1mm 1.2mm 1.5mm 2mm 2.5mm 3mm or customized
Perforated hole diameter	4mm 5mm 6mm 7mm 8mm, etc
Cross rod diameter	5mm 6mm 8mm 10mm 12mm or customized
Chain pitch	19.05mm 25.4mm 31.75mm 38.1mm 50.8mm 76.2mm or customized
Width	0.2m to 4m
Length	customized

Feature

1. It can be the delivery of granular materials, can also be carried into the delivery of items.
2. Suitable for high density transportation in small.
3. Smooth motion,force
4. Convenient installation and replacement,high cost,long service life.

Application

1. Fast frozen machine,baking machine, plane conveyor, screw conveyor.
2. Cleaning,sterilization,drying ,cooking,cooling and so on for food machine.
3. Losing bottle annealing,roast flower etc for glass machine .
4. Eachi kinds of pipeline transport.
5. Metal process:powder metallurgy, heat treatment ,hardening, sintering, brazing, roasting, brightening, blacking, bearing,
carburizing high-temperature.
6. Washing machine,winding machine,drying machine, etc.
