SS304 Chain Link Eye Flex Stainless Steel Wire Mesh Freezer Belt 1.5-3.0mm Chain Edge for IQF Cooling

Brand Name:	COMESH
Model Number:	CAR
MOQ:	5 Meters
Price:	USD 22-60 / Square Meter
Payment Terms:	T/T,Western Union,PayPal
Supply Ability:	1000 Square Meters per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

ISO 9001:2015, SGS, CE

Material:

SS304 Stainless Steel

Belt Type:

Chain Link / Eye Flex Wire Mesh

Wire Diameter:

1.5mm, 2.0mm, 2.5mm, 3.0mm

Mesh Pitch:

12.7mm, 19.05mm, 25.4mm

Belt Width:

300mm - 2500mm (Customizable)

Belt Length:

Customizable Per Requirement

Edge Type:

Chain Driven Edge / Welded Chain Edge

Temperature Range:

-60°C To +300°C

Load Capacity:

Up To 100 Kg/m (Heavy Duty)

Application:

IQF Freezer, Blast Freezer, Cooling Tunnel, Cold Storage

Name:

SS304 Chain Link Eye Flex Stainless Steel Wire Mesh Freezer Belt

Packaging Details:

Reinforced wooden crate with anti-rust oil coating, export-grade moisture barrier packaging

Highlight:

SS304 stainless steel wire mesh belt

chain link eye flex freezer belt

IQF cooling conveyor belt

Product Description

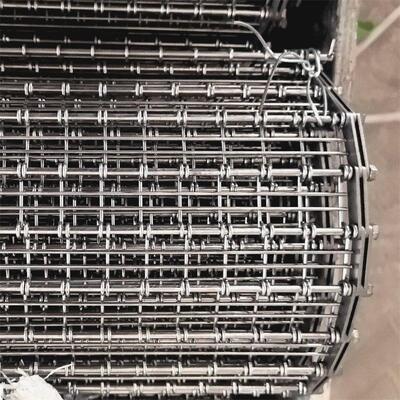

SS304 Chain Link Eye Flex Stainless Steel Wire Mesh Freezer Conveyor Belt

Our SS304 Chain Link Eye Flex Wire Mesh Freezer Conveyor Belt is purpose-built for low-temperature food processing environments including IQF (Individual Quick Freezing) tunnels, blast freezers, and cooling conveyor systems. The chain link eye flex construction combines heavy-duty load capacity with exceptional low-temperature toughness, maintaining structural integrity and flexibility even at -60°C.

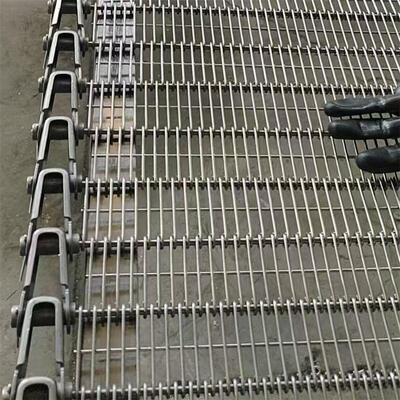

With chain-driven edges providing positive sprocket engagement and uniform tracking, this belt eliminates slippage in frozen and wet operating conditions. The wire link loop design delivers an open structure ideal for cryogenic airflow penetration, rapid freezing, and easy washdown sanitation. Available in wire diameters from 1.5mm to 3.0mm with customizable belt widths up to 2500mm.

Key Features

Feature	Description
Low Temperature Toughness (-60°C)	SS304 stainless steel retains ductility and impact resistance at extreme sub-zero temperatures. No embrittlement or cracking in continuous blast freezer operation.
Chain-Driven Edge System	Integrated stainless steel chain edges provide positive sprocket drive, eliminating belt slippage on wet or iced surfaces. Ensures precise speed synchronization in multi-belt freezer lines.
Heavy-Duty Load Capacity	Eye link loop construction supports up to 100 kg/m distributed load. Suitable for bulk frozen product conveying in spiral and tunnel freezers.
Superior Cryogenic Airflow	Open mesh structure allows unrestricted cryogenic gas or cold air circulation around products from all directions for rapid, uniform freezing.
Corrosion & Ice Resistance	SS304 material resists oxidation from constant moisture, defrost cycles, and food-grade cleaning chemicals commonly used in freezer sanitation protocols.
Easy Sanitation & Washdown	Open loop design allows thorough washdown without disassembly. Withstands high-pressure hot water cleaning and food-safe sanitizers.

Technical Specifications

Belt Type	Chain Link / Eye Flex (Wire Loop) Conveyor Belt
Material	AISI 304 (1.4301) Stainless Steel
Wire Diameter Options	1.5mm / 2.0mm / 2.5mm / 3.0mm
Mesh Pitch Options	12.7mm (1/2") / 19.05mm (3/4") / 25.4mm (1")
Belt Width Range	300mm - 2500mm (Customized)
Open Area Ratio	65% - 80%
Temperature Resistance	-60°C to +600°C
Edge Processing	Chain Driven Edge (Sprocket Engagement)
Load Capacity	Up to 100 kg/m (Heavy Duty Rated)
Drive Method	Chain & Sprocket Positive Drive
Joint Type	Welded Eye Link / Mechanical Loop Connection

Primary Applications

IQF Freezer Tunnels Blast Freezer Lines Spiral Freezer Conveyors Cooling Tunnel Systems Seafood & Shrimp Freezing Frozen Vegetable Processing Meat & Poultry Freezing Cold Storage Logistics

Why Choose BZ Chain Link Freezer Belts?

Engineered for Extreme Cold — Every belt undergoes low-temperature impact testing at -60°C to guarantee performance before shipment
18+ Years Freezer Belt Expertise — Trusted supplier for IQF and spiral freezer OEMs across Asia, Europe, and North America
CE Certified & SGS Tested — Full material certification and dimensional inspection reports provided with every order
Spiral Freezer Compatible — Chain edge design supports lateral flex for spiral and curved freezer conveyor configurations
Rapid Turnaround on Urgent Orders — Stock sizes ship within 7 days; custom production completed in 15-25 days
Technical Support Included — Free belt selection guidance and installation support for your freezer conveyor system

SS304 Chain Link Eye Flex Stainless Steel Wire Mesh Freezer Belt 1.5-3.0mm Chain Edge for IQF Cooling

Request Your Freezer Belt Specification & Quote

Tell us your freezer type, belt dimensions, and load requirements. We will respond with a tailored specification sheet, pricing, and delivery timeline within 24 hours.
