Metal Chain Driven Horseshoe Stainless Steel Honeycomb Mesh Belt for Seafood Cooling

Metal Chain Driven Horseshoe Stainless Steel Honeycomb Mesh Belt for Seafood Cooling

Brand Name:	Comesh
Model Number:	CAR-019
MOQ:	10 meters
Price:	Negotiable
Payment Terms:	T/T, Western Union,
Supply Ability:	200 meters per months

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

FDA

Name:

Metal Chain Driven Horseshoe Stainless Steel Honeycomb Mesh Belt For Seafood Cooling

Material:

Stainless Steel 304,316,310，carbon Steel

Thickness:

0.8 Mm-5mm And So On

Feature:

Wear Resistant, Heat Resistant, Acid Resistant

Belt Type:

Sprockets Driven Directly

Chain Pitch:

19.05 / 25.4 / 31.75 / 38.1 / 50.8 / 76.2 / 101.6 Mm

Processing Service:

Bending, Welding, Decoiling, Cutting, Punching

Application:

Cleaning Processes, Cooking, Cooling, Products Transfer

Technique:

Welded ,bending

Rod Diameter:

5 / 6 / 8 / 10 / 12 Mm

Packing:

Wooden Case

Packaging Details:

plastic bag inside wooden case outside

Highlight:

stainless steel honeycomb mesh belt

metal chain driven conveyor belt

seafood cooling wire mesh belt

Product Description

Metal Chain Driven Horseshoe Stainless Steel Honeycomb Mesh Belt for Seafood Cooling

Metal Chain Driven Horseshoe Stainless Steel Honeycomb Mesh Belt for Seafood Cooling description:

The Great Wall net belt is also called horseshoe chain, plate type net belt, metal sheet type net belt, towing belt is composed of flat metal sheet and round metal wire, the net belt is light in weight, the mesh hole is large, the mesh surface is flat, the running is stable and will not deviate. It can be used for washing, drying, cooling and heat treatment. It is widely used in food bread thread, screw tower conveying, spraying, cleaning machine and heavy-duty conveying machine. Using the Great Wall belt can form a conveying process of material from the initial feeding point to the final unloading point on a certain conveying line. The Great Wall network belt can be used for the transport of broken materials, but also for the conveyance of finished items. In addition to pure material transportation, it can also meet the requirements of the technological process in the production process of various industrial enterprises, and form a rhythmic flow line of transportation. Therefore, the Great Wall network belt is widely used in modern industrial enterprises, is the industry automation equipment and modern automation assembly line indispensable important accessories.

Name	Metal Chain Driven Horseshoe Stainless Steel Honeycomb Mesh Belt for Seafood Cooling
Material	Stainless steel 304,316,310,314S,carbon steel
Plate thickness	0.5mm-3mm
Purpose	Cooking, baking, cooling, washing, frying, drying, sterilizing, pasteurizing, transporting, garbage disposal, blanching, deep frying and so on.
Driven type	Sprockets driven directly

Metal Chain Driven Horseshoe Stainless Steel Honeycomb Mesh Belt for Seafood Cooling advantage:

Honeycomb conveyor belt is a perfect products with both durability and suitable open area. It is temperature resistance, which is popular in the baking conveying applications. The flat surface of honeycomb conveyor belt supplies stable conveying during using. Honeycomb belts are used in production processes with temperatures of -30ºC up to +400ºC in food and other industries.

Metal Chain Driven Horseshoe Stainless Steel Honeycomb Mesh Belt for Seafood Cooling application:

1. Quick freezing in product handling systems, flat conveying of baking machinery, spiral conveying, annealing, baking, bottleconveying, etc. of glass machinery.

2. Cleaning, drying, cooling, steaming, etc. in food production.

3. Stainless steel metal honeycomb mesh conveyor belts are widely used in glass industry, food processing industry, and chemical industry.

4. Mesh conveyor belts are widely used in cement, metallurgy, casting, chemical industry and other fields to transport materials.

5. Mesh conveyorbelts can be used as high temperature and burn resistant conveyor belts, and can also serve as mats and drag pads.

6. Cooking,baking, cooling, washing, frying, drying, sterilizing, pasteurizing, transporting, garbage disposal, blanching, deep frying

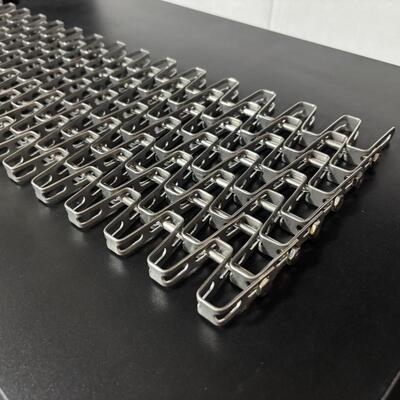

Metal Chain Driven Horseshoe Stainless Steel Honeycomb Mesh Belt for Seafood Cooling 0

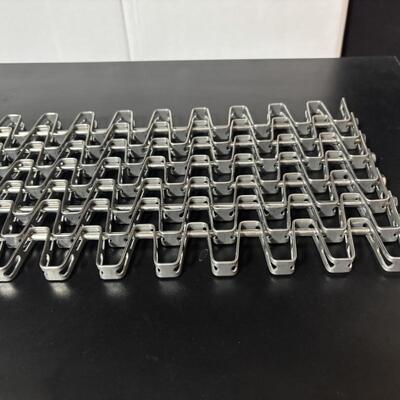

Metal Chain Driven Horseshoe Stainless Steel Honeycomb Mesh Belt for Seafood Cooling 1

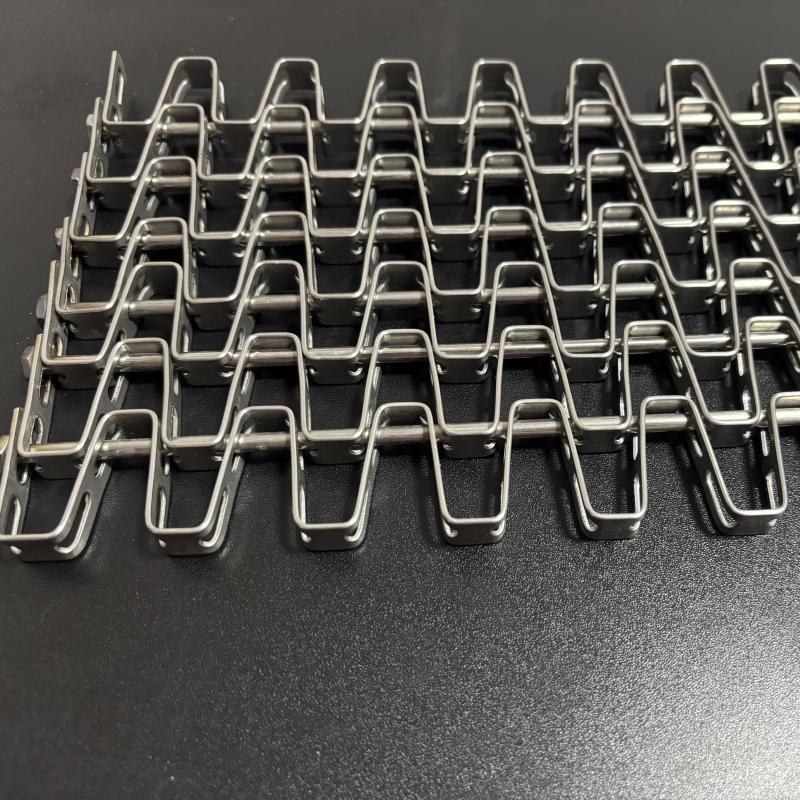

Metal Chain Driven Horseshoe Stainless Steel Honeycomb Mesh Belt for Seafood Cooling 2
