Carbon Steel Hinged Conveyor Belt Apron Chain for Chip Conveyor

Name: Carbon Steel Hinged Conveyor Belt Apron Chain for Chip Conveyor
Brand: Anping County Comesh Filter Co.,Ltd
SKU: COM-A
Price: 100.50 USD
Availability: InStock

Product Details

Place of Origin: Hebei,China

Brand Name: Comesh

Certification: SGS

Model Number: COM-A

Payment & Shipping Terms

Minimum Order Quantity: 1 Meter

Packaging Details: Plastic Bag And Plywood Case

Delivery Time: 7 Working Days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,

Supply Ability: 5000 Meters Per Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                    carbon steel conveyor belt chain, hinged apron conveyor belt, chip conveyor belt with warranty


Material:	Carbon Steel Or As Your Request	Plate Thickness:	1mm - 5mm
Length:	10 - 30m / Roll	Width:	As Per Order
Sample:	Available	We Are Factory:	Yes

Material:	Carbon Steel Or As Your Request
Plate Thickness:	1mm - 5mm
Length:	10 - 30m / Roll
Width:	As Per Order
Sample:	Available
We Are Factory:	Yes

Product Description

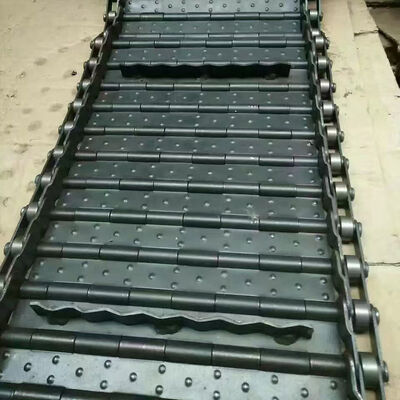

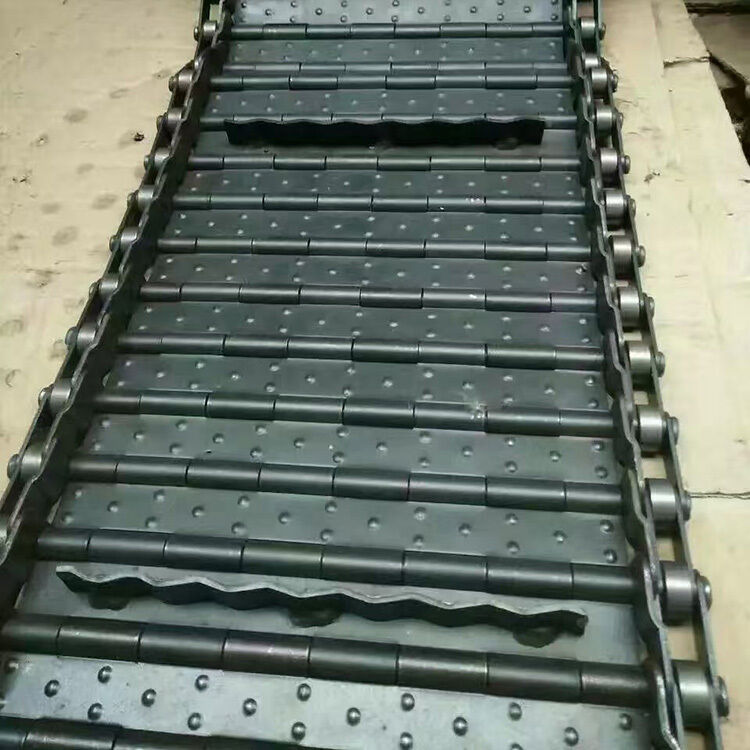

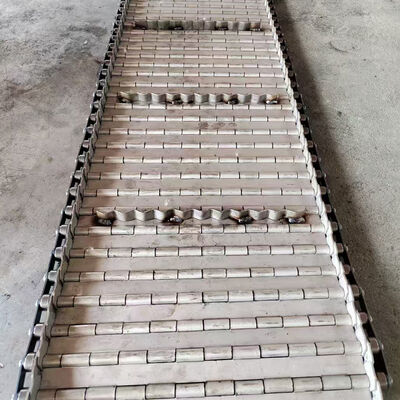

Carbon Steel Hinged Conveyor Belt Apron Chain for Chip Conveyor

Heavy-duty plate link conveyor belt system designed for demanding industrial applications with superior strength and durability.

Product Overview

Plate Link Conveyor Belt features exceptional strength with stainless steel chain drive and stainless steel plate construction. Engineered for heavy load applications, it ensures smooth operation during conveying processes, easy installation and replacement, and extended service life. The self-supporting structure enables use over large widths without additional support.

Available with hinged slats in perforated or solid configurations, perforated plate belts are ideal for drainage conveyor systems with customizable perforation sizes to fit specific production line requirements.

Customizable side plates and cross flights in various height and thickness combinations accommodate different customer specifications, supporting light to heavy load capacities. Chain edge plate belts feature secure chain fixation with cotter pins or washers for convenient disassembly and maintenance.

Tailor-made link plate belts are available in virtually any width, length, and plate thickness. Positively driven by sprockets, these belts operate efficiently at conveyor speeds up to 120 meters per minute.

Edge Configuration Options

Available in two edge types:

Standard plate link conveyor belt
Plate link conveyor belt with side plate

Technical Specifications

Material	Stainless steel 304, 316 or as per order
Plate Thickness	1mm - 4mm (special wire diameter available)
Pitch	25.4mm - 125mm (custom pitches available)
Barrier	Customizable shape and size
Sample	Custom samples produced according to requirements

Key Features

Optional side guards prevent product spillage
Chain link edge ensures smooth and efficient operation
Curved perforated plate conveyor belt available for specialized applications
Ideal for demanding engineering processes including press work, die-casting and forging
Minimal maintenance requirements with extended working life

Industrial Applications

Plate link conveyor belts offer versatile solutions across multiple industries:

Packaging & Material Handling: Transport items between processing stations in pharmaceuticals, cosmetics, and logistics
Recycling & Waste Management: Handle bulky and irregular materials including plastic bottles, cans, and scrap metal
Mining & Quarrying: Transport bulk materials like ores, coal, gravel, and aggregates over long distances
Glass Manufacturing: Safely transport glass sheets and bottles with scratch-prevention surfaces
Wood Processing: Move logs, lumber, and wooden panels with stable conveying solutions
Textile Industry: Transport fabrics and garments with non-slip surfaces for reliable movement
