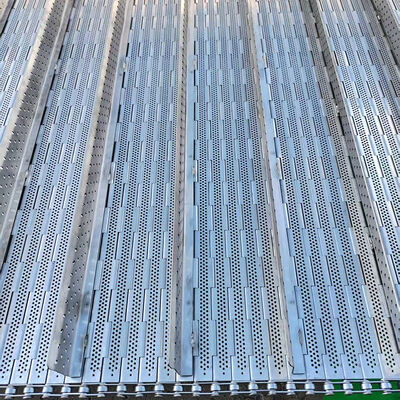

Heavy Duty Stainless Steel 304 316 Chain Link Perforated Plate Conveyor Belt

Heavy Duty Stainless Steel 304 316 Chain Link Perforated Plate Conveyor Belt

Brand Name:	Comesh
Model Number:	COM-A
MOQ:	1 Meter
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,
Supply Ability:	5000 Meters Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

SGS

Material:

Stainless Steel 304 316 Or As Your Request

Plate Thickness:

1mm - 5mm

Length:

10 - 30m / Roll

Width:

As Per Order

Sample:

Available

We Are Factory:

Yes

Packaging Details:

Plastic Bag And Plywood Case

Highlight:

stainless steel 304 conveyor belt

heavy duty perforated conveyor belt

316 chain link wire mesh belt

Product Description

Heavy Duty Stainless Steel 304 316 Chain Link Perforated Plate Conveyor Belt

Plate Link Conveyor Belt is engineered for strength and durability, driven by stainless steel chains and constructed from stainless steel plates. Ideal for heavy load applications, these belts ensure smooth operation during conveying processes, easy installation and replacement, and extended service life. The self-supporting structure allows for use over large widths without additional support.

The conveyor belt consists of hinged slats available with or without perforations. Perforated plate belts are particularly suited for drainage conveyor systems, with customizable perforation sizes to fit specific production line requirements.

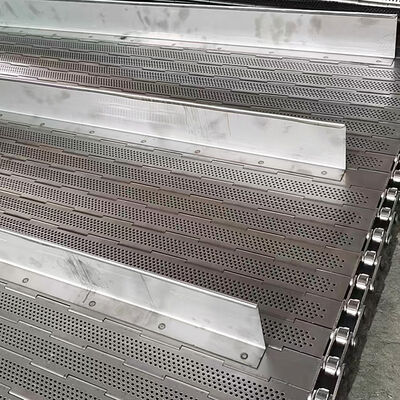

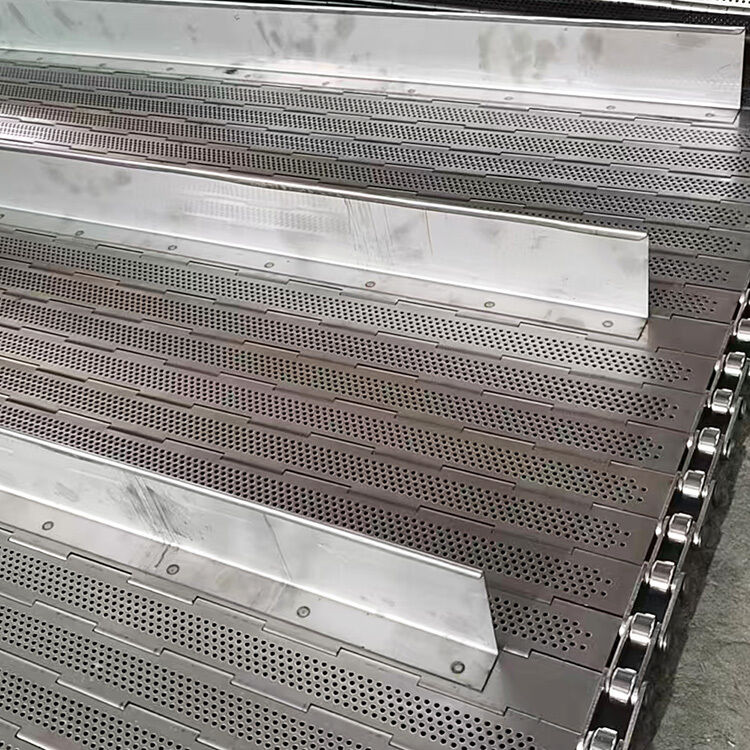

Hinged plate belts feature side plates and cross flights in various height and thickness combinations to meet diverse customer needs. Available for light to heavy load capacities, chain edge plate belts can be secured with cotter pins or washers for easy disassembly and maintenance.

These link plate belts are custom-made with pitches available in virtually any width, length, and plate thickness. Positively driven by sprockets, they operate efficiently at conveyor speeds up to 120 meters per minute.

Edge Configurations

Flat flex conveyor belts are available in two edge types:

Standard plate link conveyor belt
Plate link conveyor belt with side plate

Technical Specifications

Material	Stainless steel 304 316 or as per order
Plate thickness	1mm - 4mm (Special wire diameter available)
Pitch	25.4mm - 125mm (Other pitches customizable)
Barrier	Customizable shape and size
Sample	Available according to your requirements

Key Features

Temperature resistance from -30ºC to +600ºC for food and industrial applications
Corrosion and rust resistance for use in corrosive environments
Optional baffles for convenient sorting and conveying
Side guards to prevent product spillage
Chain link edge ensures smooth and efficient operation

Industry Applications

Plate link conveyor belts are versatile solutions for various industrial applications:

Packaging and Material Handling: Transporting items between processing stations in pharmaceuticals, cosmetics, and logistics
Recycling and Waste Management: Handling bulky and irregularly shaped materials like plastic bottles, cans, and scrap metal
Mining and Quarrying: Heavy-duty transportation of ores, coal, gravel, and aggregates over long distances
Glass Manufacturing: Handling glass sheets and bottles with flat, smooth surfaces to prevent damage
Wood Processing: Moving logs, lumber, and wooden panels with stable, reliable conveying
Textile Industry: Transporting fabrics and garments with non-slip surfaces to prevent material slippage
