Stainless Steel Freezing Food Conveyor 304 Stainless Steel Spiral Balance Mesh Belt

Brand Name:	COMESH
Model Number:	CN-CAR
MOQ:	negotiable
Price:	negotiable
Payment Terms:	L/C, T/T, Western Union, ,Paypal,Trade assurance
Supply Ability:	300 meter per month

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

SGS

Material:

SS304,316,carbon Steel

Hot Search:

Balance Freezing Wire Mesh Conveyor Belt

Style:

Chain Conveyor Belt

Name:

Stainless Steel Freezing Food Conveyor 304 Stainless Steel Spiral Balance Mesh Belt

Spiral Pitch::

3-50 Mm

Diameter:

0.5-5 Mm

Width:

20-400 Cm

Used:

Spiral Freezer & Self-stacking Spiral Freezer

Feature:

Strong Load Capacity, Easy To Clean. Easy To Maintain.

Packaging Details:

Plastic bag inside and plywood case outside or according to your need.

Highlight:

304 stainless steel spiral conveyor belt

freezing food mesh belt conveyor

stainless steel wire mesh conveyor

Product Description

Stainless Steel Freezing Food Conveyor 304 Stainless Steel Spiral Balance Mesh Belt

Balanced weave spiral mesh belt as the simplest version of universal weave conveyor belt features right and left hand round wires twisted into each other similar to a diamond mesh wire cloth. This design provides large open area to enhance the efficiency of product washing and drying process.

Application:

1) Widely used in solar power, mine, metallurgy, petroleum, chemical, food, pharmeceuticals, glass, printing and machine making industries;
2) Heat treament, drying, cooling, refrigerating, cleaning, dehydration, sintering, transportation, material handling, steaming, filtering, sludge draining, printing, etc.
3) Used in sintering furnace, annealing furnace, continuous tunnle furnace, travelling furnace, high-temperature furnace, production line, etc

Feature:

The belt is produced using right and left spiral connecting and crimped connecting rod to form balance weave ,which is tracking streight.
This kind of spiral wire link belt is the most widely used mesh belt.
Spiral wirelink belt can conveyor goods from big size or very hot to very small size ,unsorted who need stable support because of its adjustable openning size
The round end of spiral wirelink belt allow goods on it transfer to the following stage processing very easily.
spiral wirelink belt is also can be used to transport in glass furnace,at the same time, it can be use as decorative dividers in architecture and safty curtain

material	stainless steel 304,201,316,galvanized iron wire,SAE,
datas	spiral wire diameter,string wire diameter,pitches of spiral wire,string wire,rod daimeter,width and length
requriement	such as working temperature,loading weight,transport way,etc
size of the belt	wide and length can be designed according to customer`s requriement.

You can according to the following picture and tell me your specification

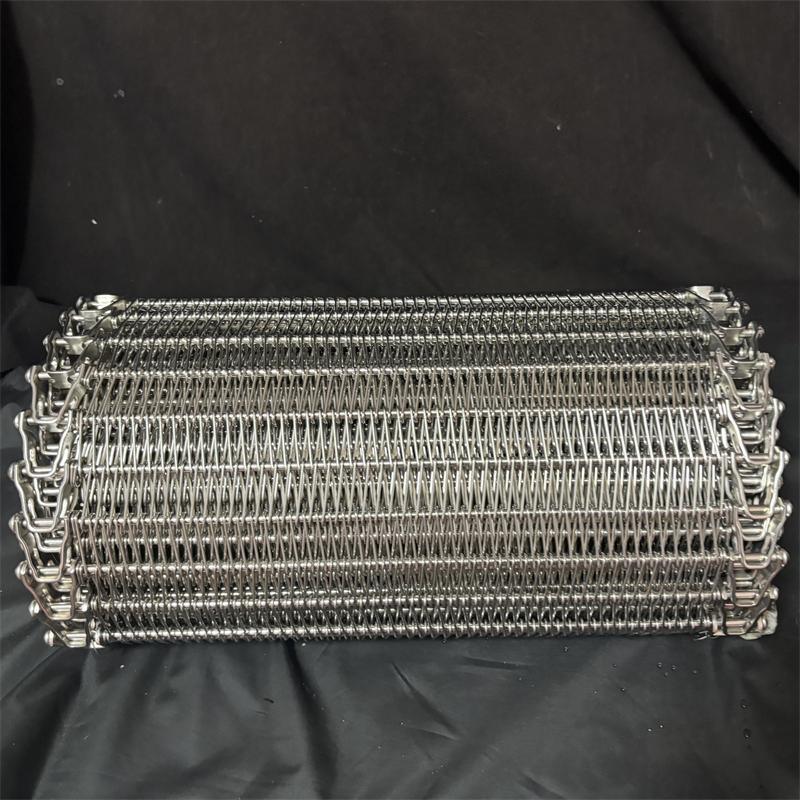

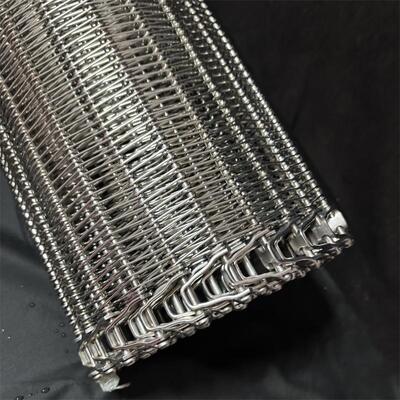

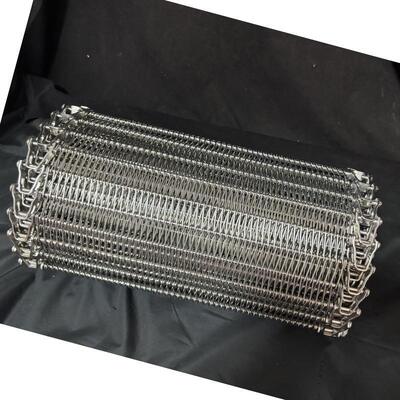

Stainless Steel Freezing Food Conveyor 304 Stainless Steel Spiral Balance Mesh Belt 0

Stainless Steel Freezing Food Conveyor 304 Stainless Steel Spiral Balance Mesh Belt 1

Stainless Steel Freezing Food Conveyor 304 Stainless Steel Spiral Balance Mesh Belt 2

Stainless Steel Freezing Food Conveyor 304 Stainless Steel Spiral Balance Mesh Belt 3
