304 Stainless Steel Balance Weave Spiral Wire Mesh Chain Driven Freezer Conveyor Belt

Name: 304 Stainless Steel Balance Weave Spiral Wire Mesh Chain Driven Freezer Conveyor Belt
Brand: Anping County Comesh Filter Co.,Ltd
SKU: CM-CB2511201
Price: 45.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: COMESH

Certification: FDA

Model Number: CM-CB2511201

Payment & Shipping Terms

Minimum Order Quantity: 2 m

Price: USD35-55 per meter

Packaging Details: PP bag inside, and then wooden case outside

Delivery Time: 7-10 days

Payment Terms: D/A,D/P,T/T,Western Union,

Supply Ability: 500m per week

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                            304 stainless steel conveyor belt, chain driven freezer conveyor belt, balance weave spiral wire mesh


Material:	Stainless Steel 304	Width:	800 Mm , Or Customized
Length:	6 M Per Roll , Or Customized	Wire Diameter:	1.5 Mm , Or Customized
Rod Diameter:	6 Mm , Or Customized	Spiral Pitch:	8 Mm , Or Customized
Chain Pitch:	38.1 Mm , Or Customized

Material:	Stainless Steel 304
Width:	800 Mm , Or Customized
Length:	6 M Per Roll , Or Customized
Wire Diameter:	1.5 Mm , Or Customized
Rod Diameter:	6 Mm , Or Customized
Spiral Pitch:	8 Mm , Or Customized
Chain Pitch:	38.1 Mm , Or Customized

Product Description

304 Stainless Steel Balance Weave Spiral Wire Mesh Chain Driven Freezer Conveyor Belt

This kind of Balance Weave Spiral Wire Mesh Chain Driven Freezer Conveyor Belt is especially designed for spiral or round conveyor as well as straight-running conveyor. With the ability to side flex, the belt can also be used for conveyors arranged to go around obstacles.The flexible rod belt is popular in the food industries, including cooling, cooking or freezing products.

Product Specifications

Material	Stainless steel 304, or customized
Width	800 mm, or customized
Length	6 m per roll, or customized
Wire Diameter	1.5 mm, or customized
Rod diameter	6 mm, or customized
Spiral pitch	8 mm, or customized
Chain pitch	38.1 mm, or customized

Available Materials

1) AISI 314 (1150°C)

2) SUS 310S (1090°C)

3) SUS 330 (1150°C)

4) SUS 304 (400°C)

5) SUS 316 (1000°C)

6) Super alloy Cr20Ni80 (1250°C) electrical furnace wire

7) SUS 321 (750°C)

8) SUS 410 (700°C)

9) SUS 430 (700°C)

10) Various metal materials as per your requirements

Key Features

Material: High-quality stainless steel construction provides excellent resistance to corrosion and high temperatures
Design: Spiral wire mesh offers flexibility and strength for transporting various products
Chain Driven: Smooth and reliable movement along the conveyor path
Customization: Available in various sizes, wire diameters, and mesh configurations

Applications

Food processing (especially fried foods industries)
Packaging
Material handling
Automotive assembly lines

Packing & Delivery

Packing: PP bag inside, and then wooden case outside.

Delivery: Can be shipped by sea or air, express services including DHL, FEDEX, TNT, SF, UPS, etc.

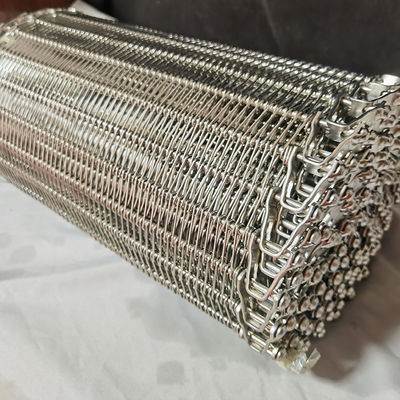

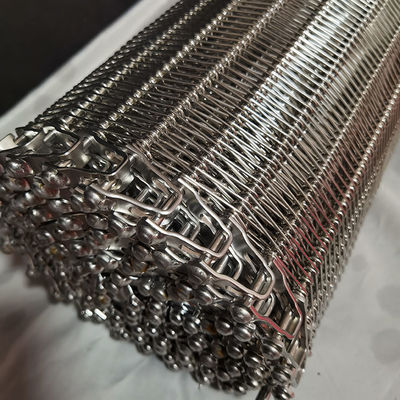

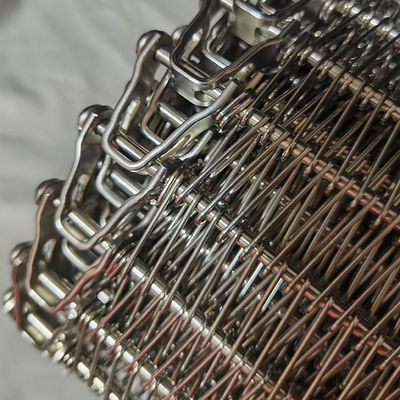

Product Images
