304 Flat Stainless Steel Wire Mesh Conveyor Belt For Heavy Machine Shrink wrap conveyor

304 Flat Stainless Steel Wire Mesh Conveyor Belt For Heavy Machine Shrink wrap conveyor

Brand Name:	COMESH
Model Number:	He-25111101
MOQ:	5 meters
Price:	30-60 USD per meters
Payment Terms:	L/C, T/T
Supply Ability:	300 meters per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

FDA

Material:

Stainless Steel 304 316,glavanized Steel And So On

Name:

Flat Stainless Steel Wire Mesh Conveyor Belt For Heavy Machine Shrink Wrap Conveyor

Edge:

Welded Or Hook

Rod Diameter:

3mm,4mm,5mm

Flat Wire:

1.2mm 1.5mm Thickness,

Application:

Conveyor Material

Feature:

Corrosion Resistant,heat Resistant

Width And Length:

Can Be Customized As Per Your Requirement

Packaging Details:

plywood case to make sure the shipping safty of the conveyor belt

Highlight:

304 stainless steel conveyor belt

flat wire mesh conveyor belt

heavy-duty shrink wrap conveyor

Product Description

304 Flat Stainless Steel Wire Mesh Conveyor Belt For Heavy Machine Shrink wrap conveyor

description:

Honeycomb conveyor belts, also called flat wire conveyor belts, consist of crossbars and flat metal strips. On the sides of the belt, the crossbars have welded rings (welded edges). In some sizes, the belt sides can have tightly fitting edges. Several predefined belt implementations exist, with different pitches and material dimensions. Side plates or scrapers can also be provided. The flat wires are arranged in a grid pattern and connected to straight round bars. The material for the flat steel wire strips is typically high-carbon steel, galvanized steel, stainless steel, and other materials.

Features:

No gripping points or weld seams on the belt edges
Twice the lifespan of competing belts
No special tools required for installation
Active drive for superior belt tracking
Up to 81% open area for superior flow throughput
Allows for tight transfers
Available up to 150 inch wide
High strength-to-weight ratio
Welded button or lap edges
Flat bearing surface
Easy to clean and install
Easy to join
Strong edges reduce jamming or sticking on conveyor protrusions

Applications:

Wire mesh conveyor belts are widely used in cement, metallurgy, casting, and chemical transport materials industries.
Wire mesh conveyor belts can be used in high-temperature resistant, flame-retardant conveyor belts, electronically balanced tear conveyor belts, etc.
Instant noodle and rice industries

Specifciations:

You can refer to the following drawing or send us your requirement so that we can give you advice on its datas

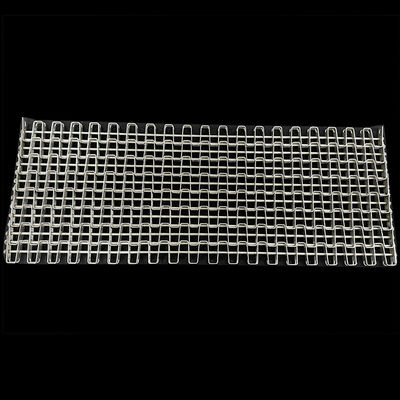

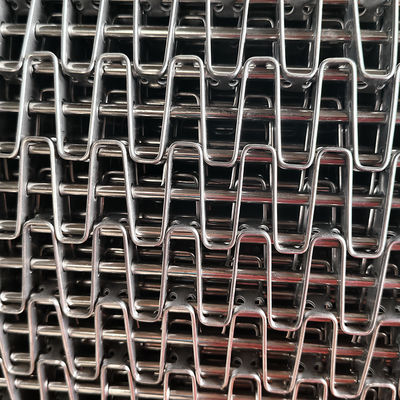

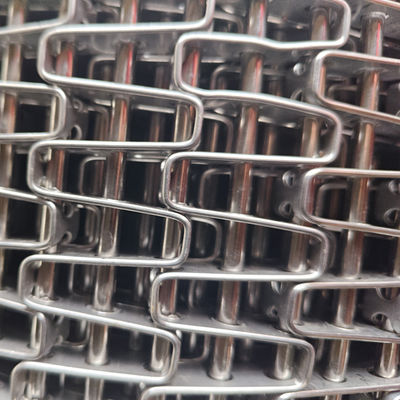

304 Flat Stainless Steel Wire Mesh Conveyor Belt For Heavy Machine Shrink wrap conveyor 1

304 Flat Stainless Steel Wire Mesh Conveyor Belt For Heavy Machine Shrink wrap conveyor 2
