304 316 Stainless Steel Honeycomb Mesh Conveyor Belt For Food Industry

Name: 304 316 Stainless Steel Honeycomb Mesh Conveyor Belt For Food Industry
Brand: Anping County Comesh Filter Co.,Ltd
SKU: COHE250410
Price: 100.50 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: COMESH

Certification: FDA

Model Number: COHE250410

Payment & Shipping Terms

Minimum Order Quantity: 10 meter

Price: negotiable

Packaging Details: plywood case to make sure safty when shipping

Delivery Time: in 10 -15 days

Payment Terms: L/C, T/T

Supply Ability: 500 meter per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                    food industry Honeycomb Mesh Conveyor Belt, 304 stainless steel mesh conveyor belt, Honeycomb stainless steel mesh conveyor belt


Material:	Stainless Steel 304 316 Carbon Steel And Galvanized Steel	Name:	Flat Wire Honeycomb Mesh Conveyor Belt
Features:	Big Opening And Heavy Duty Belt	Application:	Cooling,drying,bread Production,washing ,sorting System Etc

Material:	Stainless Steel 304 316 Carbon Steel And Galvanized Steel
Name:	Flat Wire Honeycomb Mesh Conveyor Belt
Features:	Big Opening And Heavy Duty Belt
Application:	Cooling,drying,bread Production,washing ,sorting System Etc

Product Description

304 316 Stainless Steel Honeycomb Mesh Conveyor Belt for food industry

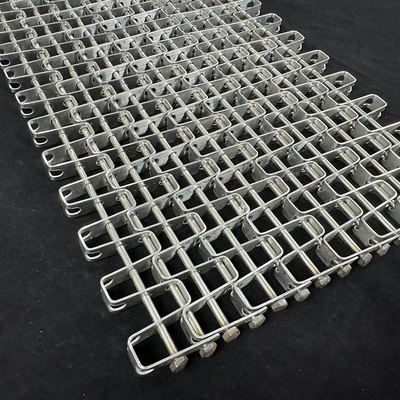

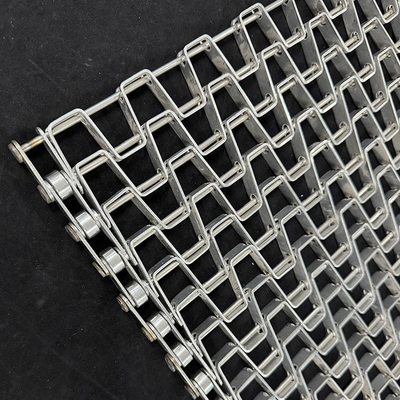

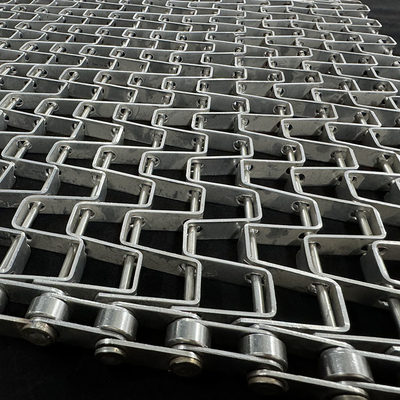

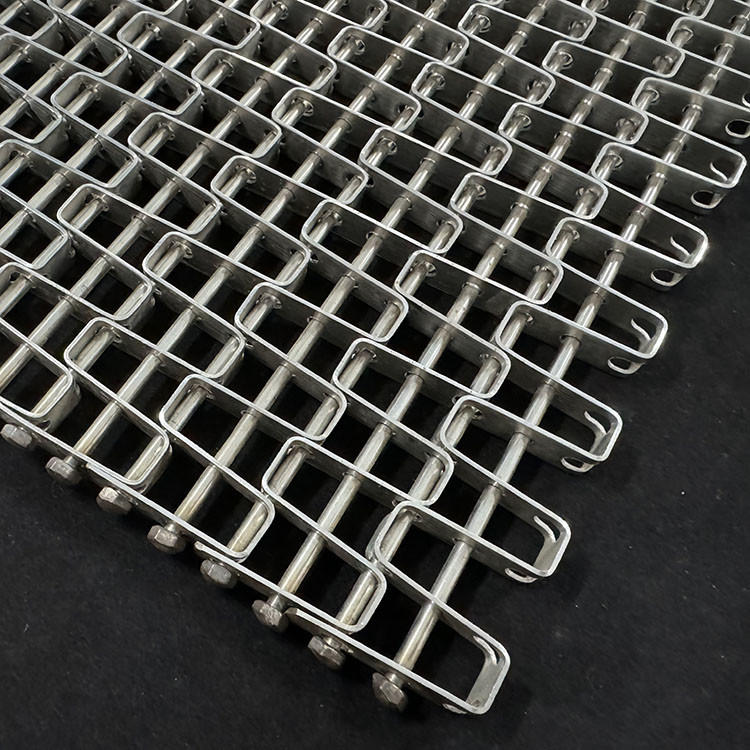

Description of Honeycomb Conveyor Belt

Honeycomb Flat wire belt is made from cross rod and flat strip with weled adge,some with kunckled edge.side guard and flight is available,material includes carbon steel,SS304 and SS316 .Usually used for cooling,drying,bread production,washing ,sorting system etc.

when selecting a flatwire belt, please consider the product size and the weight of the load , standard duty is sufficient for most applications , whereas heavy duty provides extra long life, heavy load capacity and for tougher conditions

Material:	Stainless steel 304, 201, 316, 314, carbon steel, etc
Spiral pitch:	15-30mm
Pitch:	12.7-76.2mm
Rod diameter	2-12mm
Plate thickness:	0.8-3mm
overall width:	100-6000mm
Plate width:	8-25mm
Special specifications are available.

Features of Honeycomb Belt:

Honeycomb conveyor belts provide an open mesh for easy drainage and flow of air ,gases or liquids through the belt and around the product. This enables easy belt cleanable ,endless splicing , positive sprocket drive easily cleanable ,endless splicing ,positive sprocket drive , easy to replace a section that is damaged or worn down .open for drainage and air circulation.

Applciation of Honeycomb Mesh Chain:

food processing canning ,baking , freezing , agricultural applications farming ,harversting , as well as parts washing ,drying cleaning ,painting , drying ,transferring ,also used as matting and drag mats .

304 316 Stainless Steel Honeycomb Mesh Conveyor Belt For Food Industry
