Metal Stainless Steel 304 Mesh Chain Conveyor Belt With Rod

Brand Name:	COMESH
Model Number:	HE25030702
MOQ:	5 meters
Price:	negotiable
Payment Terms:	L/C, T/T
Supply Ability:	1000 meters per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

FDA

Name:

Metal Stainless Steel 304 Mesh Chain Conveyor Belt

Material:

Stainless Steel 304 316 314 310s,glavanized Steel

Features:

Corrosion Resistant,heat Resistant,most Common Type Belt

Application:

Baking,drying,washing,freezing,frying,conveyor

Wire Diameter:

1.0mm,1.2mm,1.5mm,1.8mm,2.0mm,2.5mm,3.0mm And So On

Pitch:

Customized As Per Your Requirement

Packaging Details:

plywood case

Highlight:

304 Mesh Chain Conveyor Belt

Rod Mesh Chain Conveyor Belt

Stainless Steel 304 wire mesh belt

Product Description

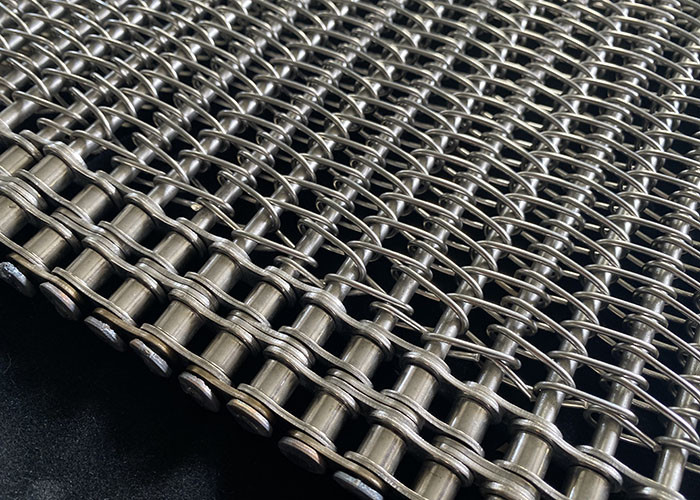

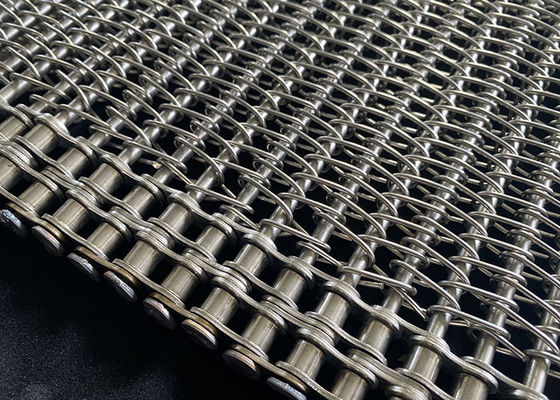

Metal Stainless Steel 304 Mesh Chain Conveyor Belt with Rod

about Metal Stainless Steel 304 Mesh Chain Conveyor Belt with Rod

It is also called Balanced Weave Wire mesh conveyor belt,which is economical mesh and most versatile for many applications,Spiral wire link belt can conveyor goods from big size or very hot to very small size ,unsorted who need stable support because of its adjustable opening size.

The round end of spiral wire belt allow goods on it transfer to the following stage processing very easily.

Features of Stainless Steel 304 mesh Chain conveyor belt:

corrosion resistant
heat resistant
straight running
easy to install
food grade material
customized as per your requirement

Applications of Metal Mesh Chain Covneyor Belt:

Bakery
Wire mesh belts for Mechanical, Metallurgy
Glass Annealing
Wood drying
Architecture
Pharmaceutical wire mesh conveyor belts
Ecology and Metal Recycling
Wire mesh belts for water treatment
Food transport and processing

Specifications and catalog of Mesh Chain Conveyor Belt:

	specifications	Weight per square meters -KG
	K2-40-50-6.0-5.0	15.0
	K2-25-30-5.0-5.0	23.7
	K2-30-40-5.0-4.0	12.7
	K2-20-25-5.0-4.0	21.5
	K2-15-20-4.0-4.0	55.4
	K2-20-25-4.0-3.4	14.4
	K2-25-30-4.0-3.2	10.4
	K2-15-20-3.4-3.2	16.0
	K2-20-25-3.4-3.0	10.7
	K2-15-20-3.2-3.0	13.9
	K2-10-15-3.2-3.0	21.9
	K2-15-20-3.0-2.6	10.6
	K2-10-15-2.6-2.6	15.3
	K2-15-20-2.6-2.3	8.0
	K2-10-15-2.6-2.3	12.3
	K2-8-12-2.3-2.3	15.3
	K2-12-18-2.3-2.0	7.4
	K2-8-12-2.3-2.0	12.1
	K2-6-9-2.0-2.0	16.1
	K2-10-15-2.0-1.8	7.2
	K2-6-9-1.8-1.8	12.6
	K2-10-15-1.8-1.6	5.6
	K2-7-10-1.8-1.6	8.7
	K2-5-7-1.6-1.6	12.7
	K2-8-12-1.6-1.4	5.5
	K2-5-7-1.4-1.4	9.3
	K2-9-13-1.6-1.2	3.9
	K2-6-9-1.4-1.2	5.6
	K2-4-6-1.2-1.2	8.5
	K2-6-9-1.2-1.0	3.8
	K2-4-6-1.2-1.0	6.2
	K2-3-4-1.0-1.0	8.6
	K2-4-6-1.0-0.9	4.7
	K2-3-4-1.0-0.9	7.2
	K2-4-5-1.0-0.8	4.3
	K2-3-4-0.9-0.8	5.5

Please refer to the following drawing when send us inquiry, if you don`t know the exact datas,please send us your requirement as more as possible,so that we can send you our advice and best designation:

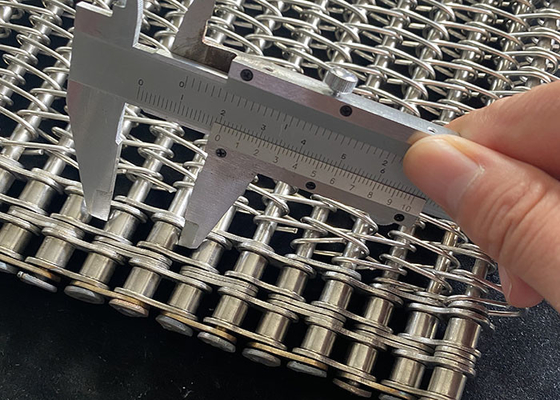

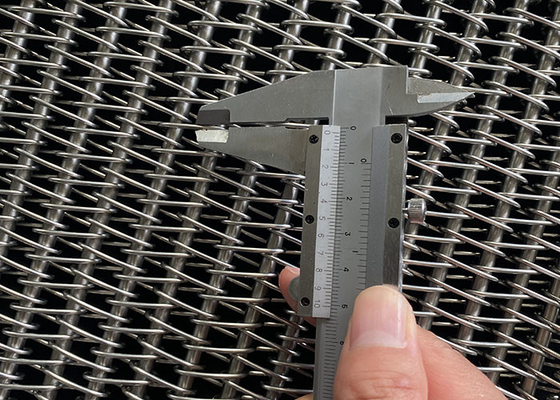

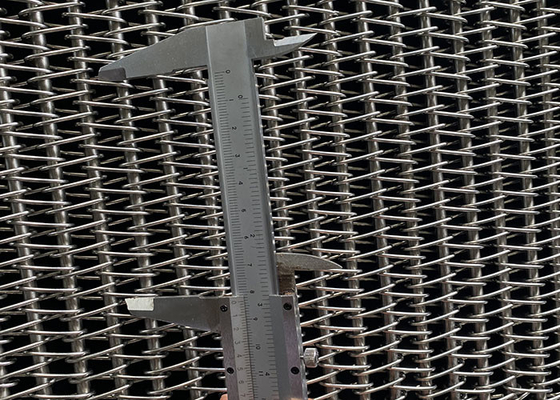

Metal Stainless Steel 304 Mesh Chain Conveyor Belt With Rod 1

Metal Stainless Steel 304 Mesh Chain Conveyor Belt With Rod 2
