Stainless Steel Large Holes Wire Mesh Conveyor Belt For Oven Dryer

Stainless Steel Large Holes Wire Mesh Conveyor Belt For Oven Dryer

Brand Name:	COMESH
Model Number:	COHE250307
MOQ:	5 meters
Price:	negotiable
Payment Terms:	L/C, T/T
Supply Ability:	1000 meters per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

FDA

Name:

Wire Mesh Conveyor Belt

Material:

Stainless Steel 304,galvanized Steel

Application:

Baking,drying,freezing.frying And So On

Feasures:

Big Opening Area,heavy Duty Loading Weight,stable Strucutre,straight Running

Sample:

Available For Testing

Flat Wire Size::

1.5X12.7mm,1.5X14.1mm,1.2X12.7 And So On

Rod Diameter:

3.0,4.0,5.0mm And So On

Width And Length:

Can Be Customized As Per Your Requirement

Packaging Details:

plywood case to make sure the shipping safty

Highlight:

Large Holes Wire Mesh Conveyor Belt

Stainless Steel Wire Mesh Conveyor Belt

oven dryer Wire Mesh Conveyor Belt

Product Description

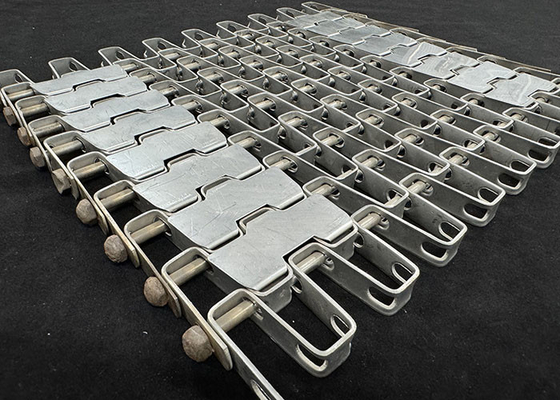

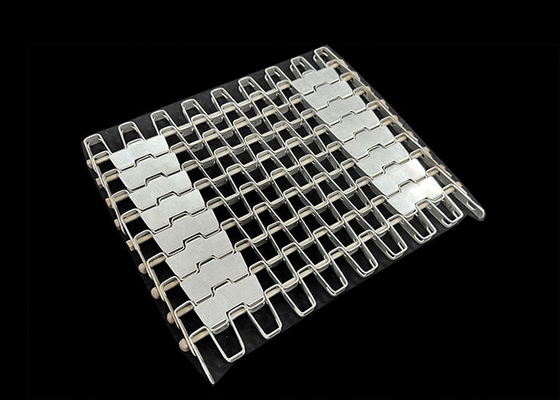

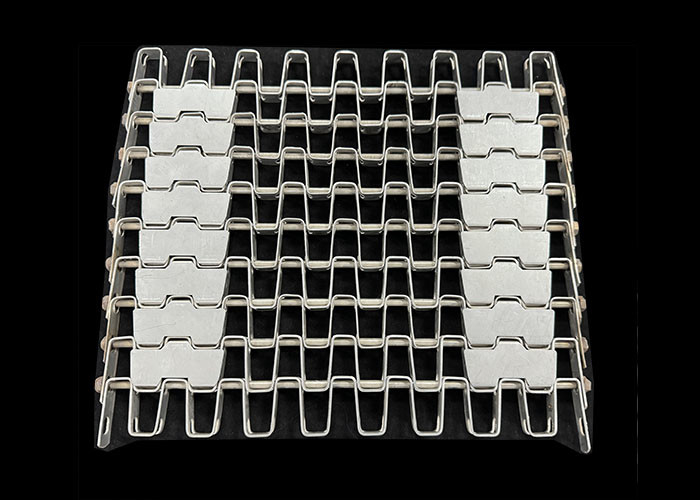

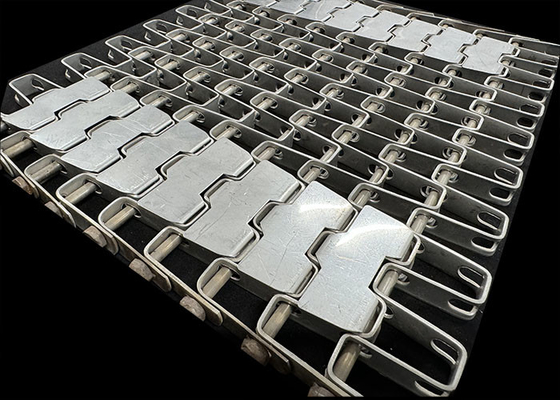

Stainless Steel Large Holes Wire Mesh Conveyor Belt for oven dryer

brief introduction of Stainless Steel Large Holes Wire Mesh Conveyor Belt for oven dryer

Stainless Seel Large Holes Wire Mesh Covneyor Belt is also called Honey Comb Conveyor Belts,which is an ideal choice for any application which requires both durability and an open belt design whilst maintaining a flat carrying surface.A large open area makes the honeycomb belt effective for processes such as washing, drying, cooling and cooking

Featrues of Stainless Steel Large Holes Wire Mesh Conveyor Belt for oven dryer

opening mesh construction which allows for quick drainage and free air circulation
easily cleaned and easily joined to save time
Positive driven for excellent belt tracking
Up to 81% open area for excellent flow through
flat surface of honeycomb conveyor belt supplies stable conveying during using

Application Stainless steel Large Holes Wire Mesh Conveyor Belt

casting
baking
free circulation drainage and air
packaging
washing
drying
cooling and freezing
Canning
recycling
weed clearing

type of this kind of mesh conveyor belt

Honeycomb Belt With Clinged Edges	Honeycomb belt with welded edges

Specifications of Stainless Steel Conveyor Belt:

Stainless Steel Large Holes Wire Mesh Conveyor Belt For Oven Dryer 2

Standard Specifications
specifications	Weight(KG/square meter)
FW-24.0-27.3-5.0-(1.5X12.7)	17.59
FW-28.0-27.4-5.0-(1.5X12.7)	19.74
FW-12.7-25.4-5.0-(1.5X12.7)	23.89
FW-12.7-25.4-5.0-(1.5X14.1)	26.09
FW-25.4-25.4-5.0-(1.2X14.1)	16.96
FW-12.7-25.4-5.0-(1.2X14.1)	22.01
FW-14.0-19.05-4.0-(1.2X12.0)	19.87
FW-24.0-27.3-3.0-(1.2X9.57)	9.06
FW-16.0-27.4-3.0-(1.2X9.5)	11.03
FW-15.0-27.0-3.0-(1.2X14.1)	16.58
FW-14.0-13.7-3.0-(1.2X9.5)	17.21
FW-24.0-27.3-5.0-(1.5X12.7)	16.01
The specification above is for reference,please contact with me to meet your unique special needs
