China Manufacturer Carbon Steel Wire Rolled Baking Oven Belt For Biscuit Baking Industries

China Manufacturer Carbon Steel Wire Rolled Baking Oven Belt For Biscuit Baking Industries

Brand Name:	COMESH
Model Number:	AIL
MOQ:	1pcs
Price:	negotiation
Payment Terms:	T/T
Supply Ability:	100pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Material:

Stainless Steel

Wire Diameter:

1.2mm / 1.5mm

Mesh Opening:

4.0mm

Belt Thickness:

2.1mm / 2.8mm

Spiral Pitch:

4.0mm / 4.5mm

Packaging Details:

plywood box

Highlight:

Carbon Steel wire mesh conveyor belt

Baking Oven wire mesh conveyor belt

Biscuit Baking wire mesh conveyor belt

Product Description

Carbon Steel Wire Rolled Baking Oven Belt For Biscuit Baking Industries

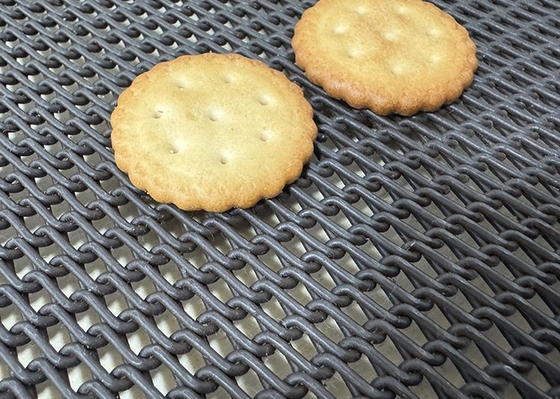

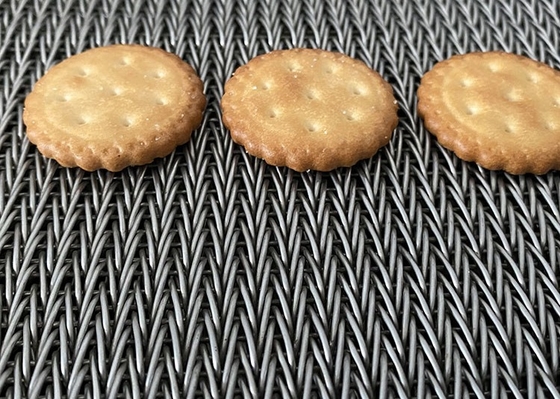

Rolled baking oven belt, also known in the industry as 'Z belts' or 'metal bands', is commonly used in large biscuit baking ovens or furnaces with long length and high speed, widely for baking all types of biscuits - crackers, cookies, filled cookies, hard sweet biscuits, short dough biscuits, sandwich biscuits, snack crackers, etc. It can be made with a belt width of more than 1.5 meter and length exceeds 300 meters.
Rolled baking oven belt is made of carbon steel wire coils(or stainless steel in some humidity conditions), which are linked
together and then compressed by heavy duty rollers for several times. This give a flat surface to the band with good flexibility. Light weight with high strength, good air circulation, even and steady heat transfer, low energy consumption, all make it the best alternative to your existing heavy multiple spiral belts.

Specification

Type	Z47	Z47R	Z48	Z28
Type	(F 4012)	(F 4015)	(F 6014)	(F 2510)
Wire Diameter	1.2 mm	1.5 mm	1.3 mm	1.0 mm
Tooling Pitch	8.2 mm	8.5 mm	8.2 mm	6.3 mm
Spiral Pitch	4.0 mm	4.5 mm	5.0 mm	3.5 mm
Belt Thickness	2.1 mm	2.8 mm	2.6 mm	2.0 mm
Weight per sqm	7.8 kg	11 kg	7.5 kg	6.3 kg
Maximum Belt Width	1550 mm	1550 mm	1550 mm	1550 mm

China Manufacturer Carbon Steel Wire Rolled Baking Oven Belt For Biscuit Baking Industries 0

uniform mesh structure
• welded edges
• carbon steel wire or stainless steel wire
• belt width more than 1550 mm
• small width tolerance
• easy belt cleaning

Z47(F4012) is the most frequently used type, mesh opening provide enough space for air circulation and heat transfer, commonly used in biscuit oven for high output, belt speed can be up to 30m/min.

Z47R(F4015) is essentially a Z47 belt with a more thick wire as 1.5mm, life is longer and mechanical performance is stronger, this means a higher heat energy need and drive force during baking process.

Z48(F6014) is specially used for baking thick and hard biscuit, with bigger mesh opening, it improve air circulation and heat transfer for biscuit baking.

Z28(F2510) is a belt with the most thin wire and smallest mesh opening, so it can save heat energy, suitable for lightweight and short baking oven or furnaces.

We are proud to say that we are the leader in China who can provide first-class rolled baking oven belt for customer in the baking industry worldwide!
