Heat Resistance Ultrathin Carbon Steel Flat Rolled Wire Mesh Baking Conveyor Belt For Biscuit Food Baking

Brand Name:	COMESH
Model Number:	CM-T111
MOQ:	5 m
Price:	USD35 to 50 / m
Payment Terms:	D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability:	3000 m per meter

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

FDA

Material:

Carbon Steel

Width:

Customized

Length:

Customized

Wire Diameter:

1.2mm 1.3mm 1.4mm 1.5mm

Tooling Pitch:

8.2mm 8.5mm

Spiral Pitch:

4.0mm 4.3mm 4.4mm 4.5mm

Belt Pitch:

5.2mm 5.4mm 6.7mm 6.8mm

Belt Thickness:

2.4mm 2.6mm 2.8mm 3.0mm

Packaging Details:

waterproof cloth

Highlight:

Ultrathin Wire Mesh Conveyor Belt

Heat Resistance Wire Mesh Conveyor Belt

Ultrathin Carbon Steel wire mesh belt

Product Description

Heat Resistance Ultrathin Carbon Steel Flat Rolled Wire Mesh Baking Conveyor Belt For Biscuit Food Baking

1 . Description :

- Flat rolled biscuit baking belts in straight feed through ovens.

- The rolled baking band is a stratified metal spiral belt with a lightweight and a reduced thickness. Its design gives the belt low heat inertia, high strength, and good air circulation through the belt. This woven and stratified belt gives a superposition of the wires and an open mesh. The edges are looped.

- Biscuit food baking conveyor belt is made of specially selected Carbon Steel for a good and even baking result and are mostly used in production processes with temperatures of +200ºC to +275ºC. On request the belt can be made of stainless steel.

- The rolled baking oven belt are used in biscuit ovens all over the world. The most used and well known Z-belt is the ‘Z-47’. Beside this Z-47 there are also other Z-specifications. The different Z-types differ in wire thickness, mesh opening and weight.

2. Specification :

Item No.	Tooling Pitch	Wire Diameter	Spiral Pitch	Belt Pitch	Belt Thickness	Weight kg/m2
CM-168	8.2mm	1.2mm	4.0mm	5.4mm	2.4mm	7
CM-169	8.5mm	1.5mm	4.5mm	5.2mm	3.0mm	12.2
CM-170	8.2mm	1.3mm	4.3mm	6.8mm	2.6mm	7.4
CM-171	8.2mm	1.4mm	4.4mm	6.7mm	2.8mm	8.2

3. Feature :

- It can be customized as per your requirement.

- High working temperature.

- Long service time.

4. Application :

It is professional used for oven baking biscuit.

5. Packing & Delivery :

1) Packing:

PP bag inside, and then plywood case outside.

Heat Resistance Ultrathin Carbon Steel Flat Rolled Wire Mesh Baking Conveyor Belt For Biscuit Food Baking 1

2) Delivery :

It can be shipped by sea or air, or express, such as TNT DHL FEDEX UPS SF etc, and we also can provide you with DDP service.

6. Product Shows :

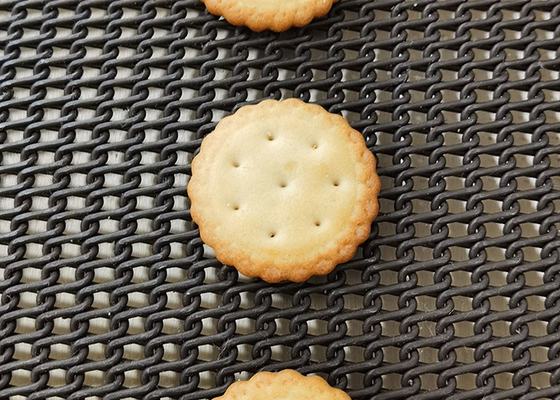

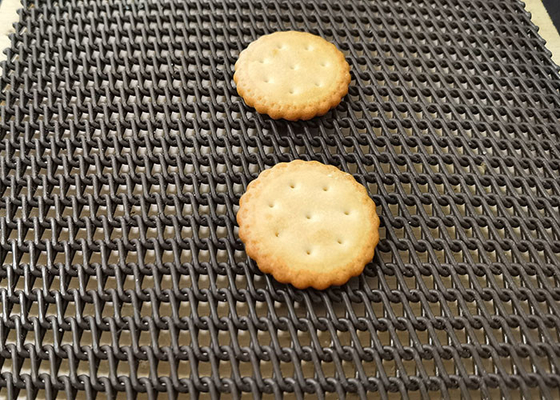

Heat Resistance Ultrathin Carbon Steel Flat Rolled Wire Mesh Baking Conveyor Belt For Biscuit Food Baking 2

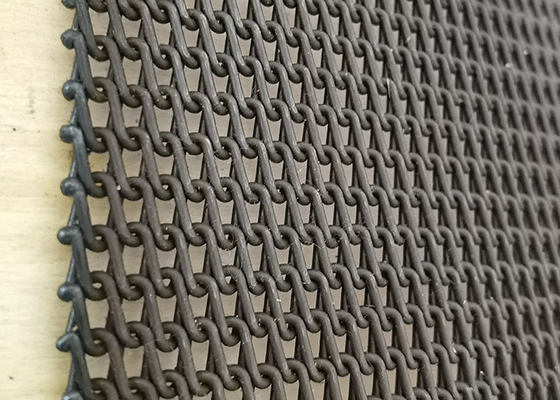

Heat Resistance Ultrathin Carbon Steel Flat Rolled Wire Mesh Baking Conveyor Belt For Biscuit Food Baking 3
