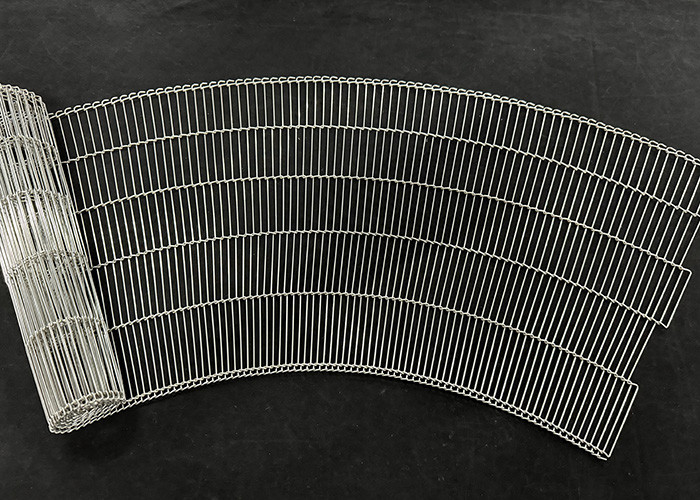

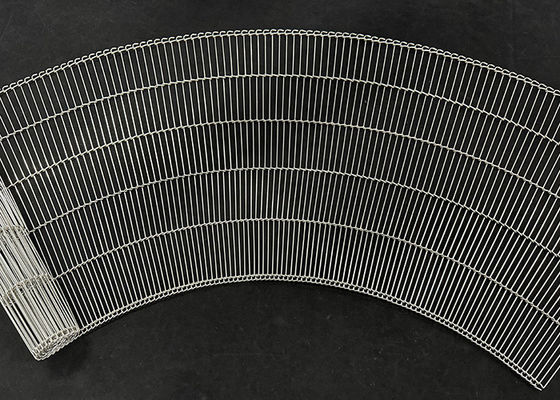

304 316L Stainless Steel Curve Mesh Belt Ladder Conveyor Belt

304 316L Stainless Steel Curve Mesh Belt Ladder Conveyor Belt

Introduction

Flat Flex Conveyor Belts also known as Rod Network Conveyor Belts, or Enrober conveyor belts, are distinguished by their unique construction and versatile applications. These belts are constructed from a series of looped wires that interlock with one another, creating a flexible and robust mesh. The simple structure makes it economical and lightweight. It can help to save costs and reduce downtime.

The flat flex conveyor belts have an open structure (70 – 86 % open) and are frequently used in cooling, baking, drying, heating, decorating, battering and packing machines for light products. The flat flex conveyor belts can be made for straight conveyors and for curve conveyors.

We can not only provide right belts, but also provide matching sprockets and other components.

Edge Availability

Flat flex conveyor belts are available in three edge Loop Types.
1. With a C-shaped Edge, reduce the ratio of catching and tangling by the belt edge.
2. With a Single Loop Edge, the most popular wire mesh belt edge finish. It is available for wire diameter 1.27 mm or above
3. With a Double Loop Edge, supplied for enrober belts.

Specifications

Feature

● The largest proportion of open-mesh area available up to 86%
● Easy to clean, clean-in-place design
● No-slip, positive drive
● Very low belt mass
● Smallest diameter end rolls and drive rolls
● Positive driven for accurate tracking
● Curved rod network belt to suit different machines

Application

Flat flex conveyor belts find application in a wide range of industries due to their versatility and durability. Here are some common applications of flat flex conveyor belts:

Cleaning and Sanitizing Systems: The open structure of flat flex conveyor belts allows for easy cleaning, making them well-suited for applications where frequent sanitation is required, such as in the pharmaceutical and food industries.

Drying and Cooling: The airflow provided by the open design of flat flex conveyor belts makes them ideal for applications that involve drying or cooling processes, such as in the textile industry or in the production of electronics.

General Material Handling: These belts are also used in general material handling applications where a strong, flexible, and reliable conveyor solution is needed to transport items in a smooth and efficient manner.

Overall, flat flex conveyor belts are valued for their adaptability to different environments, ease of maintenance, and ability to handle a variety of products, making them a popular choice across multiple industries.
