Factory In China Corrosion And High Temperature Resistance 304 Stainless Steel Wire Mesh Ladder Conveyor Belt

Product Details

Place of Origin: China

Brand Name: COMESH

Model Number: AIL

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: negotiation

Packaging Details: plywood box

Delivery Time: 5-8days

Payment Terms: T/T

Supply Ability: 100pcs per week

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                    Corrosion Resistance Wire Mesh Conveyor Belt, High Temperature stainless steel mesh belt, 304 ss wire mesh conveyor belt


Material:	Stainless Steel	Width:	30cm-3m
Wire Diameter:	0.5-2mm	Chain Pitch:	50.8mm, 25.4mm, 101.6, 15.08mm
Color:	Silver	Used:	Drying ,cooling , Baking

Material:	Stainless Steel
Width:	30cm-3m
Wire Diameter:	0.5-2mm
Chain Pitch:	50.8mm, 25.4mm, 101.6, 15.08mm
Color:	Silver
Used:	Drying ,cooling , Baking

Product Description

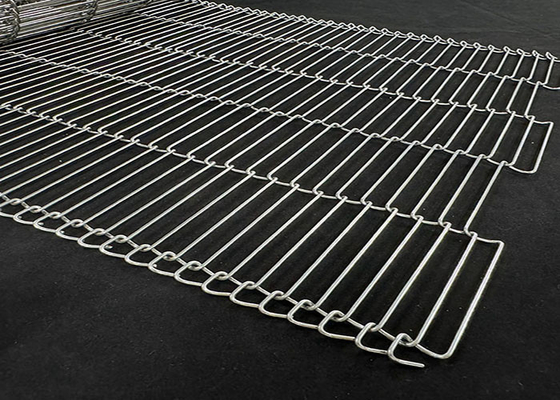

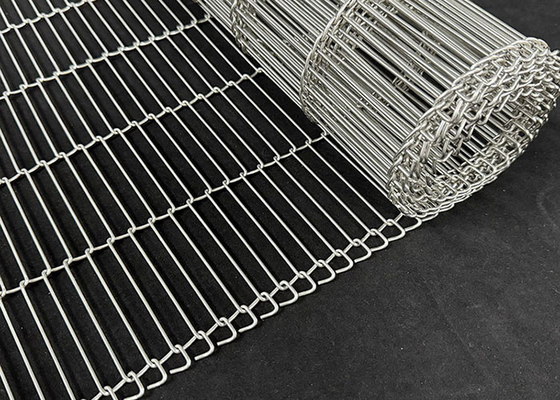

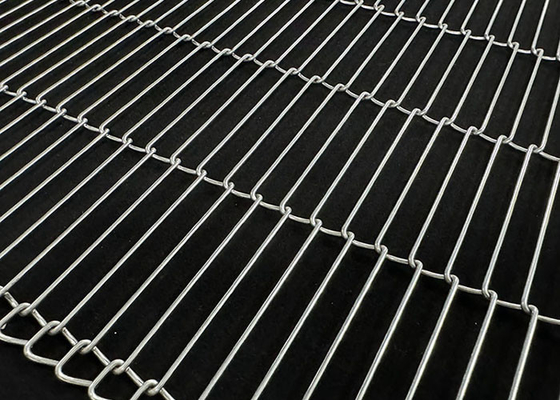

Ladder WIRE MESH CONVEYOR BELT INTRODUCTION

Ladder conveyor belts are usually gear transmission belt, with good ventilation advantages, tension evenly, fine workmanship, the flat flex belts with a flexible rotation, good stability, High temperature, pressure resistance, corrosion resistance, long life and so on.
Flat flex conveyor belts are used with a single-layer structure, lighter, the use of sprocket drive. Large open area (opening 70-85%), often used in the lighter weight of the product cooling, frying, baking, drying, heating, decoration, wrapped powder and packaging equipment.

If you want to order, please tell me the data marked on the drawing

Specification

Stainless steel wire mesh conveyor belt, pizza oven chocolate enrober ladder conveyors
Materials	Stainless steel wire 304, 316 316L 310s etc
Wire diameter	1mm, 1.2mm, 1.5mm, 1.6mm, 1.8mm, 2mm, 2.5mm, 2.8mm. Customized
Chain Pitch	5mm, 6mm, 7mm, 10mm. we can do it according your requirement
Space number	Generally it is singular, please kindly tell us the number.
Width	150-5500mm. Customized
Operating temperture	-40ºC-1200ºC
Edge treatment	single loop edge, double loop edge, c shape edge

Material	carbon steel, SUS 201 304 316
Wire diameter	1 to 3 mm
Rod diameter	4 to 12 mm
Spiral wire pitch	3 to 20 mm
Chain pitch	19.05mm 25.4mm 31.75mm 38.1mm 50.8mm 76.2mm or customized
Width	0.2m to 4m
Rod pitch	5 to 30 mm

Factory In China Corrosion And High Temperature Resistance 304 Stainless Steel Wire Mesh Ladder Conveyor Belt

Wire Mesh Conveyor Belt Features

1.Smooth surface with various shape.
2. Long using life .
3.Rust resistance .
4. Corrosion resistance is strong.
5.High strength, heat & erode- resistant.
6.The capability of flexible and enduring.
7.Permeability is well,not easy to out of shape.

Product Application

- Equipment for blanching vegetables and potatoes.
- Pasteurisation tunnels for the canning industry and breweries.
- Dryers, fryers and baking ovens for french fries and snacks.
- Cooling and freezing tunnels for potatoes, french fries, vegetables, meat, fish and bakery products.
- Industrial washing and drying tunnels.
- Food processing
- Confectionery
- Baking

Factory In China Corrosion And High Temperature Resistance 304 Stainless Steel Wire Mesh Ladder Conveyor Belt

How to get exact price?
You would better advise us the conveyor belt specifications as below:
1,Spiral wire and Rod wire
2,Spiral pitch and Rod pitch
3,The overall length and width
If you don't have the exact data, please advise us your application, we can recommend you the best suitable product.
