| Material: | Stainless Steel 304 | Width: | 120 Cm , Or Customized |
|---|---|---|---|
| Length: | 15 M , Or Customized | Wire Diameter: | 1.2 Mm , Or Customized |
| Rod Diameter: | 5 Mm , Or Customized | Spiral Pitch* Cross Wire Pitch: | 5 Mm * 8 Mm , Or Customized |
| Rod Pitch: | 76.2 Mm , Or Customized | Chain Pitch: | 19.05mm, 25.4mm, 31.75mm, 38.1mm, 50.8mm, 76.2mm |
| High Light: | 304SS metal mesh conveyor belt,Metal Mesh Conveyor Belt 120cm,steel mesh conveyor belt 120cm |
||

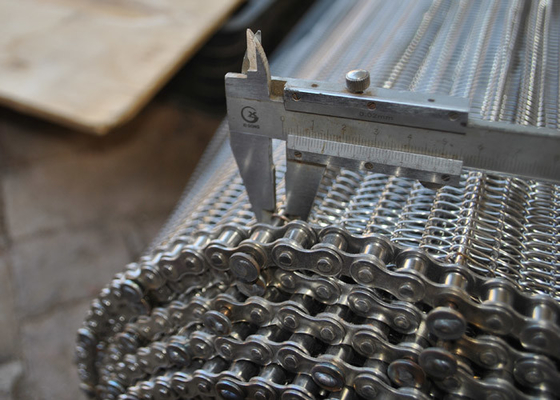

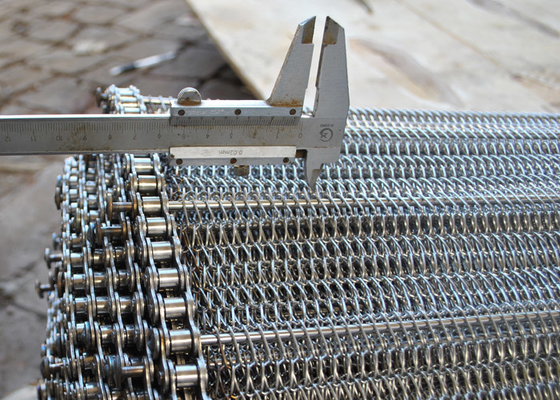

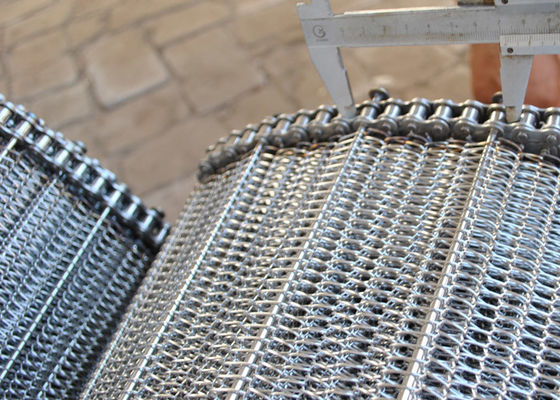

Food Grade 304 Stainless Steel Compound Balanced Spiral Wire Mesh Conveyor Belt For Baking Washing Cooling
1. Description :
The conveyor belt can be customized as per your your requirement. Pls advise the specs before making best offer. If you can not confirm it, pls advise the width, length, loading weight, the size of item which are conveyed and working temperature, so that we provide you with the available specification and price.
2. Specification :
| Material | stainless steel 304, or stainless steel 316 316L, carbon steel |
| Width | 120 cm , or customized |
| Length | 10 m , or customized |
| Spiral / cross wire diameter | 1.2 mm , or customized |
| Rod diameter | 5 mm , or customized |
| Spiral pitch | 5 mm , or customized |
| Cross wire pitch | 8 mm , or customized |
| Rod pitch | 76.2 mm , or customized |
| Chain pitch | 19.05mm, 25.4mm, 31.75mm, 38.1mm, 50.8mm, 76.2mm, etc |
3. Applications :
* Food industry: often used in light weight products processing - frying, freezing, heating, cooling, cooking, drying, baking, coating, enrobing and sterilization for desserts, pizza, vegetables, bread, flour cakes, meat, fish, candy, potatoes, biscuits, chocolate, nuts, fruit, etc. Like chocolate enrobing, battering and breading, freezing for seafood processing, frying chickens, cooling wafer after coating, pizza baking.
* Electronics industry: printed circuit board required minimum contact support, melting, sold or drying welding.
* Caps making industry: drying for drop plastic
* Others, like textiles, glass heat treatment, printing and dyeing, radio, scientific research applications.
4. Available materials :
1) AISI 314 (1150°C)
2) SUS 310S (1090°C)
3) SUH 330 (1150°C)
4) SUS 304 (870°C)
5) Super alloy Cr20Ni80 (1250°C) electrical furnace wire
6) SUS 321 (750°C)
7) SUS 410 (700°C)
8) SUS 430 (700°C)
9) Various metal materials as per your requirements
5. Packing & Delivery :
Packing: PP bag inside, and then wooden case outside.
Delivery: it can be shipped by sea or air, express, such as DHL FEDEX TNT SF UPS,etc
