Product Details:
Payment & Shipping Terms:
|
Material: | SS304,316,carbon Steel | Advantage: | High Temperature Resistant Under 180 Degree |
---|---|---|---|
Hot Search: | Wire Mesh Conveyor Belt | Style: | Chain Conveyor Belt |
Edge: | With Chain/ No Chain | Name: | Food Grade 304 Stainless Steel Chain Link Spiral Wire Mesh Conveyor Belt |
Spiral Pitch:: | 3-50mm | Diameter: | 0.5-5mm |
High Light: | 5mm weave wire mesh belt,weave wire mesh belt Rustproof,0.5mm chain mesh conveyor belt |
Stainless steel chain spiral conveyor belt metal balance weave wire mesh belt conveyor mesh belt
Applicaiton:
1) Widely used in solar power, mine, metallurgy, petroleum, chemical, food, pharmeceuticals, glass, printing and machine making industries;
2) Heat treament, drying, cooling, refrigerating, cleaning, dehydration, sintering, transportation, material handling, steaming, filtering, sludge draining, printing, etc.
3) Used in sintering furnace, annealing furnace, continuous tunnle furnace, travelling furnace, high-temperature furnace, production line, etc

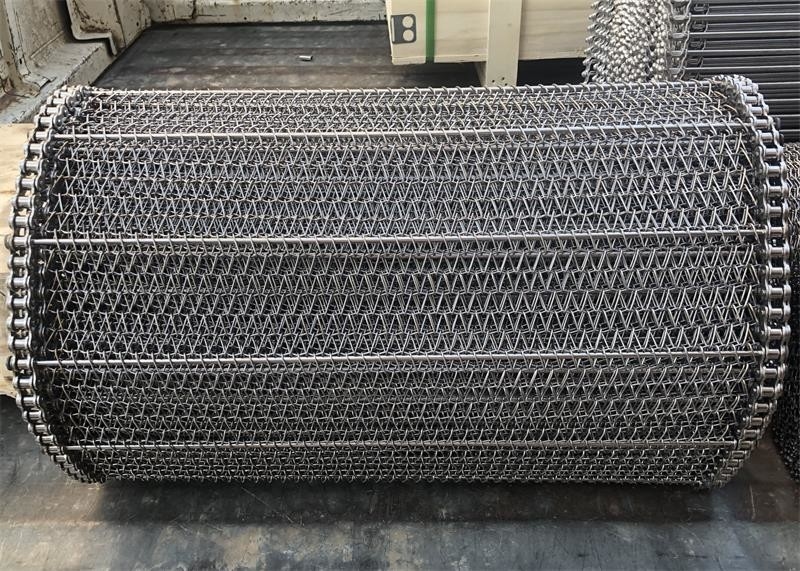

Stainless Steel Chain Link Mesh Conveyor Belt is driven with a cross rod which connects the chain strands by either passing through or under the wire mesh fabric. The density of wire mesh fabric is choosen according to size of the product conveyed on the belt.Chain-type mesh belt: Chain-driven conveyor belt is generally driven by the chain of small shaft and then drive the belt to run. Mesh belt are used to wear a string, about two lines of the network, and the size of the network connected from the large network into the small shaft, the small shaft into the chain of two ends of the hole, so as to achieve the chain drive conveyor belt. Chain net drive smooth, small transmission torque.
Feature:
Advantage:
material | stainless steel 304,201,316,galvanized iron wire,SAE, |
datas | spiral wire diameter,string wire diameter,pitches of spiral wire,string wire,rod daimeter,width and length |
requriement | such as working temperature,loading weight,transport way,etc |
size of the belt | wide and length can be designed according to customer`s requriement. |
You can according to the following picture and tell me your specification
