1mm Wire Mesh Conveyor Belt Stainless Steel Balanced Weave Spiral For Baking

1mm Wire Mesh Conveyor Belt Stainless Steel Balanced Weave Spiral For Baking

Brand Name:	Comesh
Model Number:	COM-A
MOQ:	1 Meter
Payment Terms:	L/C, D/A, D/P, T/T, Western Union,
Supply Ability:	5000 Meters Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

SGS

Material:

Stainless Steel 304 316 Or As Your Request

Wire Diameter:

1mm - 3mm

Length:

10 - 30m / Roll

Width:

As Per Order

Sample:

Available

We Are Factory:

Yes

Packaging Details:

Plastic Bag And Plywood Case

Highlight:

1mm wire mesh conveyor belt

baking wire mesh conveyor belt

baking balanced weave conveyor belt

Product Description

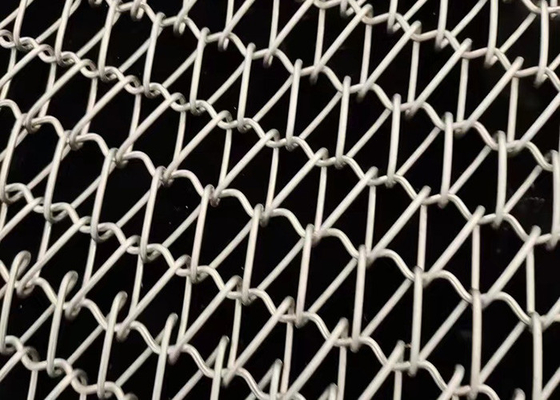

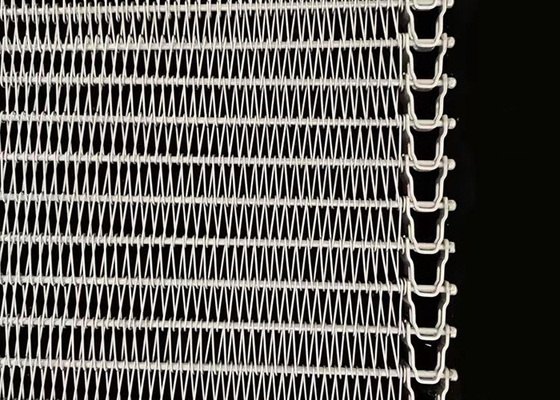

Stainless Steel Balanced Weave Wire Mesh Spiral Conveyor Belt For Baking

Introduction

Balanced weave conveyor belt is a stainless steel balanced woven belt with left and right-hand wound spirals, connected by crimped cross wires. At the sides of the belt, the cross wire is welded to the spiral wire. Balanced weave belts can be used for a virtually infinite number of applications. Ranging from super strong for conveying heavy loads over large widths or conveying very hot products to very dense weaves for small products, unsorted goods or products requiring stable support.

Balanced weave conveyor belt can be used in the temperature range of -50º to + 1350ºC. The length and width of the conveyor belt can be customized according to demand.

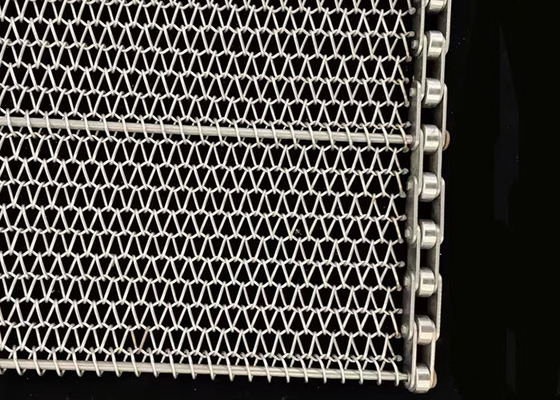

The stainless steel balanced weave conveyor belts can additionally be equipped with edge plates and flights. The pins can be bent upwards in some belt types of the spiral wire link belts which will create a standing edge.

Specifications

Material	Stainless steel 304 316 or as per order
Wire Diameter	1mm - 3mm.Special wire diameter is available
Pitch	4.24mm - 20.32mm.Other pitches can be customized.
Barrier	The shape and size can be customized
Sample	Sample can be produced according to your requirements

Feature

● Excellent strength to weight ratio but with maximum flexibility.
● High temperature resistance, anti-corrosion and anti-rust, resistant to acid and alkaline.
● Stable product conveying without slipping, griping and jamming, good air circulation.
● Side board can be added to prevent products from falling down to the ground.
● Complying with food safety standards such as FDA, GMP and others up your request.
● Durable, low maintenance cost, quick and easy install and replacement.

Application

Balanced weave conveyor belts are the most versatile and widely used metal conveyor belts, thanks to their characteristics of true travel, good flexibility, excellent strength-to-weight ratio, flat surface and minimal maintenance. These belts are typically friction driven and are popular for conveying a variety of products, particularly those that are small or need a lot of support. Food processing spiral wire link conveyor belts are typically used in product transfer and in baking applications. Balanced Spiral Woven Belts can also be used in industrial product processing, transfer and packaging applications.

1mm Wire Mesh Conveyor Belt Stainless Steel Balanced Weave Spiral For Baking 0
