| Material: | Stainless Steel 304 Or 316 | Width: | 520mm, Or Customized |
|---|---|---|---|
| Length: | Customized As Per Your Requirement | Wire Diameter: | 0.8mm 0.9mm 1.0mm 1.2mm 1.5mm 2.0mm,etc |
| Spiral Pitch: | 8mm, Or Customized | Rod Diameter: | 5mm, Or Customized |
| Rod Pitch: | 19.05mm 38.1mm 50.8mm Etc | Chain Pitch: | 19.05mm, 25.4mm, 31.75mm, 38.1mm, 50.8mm, 76.2mm |
| High Light: | 1.5mm ss wire mesh conveyor belt,corn ss wire mesh conveyor belt,biscuits metal mesh conveyor belt |
||
Commercial 304 316 Stainless Steel Spiral Wire Mesh Oven Conveyor Belt With Chain Link For Corn Chips Biscuits
1. Feature :
1) The material is food grade stainless steel 304 or 316, which is very safe for using, and long time service time.
2) The specification can be customized as per your requirement. If you can not confirm all the datas, you can only provide us with the width, length, application, loading weight, and then we will send you the available specs.
3) The surface treatment can be polished.
2. Specification :
| Material | stainless steel 304 or 316 |
| Width | 520mm |
| Length | customized as per your requirement |
| Wire diameter | 1.6mm, or customized |
| Rod diameter | 5mm, or customized |
| Spiral pitch | 8mm, or customized |
| Rod pitch | 19.05mm 38.1mm 50.8mm etc |
| Chain pitch | 19.05mm, 25.4mm, 31.75mm, 38.1mm, 50.8mm, 76.2mm |
3. Applications :
Food industry: often used in light weight products processing - frying, freezing, heating, cooling, cooking, drying, baking, coating, enrobing and sterilization for desserts, pizza, vegetables, bread, flour cakes, meat, fish, candy, potatoes, biscuits, chocolate, nuts, fruit, etc. Like chocolate enrobing, battering and breading, freezing for seafood processing, frying chickens, cooling wafer after coating, pizza baking.
Electronics industry: printed circuit board required minimum contact support, melting, sold or drying welding.

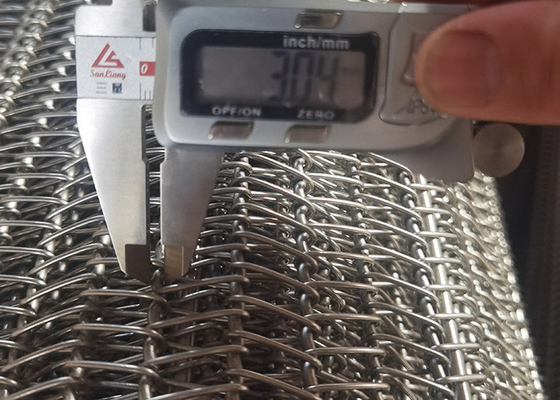

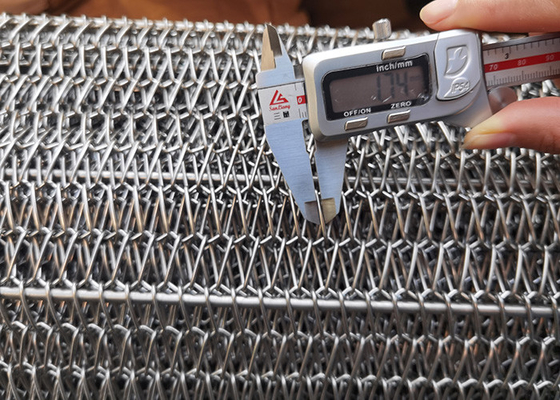

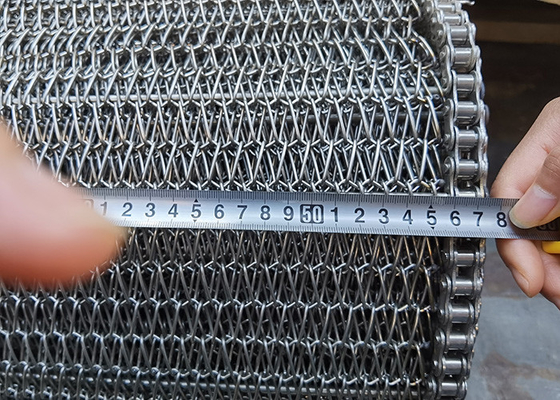

4. Product Show :
5. Packing & Delivery :
1) Packing: PP bag inside, and then wooden case outside.
2) Delivery: It can be shipped by sea or air, express, such as DHL TNT Fedex EMS etc.
