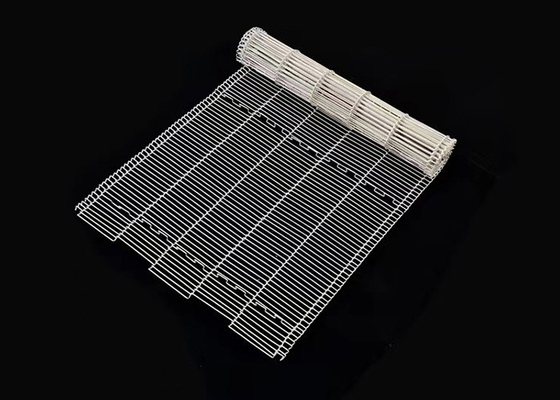

Manufacturer Stainless Steel Flat Flex Wire Mesh Conveyor Belt For Chocolate
Introduction
Flat flex conveyor belt is the simplest type among all type of stainless steel mesh conveyor belt. The materials of flat flex conveyor belt are stainless steel, carbon steel, galvanized steel and other steel wires.The simple structure make it economical and lightweight. It can help to save cost.
Flat Flex Conveyor Belts are used in many industries. The belts have a lightweight single-layer construction and are positively driven by sprockets. Flat Flex Conveyor Belts are made of stainless steel wire of spring wire. Wire diameters vary from 0.8 to 3.0 mm. Pitches from 4 mm until 2000 mm, and belt widths from 10 mm until 3 meters, also we can make all the (non-standard) dimensions too.
The Flat Flex Conveyor Belts have an open structure (70 – 86 % open) and are frequently used in cooling, baking, drying, heating, decorating, battering and packing machines for light products. The Flat Flex Conveyor Belts can be made for straight conveyors and for curve conveyors.
We can not only provide right belts, but also provide matching sprockets and other components.

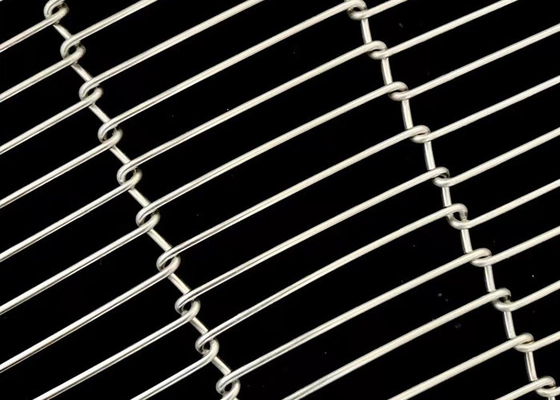

The flat flex conveyor belt can be formed into different edge types, which can suit different equipment and driven types. You can choose the perfect one type for you.
● Single loop edge.
● Double loop edge.
● C-shaped loop edge.
Specifications
| Material | Stainless steel 304 316 or as per order |
| Wire Diameter | 1mm - 3mm.Special wire diameter is available |
| Pitch | 4.24mm - 20.32mm.Other pitches can be customized. |
| Barrier | The shape and size can be customized |
| Type | Single loop and double loop |
| Sample | Sample can be produced according to your requirements |
Feature
● Large open area.
● Economical.
● Light weight.
● High temperature resistance.
● Good air circulation.
● Easy to clean and save maintenance cost.
● Durable and long lifespan.
● Different edges for choice.
● Barriers can be added onto the belts.
● Chain link and other driven types.

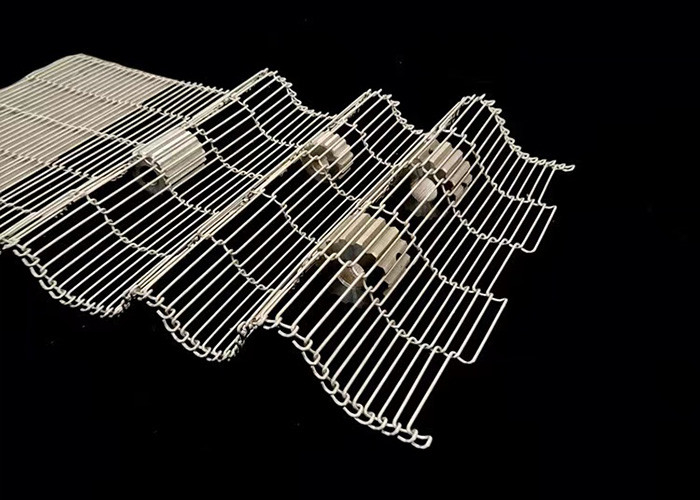

● Curved rod network belt to suit different machines.
Application
● The largest proportion of open-mesh area available up to 86%
● Easy to clean, clean-in-place design
● No-slip, positive drive
● Very low belt mass
● Smallest diameter end rolls and drive rolls
● Positive driven for accurate tracking
● Curved rod network belt to suit different machines
