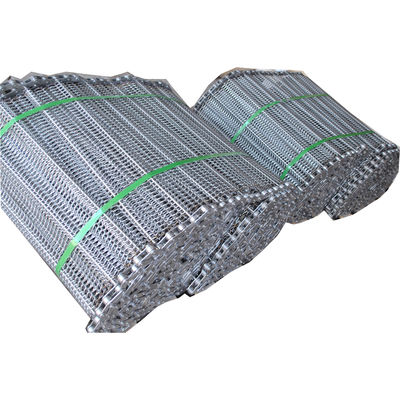

201 Resistance High Temperature Oven Spiral Conveyor Belt

201 Resistance High Temperature Oven Spiral Conveyor Belt
201 Resistance High Temperature Oven Spiral Conveyor Belt 201 Resistance High Temperature Oven Spiral Conveyor Belt 201 Resistance High Temperature Oven Spiral Conveyor Belt 201 Resistance High Temperature Oven Spiral Conveyor Belt

Large Image :  201 Resistance High Temperature Oven Spiral Conveyor Belt

Product Details:
Place of Origin: Hebei,China
Brand Name: COMESH
Certification: SGS
Model Number: COMESH-Ang
Payment & Shipping Terms:
Minimum Order Quantity: 3 meters
Price: Negotiable
Packaging Details: Plastic bag inside and plywood case outside or according to your need.
Delivery Time: 7-15 work days
Payment Terms: L/C, T/T, Western Union, ,Paypal,Trade assurance
Supply Ability: 600 meter per month
Detailed Product Description
Material: 201,304 ,316 Stainless Steel,carbon Steel Process Customized: Yes
Advantage: Smooth Traffic Hot Search: Wire Mesh Conveyor Belt
Style: Chain Wire Mesh Belt Edge: Chain Or Sprocket
Application: Protecting Mesh Technique: Woven
Sample: Available Name: Stainless Steel Conveyer Belt Mesh
High Light:

201 stainless steel mesh belt

,

resistance high temperature spiral conveyor belt

,

oven spiral conveyor belt

resistance high temperature stainless steel spiral wire mesh conveyor belt for for oven





Description :

Chain wire mesh belt is the conveyor mesh belt drived by chains,geneally use the chain drive the small shaft and then use the small shaft drive the belts.Belts is made up by crimped wire rod,two left and right belt rod which also can be big rod and small rod.the small shaft insert to big belt rod,and the other end of small shaft insert to chain's hole,in this way the belt can be driven by chains,the chain wire mesh belt running smoothly and the transmission torque is small..

Features of resistance high temperature stainless steel spiral wire mesh conveyor belt for for oven:

  • The belt is produced using right and left spiral connecting and crimped connecting rod to form balance weave ,which is tracking streight.
  • This kind of spiral wire link belt is the most widely used mesh belt.
  • Spiral wirelink belt can conveyor goods from big size or very hot to very small size ,unsorted who need stable support because of its adjustable openning size
  • The round end of spiral wirelink belt allow goods on it transfer to the following stage processing very easily.
  • spiral wirelink belt is also can be used to transport in glass furnace,at the same time, it can be use as decorative dividers in architecture and safty curtain

Advantage of wire mesh conveyor belt:

  • Because chain is driven by sprocket meandering does not occur
  • Various types of chain can be applied by adjusting by adjusting belt pich
  • It is easy to attach side guard and product stopper in combination with chain and stay.
201 Resistance High Temperature Oven Spiral Conveyor Belt 0 Step-cut round tod stay pin is fitted to chain at both sides,and thickess of spiral is adjusted so that round rod passed inside spiral.





Before sending inquiry ,the following wire mesh belt information need to be told:



material



stainless steel 304,201,316,galvanized iron wire
datas spiral wire diameter,string wire diameter,pitches of spiral wire,string wire,rod daimeter,width and length

requriement



such as working temperature,loading weight,transport way,etc

size of the belt



wide and length can be designed according to customer`s requriement.

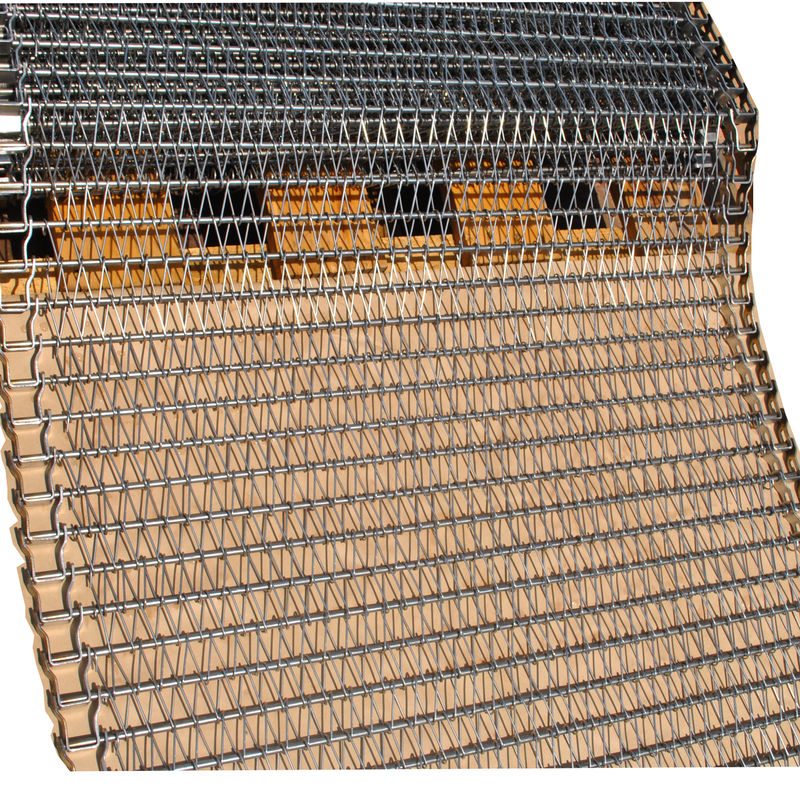

201 Resistance High Temperature Oven Spiral Conveyor Belt 1

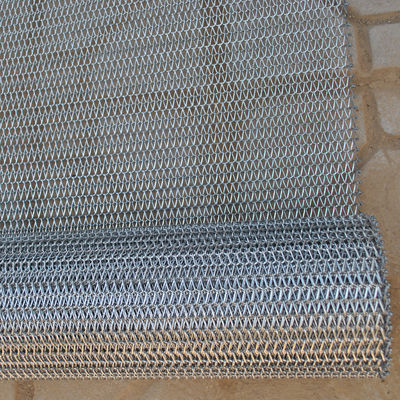

201 Resistance High Temperature Oven Spiral Conveyor Belt 2





Applications of wire mesh conveyor belt:

  1. Tunnel oven belts
  2. Glass and ceramics onen belts
  3. Metal parts conditioning and annealing belts
  4. Small parts processing belts
  5. In petroleum,metallurgy food machinery cooling,freezing,cleaning.

201 Resistance High Temperature Oven Spiral Conveyor Belt 3



Species of Stainless steel conveyer belt mesh:

We have some kinds of balanced spiral wire mesh conveyor belt.

  • With chain conveyor belt
  • Frozen conveyor belt
  • Balanced conveyor belt
  • Double balanced conveyor belt
  • Encrypted conveyor belt (compound conveyor belt)

201 Resistance High Temperature Oven Spiral Conveyor Belt 4

packing:

Kraft paper or plastic blister film inner package, then paper box or wooden cartons for outer package,

try to save space to make compact package.



201 Resistance High Temperature Oven Spiral Conveyor Belt 5





Anping County Comesh Filter Co.,Ltd, which is established in 1987,now Comesh is one of the biggest material supplier which
services food processing industries,such as food baking,drying and freezing,sterilizing,fruit and vegetable drying ,
washing and filtering.
Comesh`s main products are Stainless Steel Trays and baskets,Stainless Steel Mesh Conveyor Belt, also supplies

kitchen products such as chainmail scrubber for cast iron pans.
Products customization is our advantage.We will serve you sincerely.

201 Resistance High Temperature Oven Spiral Conveyor Belt 6
