Baking And Cooling SGS Ss304 Chain Mesh Conveyor Belt

Brand Name:	COMESH
Model Number:	Comesh-CAR
MOQ:	5 meter
Payment Terms:	L/C, T/T, Western Union, ,Paypal,Trade assurance
Supply Ability:	300 meter per month

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

SGS

Material:

SS304,316,310

Process Customed:

Yes

Advantage:

High Temperature Resistant

Hot Search:

Wire Mesh Conveyor Belt

Style:

Chain Conveyor Belt

Edge:

With Chain/ No Chain

Name:

Stainless Steel Chain Wire Mesh Spiral Conveyor Belt For Baking And Cooling

Technique:

Welded

Size:

Customized Size

Key Words:

Chain Wire Mesh Spiral Conveyor Belt

Packaging Details:

Plastic bag inside and plywood case outside or according to your need.

Highlight:

ss304 chain mesh conveyor belt

ss304 steel mesh conveyor belt

SGS chain mesh conveyor belt

Product Description

Stainless Steel Chain Wire Mesh Spiral Conveyor Belt For Baking And Cooling

Advantage :

Has resistance to acid, alkali, wear and tear and low and high temperatrure;
Has good conveying function, break resistance as well as antioxidation;
With professional design and compact form, it is easy to install and steadily run without deflection

Features :

The belt is produced using right and left spiral connecting and crimped connecting rod to form balance weave ,which is tracking streight.
This kind of spiral wire link belt is the most widely used mesh belt.
Spiral wirelink belt can conveyor goods from big size or very hot to very small size ,unsorted who need stable support because of its adjustable openning size
The round end of spiral wirelink belt allow goods on it transfer to the following stage processing very easily.
spiral wirelink belt is also can be used to transport in glass furnace,at the same time, it can be use as decorative dividers in architecture and safty curtain

Description:

Chain-type mesh belt: Chain-driven conveyor belt is generally driven by the chain of small shaft and then drive the belt to run. Mesh belt are used to wear a string, about two lines of the network, and the size of the network connected from the large network into the small shaft, the small shaft into the chain of two ends of the hole, so as to achieve the chain drive conveyor belt. Chain net drive smooth, small transmission torque.

Application:

Glass and ceramics onen belts
Metal parts conditioning and annealing belts
Small parts processing belts
In petroleum,metallurgy food machinery cooling,freezing,cleaning

Specification:

material	stainless steel 304,201,316,galvanized iron wire,SAE,
datas	spiral wire diameter,string wire diameter,pitches of spiral wire,string wire,rod daimeter,width and length
requriement	such as working temperature,loading weight,transport way,etc
size of the belt	wide and length can be designed according to customer`s requriement.

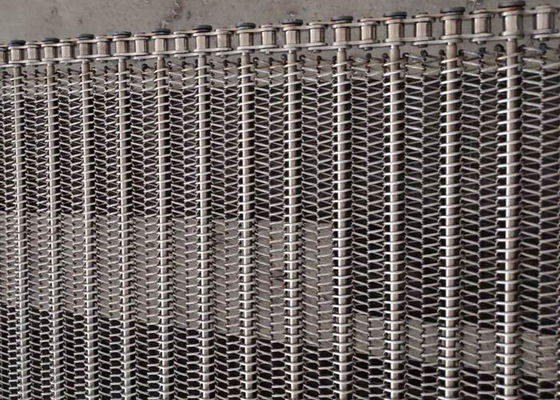

Baking And Cooling SGS Ss304 Chain Mesh Conveyor Belt 0

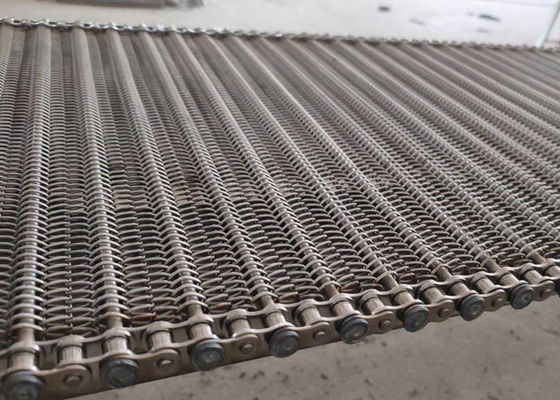

Baking And Cooling SGS Ss304 Chain Mesh Conveyor Belt 1

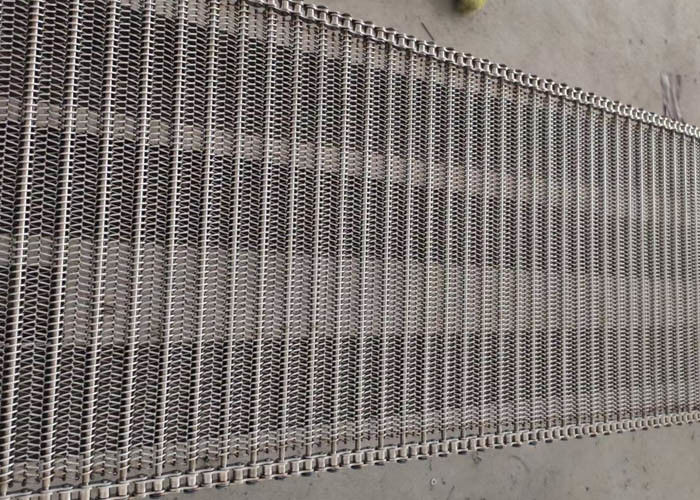

Baking And Cooling SGS Ss304 Chain Mesh Conveyor Belt 2
