Home > Products > Wire Mesh Conveyor Belt > Freezing Fish Food Grade Spiral 2.0mm Chain Driven Conveyor Belt

Freezing Fish Food Grade Spiral 2.0mm Chain Driven Conveyor Belt

Name: Freezing Fish Food Grade Spiral 2.0mm Chain Driven Conveyor Belt
Brand: Anping County Comesh Filter Co.,Ltd
SKU: CM-CB066
Price: 92.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: COMESH

Certification: FDA

Model Number: CM-CB066

Payment & Shipping Terms

Minimum Order Quantity: 5m

Price: USD65-120 per meter

Packaging Details: PP bag inside, and then wooden case outside

Delivery Time: 7-10 days

Payment Terms: D/A, D/P, T/T, Western Union,

Supply Ability: 500m per week

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                    2.0mm belt chain conveyor, 20mm chain plate conveyor belt


Material:	Stainless Steel 304	Width:	0.8m 1m 1.2m 1.4m 1.6m, Or Customized
Length:	5m 10m 12m 15m 30m, Or Customized	Wire Diameter:	1.0mm 1.2mm 1.5mm 2.0mm
Spiral Pitch:	3mm-20mm	Rod Diameter:	4mm-20mm

Material:	Stainless Steel 304
Width:	0.8m 1m 1.2m 1.4m 1.6m, Or Customized
Length:	5m 10m 12m 15m 30m, Or Customized
Wire Diameter:	1.0mm 1.2mm 1.5mm 2.0mm
Spiral Pitch:	3mm-20mm
Rod Diameter:	4mm-20mm

Product Description

Food Grade 304 316 316L Stainless Steel Spiral Wire Chain Belt For Freezing Fish

1. Description :

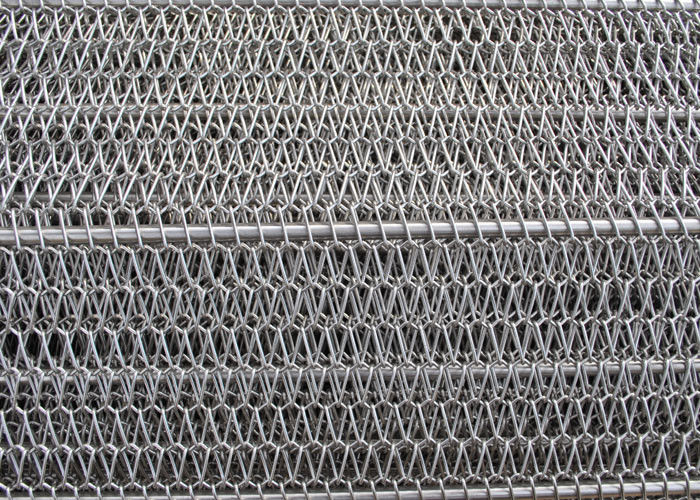

Stainless Steel Spiral Wire Chain Belt is constructed from alternating left and right hand spiral coils, which are woven together and joined by interconnecting cross rods.

Stainless Steel Spiral Wire Chain Beltdesign helps reduce tracking problems caused by the belt veering to one side. The small apertures present in the belt's construction provides end-users with a flat conveying surface suitable for products prone to slipping through more open mesh designs.

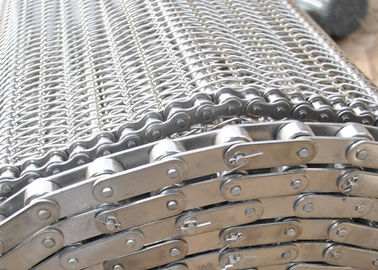

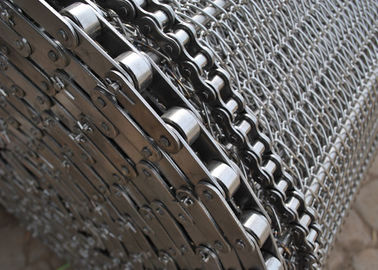

Stainless Steel Spiral Wire Freezing Belt can be supplied with a welded, laddered or hook edge and is used in a friction driven conveyor layouts. Flat Spiral can also be supplied with chain edges when a positive drive configuration is required. Flat Spiral is most commonly supplied in Grade 304 Stainless Steel, however, other materials are available on request.

2. Specification :

Material	iron steel Q195 or 235, stainless steel 201, 304, 316L, 430
Width	0.2-4.0m (include side chain width)
Length	1.0-50m
Spiral wire diameter	0.5-5.0mm(usual 1.0-3.0mm)
Rod diameter	4.0-12.0mm (common 6.0mm and 8.0mm)
Spiral pitch	3.0-20mm
Cross wire pitch	5.0-50mm
Driven type	sprockets and chains

3. Typical applications :

1) Heat treating
2) Metal working
3) Food processing
4) Snack food
5) Ceramics
6) Baking
7) Industrial curtains
8) Curing
9) Shrink-wrapping
10) Lifting slings
11) Elevating
12) Cladding

4. Available materials :

1) AISI 314 (1150°C)
2) SUS 310S (1090°C)
3) SUH 330 (1150°C)
4) SUS 304 (870°C)
5) Super alloy Cr20Ni80 (1250°C) electrical furnace wire
6) SUS 321 (750°C)
7) SUS 410 (700°C)
8) SUS 430 (700°C)
9) Various metal materials as per your requirements

Freezing Fish Food Grade Spiral 2.0mm Chain Driven Conveyor Belt
