Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel 304 316 316L | Width: | 0.95m, Or Customized |
|---|---|---|---|
| Length: | 50, Or Customized | Wire Diameter: | 1.2mm |
| Space: | 30mm | Pitch: | 7mm |
| High Light: | stainless steel mesh conveyor belt,balanced weave belt |
||

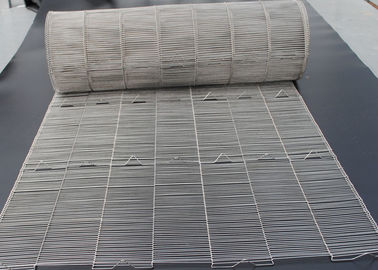

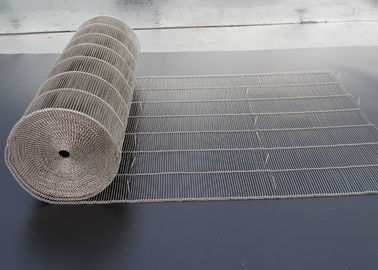

304 Stainless Steel Flat Flex Wire Mesh Ladder Conveyor Belt For Ovens
1. Description :
Flat flex belts(flex belting ) are used in many industries.the belts have a light weight single layer construction and are positively driven by sprockets. The belts have an open structure (70-85% open ) and are frequently used in cooing baking ,draying ,heating ,decorating ,battering and packing machines for light products. Flat flex belts are often used in conveyors for the food industry for the production of :snacks fish pizzas vegetables breadpastry –meat candy (small ) potatoes biscuits chocolate nuts and fruits.
2. Feature :
Material mainly adopts 202 stainless steel, 304 stainless steel, stainless steel 1Cr18Ni9Ti special material made by stainless steel, high temperature resistance, corrosion resistance, good air permeability and other special features; the belts: mainly used in printing and dyeing, radio, electronic, food machinery and scientific research units.
3. Specification :
| Material | iron steel Q195 or 235, stainless steel 201, 304, 316L, 430 |
| Pitch(mm) | 5 8 7 7 10 13 15 15 18 20 20 20 19.5 |
| Wire diameter(mm) | 1.0 1.0 1.2 1.4 1.6 1.8 2.0 2.3 2.6 3.0 3.2 3.5 5.0 |
| Min span(mm) | 30 30 30 30 30 40 40 50 60 100 130 150 300 |
| Edge loop | single loop, double loop, c cure edge |
| Overall width(mm) | 30-4200mm |
4. Applications :
It Widely used in roasting foodstuff,printing,electronics ,cold storage ,metal heat treatment ,power plant,pharmacy plant, non-woven cloth factory,glass and ceramic factory, conveyor machinery and conveyor lines in many industries.
