| Material: | Stainless Steel 304 | Width: | 1.5m, Or Customized |
|---|---|---|---|
| Length: | 30, Or Customized | Wire Diameter: | 1.0mm |
| Space: | 30mm | Chain Pitch: | 5mm |
| High Light: | stainless steel mesh conveyor belt,balanced weave belt |
||

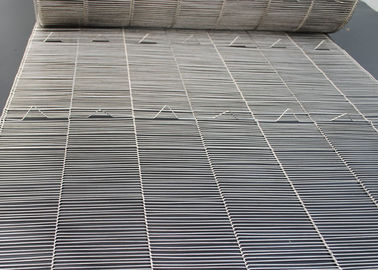

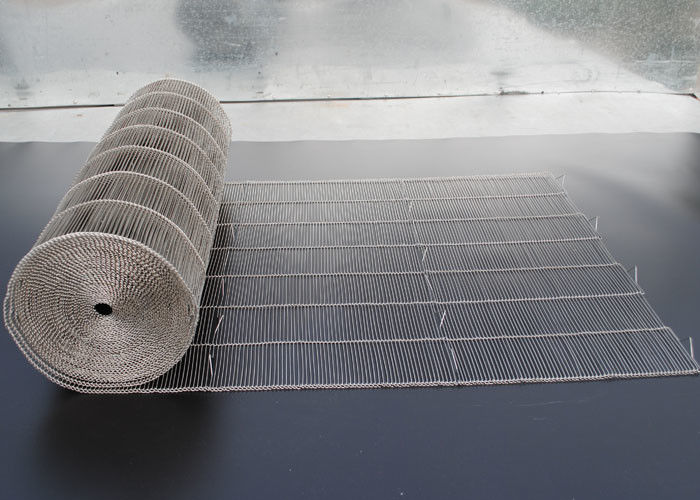

Food Grade Stainless Steel 304 Chocolate Enrober Wire Mesh Belt For Food Machine
1. Description :
Flat Flex Belt: also called ladder belt, flat line belt or Z shape belt, always driven by sprockets, has good air permeability, tensile force uniform, fine workmanship, flat flex bbelt has characteristics of flexible rotation, good stability, high temperature resistance, pressure resistance, corrosion resistance, long service life.
2. Feature :
1) Has good resistance to corrosion, wear resistance, high temperature and other properties.
2) A satisfactory shrink, anti-oxidation, anti-fracture properties in the negative temperature and high temperature.
3) Reasonable design, compact structure, size and more easy to install, run-time stable, non-run edge, the flexible use.
3. Specification :
| Material | iron steel Q195 or 235, stainless steel 201, 304, 316L, 430 |
| Pitch(mm) | 5 8 7 7 10 13 15 15 18 20 20 20 19.5 |
| Wire diameter(mm) | 1.0 1.0 1.2 1.4 1.6 1.8 2.0 2.3 2.6 3.0 3.2 3.5 5.0 |
| Min span(mm) | 30 30 30 30 30 40 40 50 60 100 130 150 300 |
| Edge loop | single loop, double loop, c cure edge |
| Overall width(mm) | 30-4200mm |
4. Applications :
It Widely used in roasting foodstuff,printing,electronics ,cold storage ,metal heat treatment ,power plant,pharmacy plant, non-woven cloth factory,glass and ceramic factory, conveyor machinery and conveyor lines in many industries.
