Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel 304 | Width: | 1.5m, Or Customized |
|---|---|---|---|
| Length: | 30, Or Customized | Wire Diameter: | 1.0mm |
| Space: | 30mm | Chain Pitch: | 5mm |
| High Light: | stainless steel mesh conveyor belt,balanced weave belt |
||

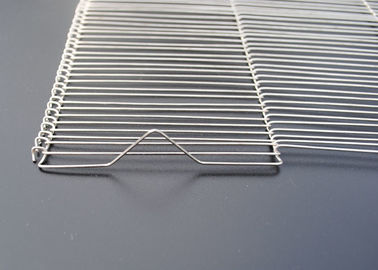

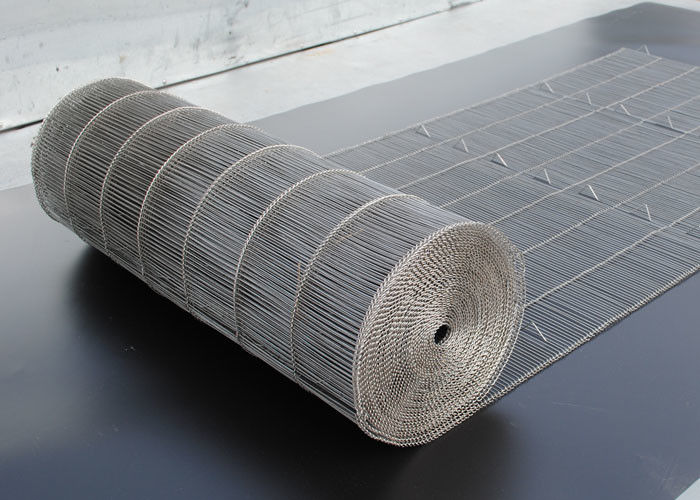

Food Grade Stainless Steel 304 Chocolate Enrober Wire Mesh Belt For Food Machine
1. Description :
Flat Flex conveyor belts offer numerous benefits that increase productivity, help contain costs and improve your overall product quality, including:
• The largest proportion of open-mesh area available- up to 86%
• Easy to clean, clean-in-place design
• No-slip, positive drive
• Very low belt mass
• Smallest diameter end rolls and drive rolls
• Positive driven for accurate tracking
• FDA Approved
2. Feature :
1) Has good resistance to corrosion, wear resistance, high temperature and other properties.
2) A satisfactory shrink, anti-oxidation, anti-fracture properties in the negative temperature and high temperature.
3) Reasonable design, compact structure, size and more easy to install, run-time stable, non-run edge, the flexible use.
3. Specification :
| Material | iron steel Q195 or 235, stainless steel 201, 304, 316L, 430 |
| Pitch(mm) | 5 8 7 7 10 13 15 15 18 20 20 20 19.5 |
| Wire diameter(mm) | 1.0 1.0 1.2 1.4 1.6 1.8 2.0 2.3 2.6 3.0 3.2 3.5 5.0 |
| Min span(mm) | 30 30 30 30 30 40 40 50 60 100 130 150 300 |
| Edge loop | single loop, double loop, c cure edge |
| Overall width(mm) | 30-4200mm |
4. Applications :
Used to washing, drying, cooling, heat treatment of the transmission line, the spiral tower
in food, frozen bread line machinery transmission, spraying, widely used in cleaning machinery
and heavy transport machinery;Widely used in light industry machinery, sterilization machine,
silk printing and dyeing, food, power generation, pharmaceuticals, garment processing industries
such as automatic line.
