Material: | Stainless Steel 316 | Width: | 1.6m, Or Customized |
---|---|---|---|
Length: | 30, Or Customized | Wire Diameter: | 1.2mm |
Spiral Pitch: | 3mm-20mm | Rod Diameter: | 4mm-20mm |
High Light: | stainless steel mesh conveyor belt,balanced weave belt |

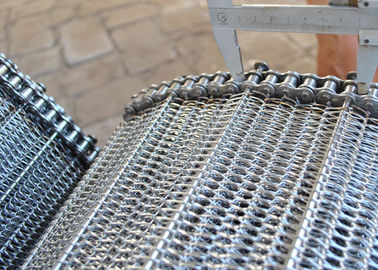

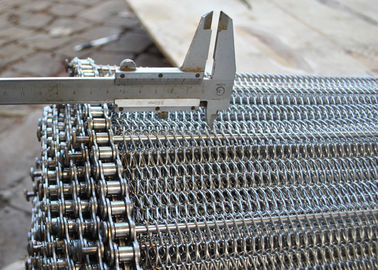

Heat Resistant Stainless Steel Spiral Wire Mesh Conveyor Belt For Food Drying
1. Description :
Stainless steel wire mesh belt is a kind of mechanical friction drive with continuous way transport material.Apply it to material in certain transportation on-line,fron the original material feeding point to the final discharge point is formed between a material conveying process.
Material:SS302,304,316,316L,310S,601 ect.
Width:0.3-3 meter
Length:0.5-100meter
Work temperture:+550℃
2. Specification :
Material | iron steel Q195 or 235, stainless steel 201, 304, 316L, 430 |
Width | 0.2-4.0m (include side chain width) |
Length | 1.0-50m |
Spiral wire diameter | 0.5-5.0mm(usual 1.0-3.0mm) |
Rod diameter | 4.0-12.0mm (common 6.0mm and 8.0mm) |
Spiral pitch | 3.0-20mm |
Cross wire pitch | 5.0-50mm |
Driven type | sprockets and chains |
3. Typical applications :
1) Widely used in solar power, mine, metallurgy, petroleum, chemical, food, pharmeceuticals, glass, printing and machine making industries;
2) Heat treament, drying, cooling, refrigerating, cleaning, dehydration, sintering, transportation, material handling, steaming, filtering, sludge draining, printing, etc.
3) Used in sintering furnace, annealing furnace, continuous tunnle furnace, travelling furnace, high-temperature furnace, production line, etc
4. Advantage :
1) High open structure - high proportion of open area up to 86% makes the belt efficient in cooling, drying, heating applications.
2) Positive drive without slipping - Rod network belts are normally driven by sprockets positively without need for complicated tracking mechanisms.
3) Stable conveying - With smallest diameter end rolls and drive rolls, the rod network belts provide stable conveying of delicate products
4) A wide range of sizes - Various sizes with different openness to suit different applications providing superb strength and min contact surface between the products and the belts. Generally, the more the joints cross the width, the stronger the belt.
5) Lower belt mass - low belt mass than balanced weave belts for lower power consumption, faster processing and more product throughput.
6) Cost saving - The high open structure without hidden crevices makes the belt easy to clean and maintain which result in considerable cost saving
