Heat Resistant Spiral Conveyor Belt Wire Mesh For Food Drying

Brand Name:	COMESH
Model Number:	CM-CB002
MOQ:	5m
Price:	USD65-120 per meter
Payment Terms:	D/A, D/P, T/T, Western Union,
Supply Ability:	500m per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

FDA

Material:

Stainless Steel 316

Width:

1.6m, Or Customized

Length:

30, Or Customized

Wire Diameter:

1.2mm

Spiral Pitch:

3mm-20mm

Rod Diameter:

4mm-20mm

Packaging Details:

PP bag inside, and then wooden case outside

Highlight:

stainless steel mesh conveyor belt

balanced weave belt

Product Description

Heat Resistant Stainless Steel Spiral Wire Mesh Conveyor Belt For Food Drying

1. Description :

Stainless steel wire mesh belt is a kind of mechanical friction drive with continuous way transport material.Apply it to material in certain transportation on-line,fron the original material feeding point to the final discharge point is formed between a material conveying process.

Material:SS302,304,316,316L,310S,601 ect.

Width:0.3-3 meter

Length:0.5-100meter

Work temperture:+550℃

2. Specification :

Material	iron steel Q195 or 235, stainless steel 201, 304, 316L, 430
Width	0.2-4.0m (include side chain width)
Length	1.0-50m
Spiral wire diameter	0.5-5.0mm(usual 1.0-3.0mm)
Rod diameter	4.0-12.0mm (common 6.0mm and 8.0mm)
Spiral pitch	3.0-20mm
Cross wire pitch	5.0-50mm
Driven type	sprockets and chains

3. Typical applications :

1) Heat treating
2) Metal working
3) Food processing
4) Snack food
5) Ceramics
6) Baking
7) Industrial curtains
8) Curing
9) Shrink-wrapping
10) Lifting slings
11) Elevating
12) Cladding

4. Available materials :

1) AISI 314 (1150°C)
2) SUS 310S (1090°C)
3) SUH 330 (1150°C)
4) SUS 304 (870°C)
5) Super alloy Cr20Ni80 (1250°C) electrical furnace wire
6) SUS 321 (750°C)
7) SUS 410 (700°C)
8) SUS 430 (700°C)
9) Various metal materials as per your requirements

5. Advantage :

-1-Smooth surface,high toughness strong corrosion resistance,tensile strength,good permeability,not easy to deformation,durability and other special functions.

-2- It is very easy to install and steadily run without deflection.

-3- Has resistance to acid,alkali and low and high tempurature.

-4-Wire diameter is available as customer's advice.

-5-Has good conveying function,break resistance,as well as antioxidation.

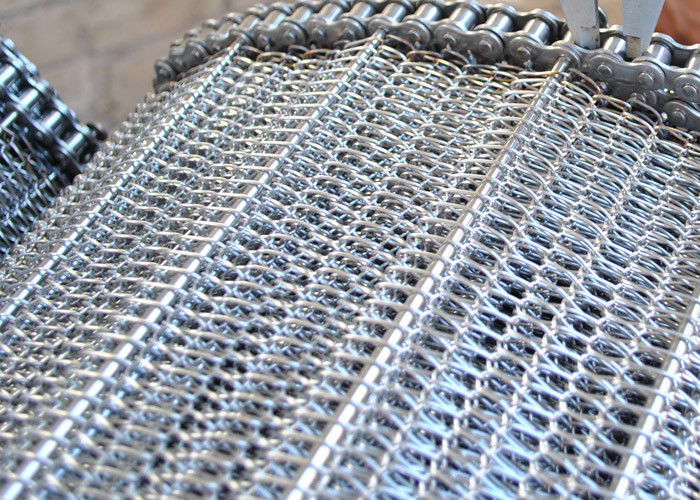

Heat Resistant Spiral Conveyor Belt Wire Mesh For Food Drying 0
