Customized Food Grade Spiral Wire Mesh Chain Conveyor Belt For Baking

Brand Name:	COMESH
Model Number:	CM-CB001
MOQ:	5m
Price:	USD65-120 per meter
Payment Terms:	D/A, D/P, T/T, Western Union,
Supply Ability:	500m per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

FDA

Material:

Stainless Steel 304 316 316L

Width:

0.2m-4m, Or Customized

Length:

1m-50m, Or Customized

Wire Diameter:

1mm-3mm

Spiral Pitch:

3mm-20mm

Rod Diameter:

4mm-20mm

Packaging Details:

PP bag inside, and then wooden case outside

Highlight:

stainless steel mesh conveyor belt

balanced weave belt

Product Description

Food Grade 304 Stainless Steel Spiral Wire Mesh Chain Conveyor Belt For Baking

1. Description :

Stainless Steel Chain Baking Belt For Cooling is constructed from alternating left and right hand spiral coils, which are woven together and joined by interconnecting cross rods.

Stainless Steel Chain Baking Belt design helps reduce tracking problems caused by the belt veering to one side. The small apertures present in the belt's construction provides end-users with a flat conveying surface suitable for products prone to slipping through more open mesh designs.

Stainless Steel Spiral Wire Mesh Conveyor Belt can be supplied with a welded, laddered or hook edge and is used in a friction driven conveyor layouts. Flat Spiral can also be supplied with chain edges when a positive drive configuration is required. Flat Spiral is most commonly supplied in Grade 304 Stainless Steel, however, other materials are available on request.

2. Specification :

Material	iron steel Q195 or 235, stainless steel 201, 304, 316L, 430
Width	0.2-4.0m (include side chain width)
Length	1.0-50m
Spiral wire diameter	0.5-5.0mm(usual 1.0-3.0mm)
Rod diameter	4.0-12.0mm (common 6.0mm and 8.0mm)
Spiral pitch	3.0-20mm
Cross wire pitch	5.0-50mm
Driven type	sprockets and chains

3. Typical applications :

1) Heat treating
2) Metal working
3) Food processing
4) Snack food
5) Ceramics
6) Baking
7) Industrial curtains
8) Curing
9) Shrink-wrapping
10) Lifting slings
11) Elevating
12) Cladding

4. Available materials :

1) AISI 314 (1150°C)
2) SUS 310S (1090°C)
3) SUH 330 (1150°C)
4) SUS 304 (870°C)
5) Super alloy Cr20Ni80 (1250°C) electrical furnace wire
6) SUS 321 (750°C)
7) SUS 410 (700°C)
8) SUS 430 (700°C)
9) Various metal materials as per your requirements

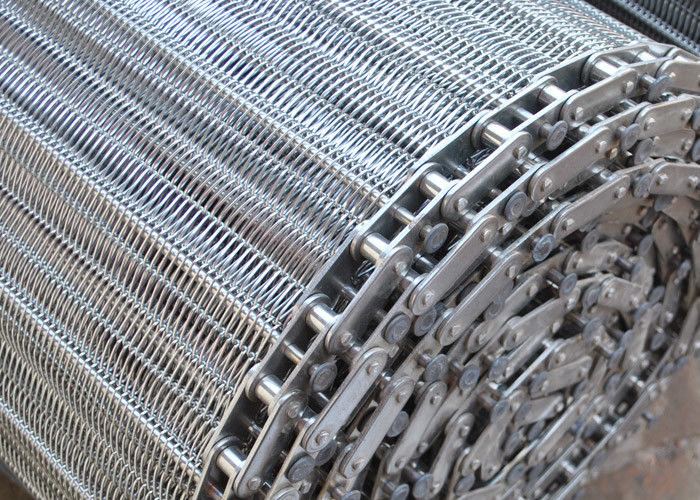

Customized Food Grade Spiral Wire Mesh Chain Conveyor Belt For Baking 0

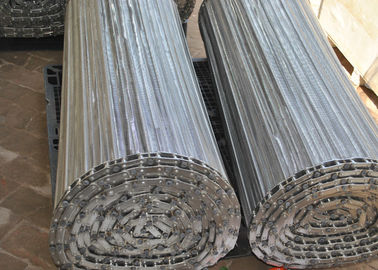

Customized Food Grade Spiral Wire Mesh Chain Conveyor Belt For Baking 1

Customized Food Grade Spiral Wire Mesh Chain Conveyor Belt For Baking 2
