Payment & Shipping Terms:
|Material:||Stainless Steel 314||Application:||Food Drying,cooling,freezing And So On|
|Technique:||Spiral Wire||Hot Search:||Wire Mesh Conveyor Belt|
conveyor chain belt,
stainless steel mesh conveyor belt

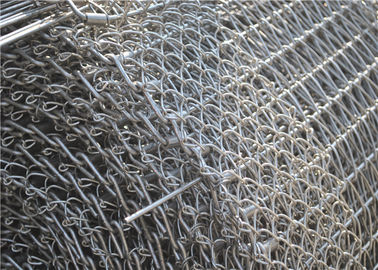

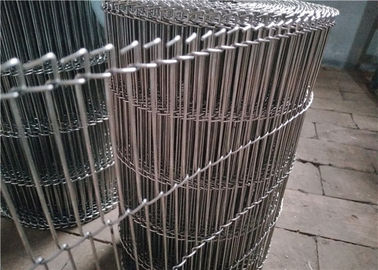

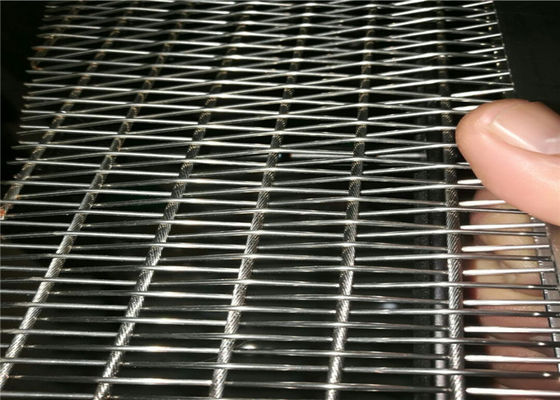

304 316 316L 430 310 Stainless Steel Wire Mesh Conveyor Belt With Chian
Features of wire mesh conveyor belt:
Material of wire mesh belt:
stainless steel 304 316 316L 430 310 ,carbon steel galvernized steel and so on.
Description of wire mesh belt:
First, the traditional mesh belt: it relies on the two sides of the drum to try to tighten the mesh belt to ensure the operation of the mesh belt, but this design will make the mesh belt bear the gravity of the material to be transported, but also bear the equipment itself. The great pull, so the mesh belt is also easily deformed and damaged.

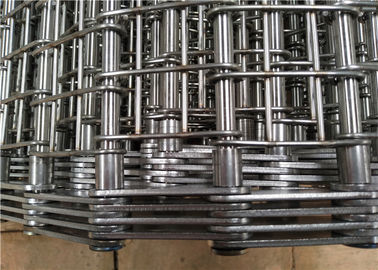

Second, the chain stainless steel mesh belt: it is to distribute the tension of the equipment to the chain and the support shaft, and the mesh belt can only operate under the gravity of the material to be conveyed, thereby greatly increasing the life of the stainless steel mesh belt.
Type of wire mesh belt:
1. material:stainless steel 201/304/316/316L
2. wire diameter:0.8-3.0mm
3. mesh width: 150 ~ 5500mm
4. mesh belt speed: 0.15 ~ 0.50m/min
5. using temperature: -40 ~ 1300
6. the edge of the form: curved edge, upsetting head, welding and other forms.
7. Shape:herringbone mesh belt,hook flower mesh belt,diamond mesh belt,etc.
8. waterproof paper,in plywood case or as customer's requirements
Advantage of wire mesh conveyor belt:
Applications of wire mesh conveyor belt:
Conveyor belt in freezing and cooling tunnels
Conveyor belt in confectionery and chocolate industry
Cooling belt in bakeries
Conveyor belt in the chemical industry
Supporting belt in special driers
Conveyor plotting belt in special discharging towers at ports and airports
Pasteurizing belt, cooking belt, spiral freezer belt, pizza conveyor belt
Before sending inquiry ,the following wire mesh belt information need to be told:
|material||such as stainless steel 304,316,316L,310,430 and so on|
|datas||spiral wire diameter,string wire diameter,pitches of spiral wire,string wire,rod daimeter,width and length|
|requriement||such as working temperature,laoding weight|
|size of the belt||wide and length can be designed according to customer`s requriement.|
Or you can refer to the following wire mesh conveyor belt drawing when supply us information before our quotation:
