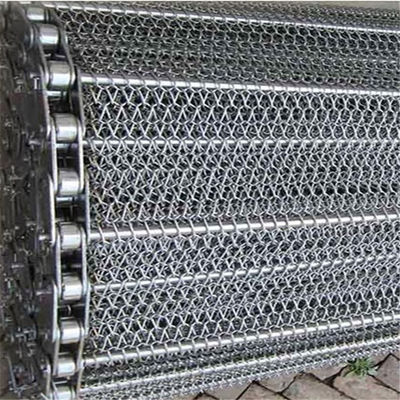

Balanced Wire Mesh Conveyor Belt With High Temperature Resistance SGS

Large Image : Balanced Wire Mesh Conveyor Belt With High Temperature Resistance SGS

Product Details:

Place of Origin:	Hebei,China
Brand Name:	PFM
Certification:	SGS
Model Number:	PFM-Lis

Payment & Shipping Terms:

Minimum Order Quantity:	10meter
Price:	Negotiable
Packaging Details:	Plastic bag inside and plywood case outside or according to your need.
Delivery Time:	10 work days
Payment Terms:	L/C, T/T, Western Union, MoneyGram,Paypal,Trade assurance
Supply Ability:	300 meter per month

Contact Now

Detailed Product Description

Material:	SUS304,316,310,310S,etc	Application:	Kinds Of Industry
Advantage:	High Temperature Resistance	Hot Search:	Wire Mesh Conveyor Belt
Rod Diameter:	Min 5mm	Edge:	With Chain/ No Chain
High Light:	conveyor chain belt , stainless steel mesh conveyor belt

Balanced Wire Mesh Conveyor Belt With High Temperature Resistance

Description of wire mesh conveyor belt

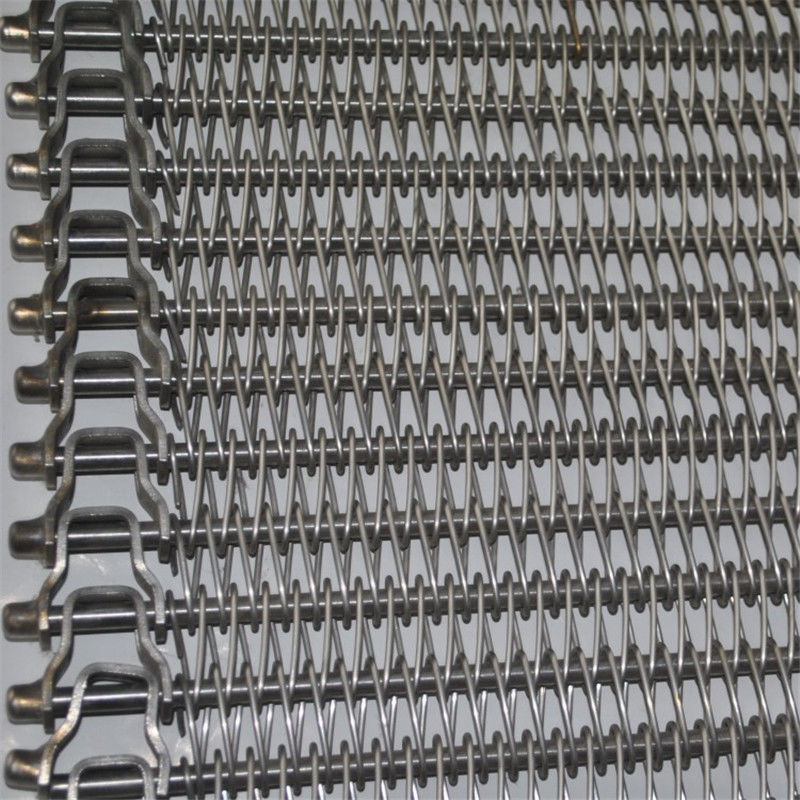

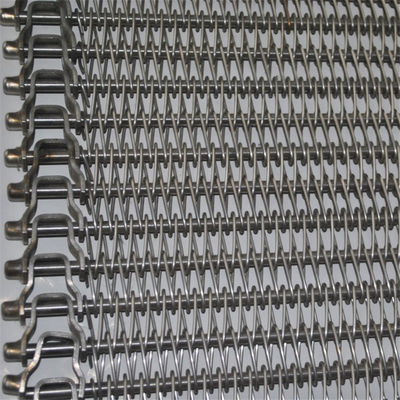

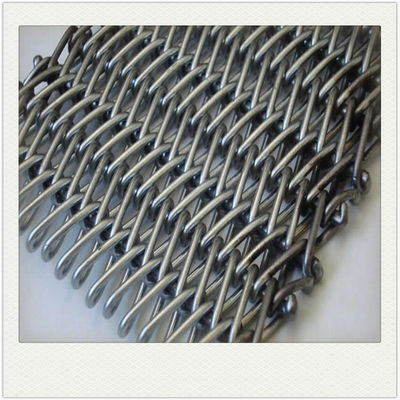

Balanced Weave Belt:

Balanced weave belt, which has big mesh size, strong netting, could bear heavy load.

Spirals usually use the same diameter wires, such as 0.9, 1.2, 1.5, 1.8mm to cross the rod. The rod could be direct wires or waved wires.

Features of wire mesh conveyor belt:

The belt is produced using right and left spiral connecting and crimped connecting rod to form balance weave ,which is tracking streight.
This kind of spiral wire link belt is the most widely used mesh belt.
Spiral wirelink belt can conveyor goods from big size or very hot to very small size ,unsorted who need stable support because of its adjustable openning size
The round end of spiral wirelink belt allow goods on it transfer to the following stage processing very easily.
spiral wirelink belt is also can be used to transport in glass furnace,at the same time, it can be use as decorative dividers in architecture and safty curtain

Advantage of wire mesh conveyor belt:

1.Widest range of application

2.Stable construction for straight belt running,

Applications of wire mesh conveyor belt:

tight wire mesh for flexibility and conveying small parts
special smooth surface belts for easy accurate transfer
wire belts with large opening for easy flow of air or water and for simplified cleaning of your product
conveyor metal parts through copper and aluminum brazing furnaces
bronze and iron parts through sintering furnaces
textile and chemical through oven dryers as well as applications that involve washing,annealing,quenching and polishing
the food processing industry our belts are used to clean dry,bake,cook,freeze,salt

Before sending inquiry ,the following wire mesh belt information need to be told:

material	such as stainless steel 304,316,316L,310,430 and so on
datas	spiral wire diameter,string wire diameter,pitches of spiral wire,string wire,rod daimeter,width and length
Type	balanced spiral conveyor belt
size of the belt	wide and length can be designed according to customer`s requriement.
