304 Stainless Steel Wire Mesh Conveyor Belt High Temperature resistant

High Temperature resistant Stainless Steel Wire Mesh Conveyor Belt 304

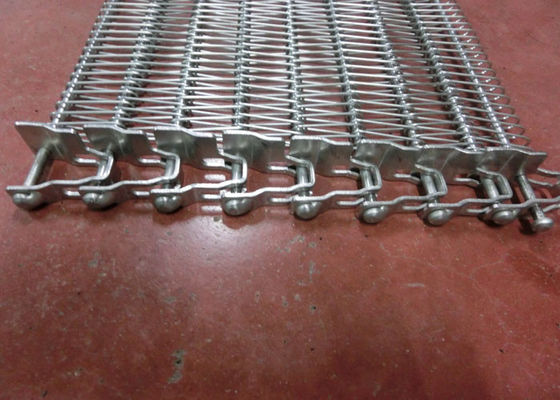

Description of wire mesh conveyor belt

The mesh conveyor belt is produced using right and left spiral connecting and crimped connecting rod to form balance weave ,which is tracking streight.

Spiral wire link mesh belt is the most widely used mesh belt.It can conveyor goods from big size or very hot to very small size ,unsorted who need stable support because of its adjustable openning size.

The round end of spiral wire balanced belt allow goods on it transfer to the following stage processing very easily.

Spiral wire belt with chain has advantage of positive driving ,running streight charactor

The material of the wire mesh belt can be stainless steel 304,316,316L,310,430,2080 ,carbon steel and galvanized steel.

Advantage of wire mesh conveyor belt:

Wire mesh conveyor belt has corrosion resistant,both acid and alkali resistant,high temperature resistant,can bear 2000 degree centigrade,long time service,heavy loading,rod can be added to increase its loading weight.


Type of wire mesh conveyor belt:

• material:stainless steel 201/304/316/316L,carbon steel galvernized steel and so on.
• wire diameter:0.8-3.0mm
• mesh belt speed: 0.15 ~ 0.50m/min
•  using temperature: -40 ~ 1300
•  the edge of the form: curved edge, upsetting head, welding and other forms.
• Shape:herringbone mesh belt,hook flower mesh belt,diamond mesh belt,etc.
• waterproof paper,in plywood case or as customer's requirements

Features of wire mesh conveyor belt:


•  Open mesh construction for quick drainage and free air circulation.
• A smooth, flat surface.
• Easy replacement of damaged or worn sections.
• Endless splicing.
• Economical versus alternative metal conveyor belts.
• High strength to weight ratio.
• Positive sprocket drive.


Applications of wire mesh conveyor belt:


1. Quick-frozen, baking machinery plane conveyor, screw conveyor,
2. Food machinery of the cleaning, sterilization, drying, cooling, cooking and so on
3. Glass machinery lose bottle annealing, roast flowers, etc.
4. All kinds of pipeline transport.
5. Food processing industry, dehydrated vegetables, frozen food iqf machine pretreatment mesh belt, chain network.
6. Powder metallurgy, metal heat treatment, hardening, sintering, brazing, roasting, bright, black, bearing, carburizing high-temperature LuWang belt, baffle type drying conveyor mesh belt, mesh belt, foam nickel mesh belt production line, washing machine, winding machine, drying machine, dryer, curing LuWang belt.Each delivery such as process equipment.

Before sending inquiry ,the following wire mesh belt information need to be told:



Or you can refer to the following wire mesh conveyor belt drawing when supply us information before our quotation:
