| Name: | Stainless Steel Mesh Belt / Eyelink Mesh Conveyor Belt For Shrink Packing Machine | Application: | Shrink Machine For Packing |
|---|---|---|---|
| Features: | Heavy Duty,corrosion Resistant,temperature Resistant | Material:: | Stainless Steel,carbon Steel |
| High Light: | conveyor chain belt,balanced weave belt |
||

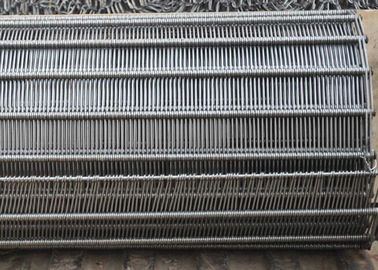

Stainless Steel Mesh Belt / Eyelink Mesh Conveyor Belt for Shrink packing machine
eyelink belt is also called Tight Spiral Link Belts,wire ring belt,which is Toughest wire mesh conveyor belt.
Eyelink Mesh Belt has flat and stable surface,dimensional stability,stable structure
This kind of Tight Mesh Conveyor Belt allows heavy loads,good support for fragile product
Eyelink Mesh Conveyor Belt is easy to clean becasue it has seperate opening.
Eye link conveyor belt is widely used in the following industries:
Sample of Eye link conveyor belt can be supplied.
Drawing of eyelink conveyor belt is as following, before our best offer, the datas of the belt should be supplied.
| specifications | datas |
| eye link pitch | 2.4mm,3.2mm,4.0mm,4.6mm,5.2mm,6.0mm |
| rod pitch | 25.4mm,31.75mm,38.1mm,50mm,50.8mm,63.5mm |
| rod diameter | 5mm,6mm,7mm,8mm,10mm,12.0mm,13.8mm |
| eyelink diameter | 1.2mm,1.6mm,2.0mm,2.3mm,2.6mm,3.0mm |
Packing and shipping of stainless steel mesh belt :
Eyelink belt is packed with plywood case,and ship by air or by plane
