Balanced Metal Mesh Belt / Stainless Steel Conveyor Chain Belt Heat Resistant

Brand Name:	PFM
Model Number:	PFM-Lis
MOQ:	1 meter
Price:	Negotiable
Payment Terms:	L/C, T/T, Western Union, ,Paypal,Trade assurance
Supply Ability:	300 meter per month

Detail Information

Place of Origin:

Hebei,China

Certification:

SGS

Material:

Stainless Steel 304

Application:

Conveyor Belt Industry

Advantage:

,heat Resistant

Type:

Balanced Conveyor Belt

Color:

Stainless Steel Color

Width:

Requirement

Packaging Details:

Plastic bag inside and plywood case outside or according to your need.

Highlight:

Product Description

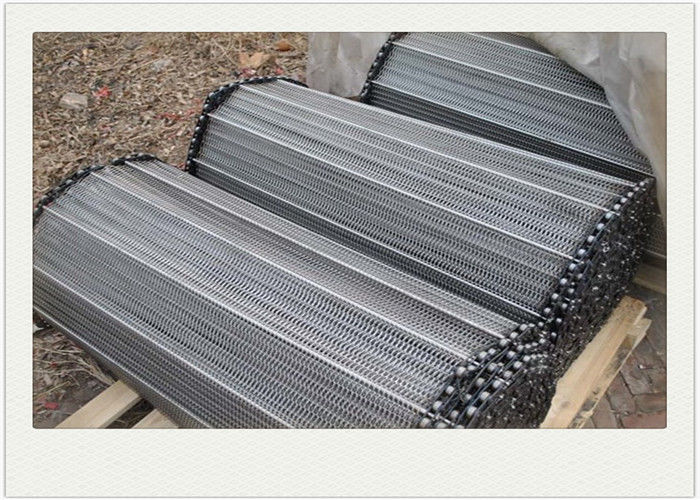

Balanced Metal Mesh Belt / Stainless Steel Conveyor Chain Belt Heat Resistant

Description of balanced chain conveyor belt

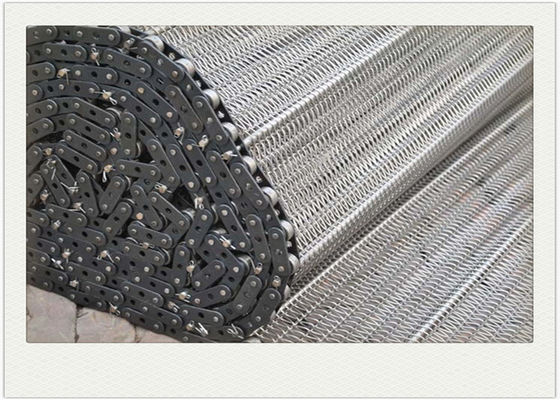

These belts are made by fitting chains to both sides of ordinary wire conveyor belt.Belts and chain are synchronized through stays cross supports,

Material of wire mesh belt:

stainless steel 304 316 316L 430 310 ,carbon steel galvernized steel and so on.

Features of wire mesh conveyor belt:

The belt is produced using right and left spiral connecting and crimped connecting rod to form balance weave ,which is tracking streight.
This kind of spiral wire link belt is the most widely used mesh belt.
Spiral wirelink belt can conveyor goods from big size or very hot to very small size ,unsorted who need stable support because of its adjustable openning size
The round end of spiral wirelink belt allow goods on it transfer to the following stage processing very easily.
spiral wirelink belt is also can be used to transport in glass furnace,at the same time, it can be use as decorative dividers in architecture and safty curtain

Advantage of wire mesh conveyor belt:

Because chain is driven by sprocket meandering does not occur
Various types of chain can be applied by adjusting belt pich
It is easy to attach side guard and product stopper in combination with chain and stay.

Applications of wire mesh conveyor belt:

Before sending inquiry ,the following wire mesh belt information need to be told:

material	such as stainless steel 304,316,316L,310,430 and so on
datas	spiral wire diameter,string wire diameter,pitches of spiral wire,string wire,rod daimeter,width and length
requriement	such as working temperature,laoding weight.length and width
size of the belt	wide and length can be designed according to customer`s requriement.
