Food Industry Wire Mesh Conveyor Belt With Smooth Traffic / Chain Link Conveyor Belt

Brand Name:	PFM
Model Number:	PFM-Lis
MOQ:	5 meter
Price:	Negotiable
Payment Terms:	L/C, T/T, Western Union, ,Paypal,Trade assurance
Supply Ability:	300 meter per month

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

SGS

Material:

304 Stainless Steel

Process Customed:

Yes

Advantage:

Smooth Traffic

Hot Search:

Wire Mesh Conveyor Belt

Style:

Chain Wire Mesh Belt

Edge:

Chain Or Sprocket

Packaging Details:

Plastic bag inside and plywood case outside or according to your need.

Highlight:

conveyor chain belt

stainless steel mesh conveyor belt

Product Description

Chain Wire Mesh Conveyor Belt With Smooth Traffic Used In The Food Industry

Description of chain wire mesh conveyor belt

Chain wire mesh belt is the conveyor mesh belt drived by chains,geneally use the chain drive the small shaft and then use the small shaft drive the belts.Belts is made up by crimped wire rod,two left and right belt rod which also can be big rod and small rod.the small shaft insert to big belt rod,and the other end of small shaft insert to chain's hole,in this way the belt can be driven by chains,the chain wire mesh belt running smoothly and the transmission torque is small..

Features of wire mesh conveyor belt:

The belt is produced using right and left spiral connecting and crimped connecting rod to form balance weave ,which is tracking streight.
This kind of spiral wire link belt is the most widely used mesh belt.
Spiral wirelink belt can conveyor goods from big size or very hot to very small size ,unsorted who need stable support because of its adjustable openning size
The round end of spiral wirelink belt allow goods on it transfer to the following stage processing very easily.
spiral wirelink belt is also can be used to transport in glass furnace,at the same time, it can be use as decorative dividers in architecture and safty curtain

Advantage of wire mesh conveyor belt:

Because chain is driven by sprocket meandering does not occur
Various types of chain can be applied by adjusting by adjusting belt pich
It is easy to attach side guard and product stopper in combination with chain and stay.

Step-cut round tod stay pin is fitted to chain at both sides,and thickess of spiral is adjusted so that round rod passed inside spiral.

Applications of wire mesh conveyor belt:

Tunnel oven belts
Glass and ceramics onen belts
Metal parts conditioning and annealing belts
Small parts processing belts
In petroleum,metallurgy food machinery cooling,freezing,cleaning

Before sending inquiry ,the following wire mesh belt information need to be told:

material	stainless steel 304,201,316,galvanized iron wire,SAE,
datas	spiral wire diameter,string wire diameter,pitches of spiral wire,string wire,rod daimeter,width and length
requriement	such as working temperature,loading weight,transport way,etc
size of the belt	wide and length can be designed according to customer`s requriement.

You can according to the following picture and tell me your specification

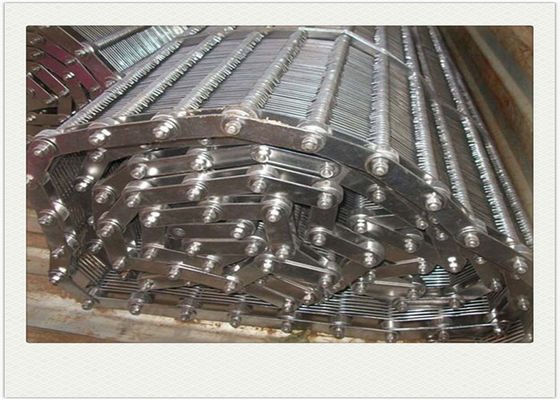

Food Industry Wire Mesh Conveyor Belt With Smooth Traffic / Chain Link Conveyor Belt 1

Species

We have some kinds of balanced spiral wire mesh conveyor belt.

With chain conveyor belt
Frozen conveyor belt
Balanced conveyor belt
Double balanced conveyor belt
Encrypted conveyor belt (compound conveyor belt)

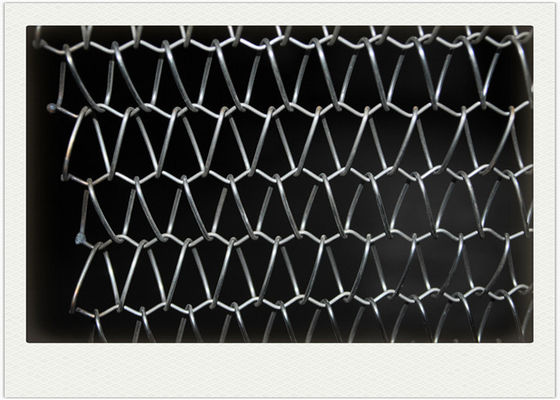

Food Industry Wire Mesh Conveyor Belt With Smooth Traffic / Chain Link Conveyor Belt 2

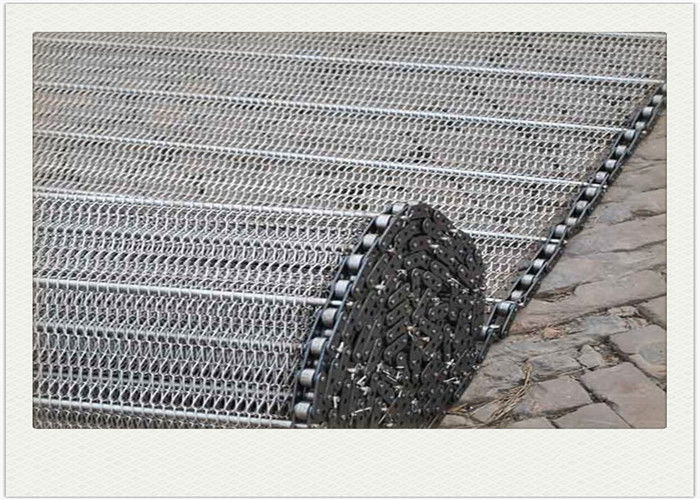

Food Industry Wire Mesh Conveyor Belt With Smooth Traffic / Chain Link Conveyor Belt 3
