Double Balanced Weave Round Wire Mesh Conveyor Belt high temperture resistant

Brand Name:	PFM
Model Number:	PFM-Hel
MOQ:	5 meters
Price:	USD5 - 50 per meter
Payment Terms:	L/C, T/T, Western Union,
Supply Ability:	100meter per week

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

SGS

Product Name:

Double Balanced Weave Wire Belting For Heavy Duty High Temperature Applications

Material:

Stainless Steel Wire

Features:

High Temperture Resistant

Application:

Heavy Loads Conveyor Belts

Hot Search:

Wire Mesh Belt

Hot Search 1:

Round Woven Wire Belting

Packaging Details:

pack wire mesh conveyors in plywood case

Highlight:

conveyor chain belt

balanced weave belt

Product Description

Double Balanced Weave Wire Belting for Heavy Duty High Temperature applications

Double Wire Mesh belting is made from alternating left hand and right hand spirals joined together by rods,the weave of spirals form a closed loop.Rods are welded to the left hand spirals to make a "strut",this kind of structure help the belt resistant to camber.

Features of Double Balance Weave Wire Mesh Belts:

smooth conveying surface
truss girder help the wire mesh belt stretches less than any other wire mesh belt even under high temperatures and stress
high and low temperature resistant, the wire belt can resistant temperture from -40 Degrees F to 2100 Degrees F

Applications:

Double Weave Wire Mesh Belt is specially used for carring heavy loads at elevated tempertures for Sintering, Brazing and Annealing.such as glazing ceramics, copper brazing steel parts and cooking, baking and cleaning in the food processing industry.

Material of Double Balance Weave Wire Mesh Conveyor Belts:

High Carbon, Galvanized, 304 Stainless Steels, 314 Stainless Steel, 316 Stainless Steel, 310 Stainless Steel, 330 Stainless Steel, and Inconel 600/601

Specifications:

wire diameter	0.635mm-6.35mm
weight per square ft	1.1-6.43lbs
width	as per order
length per roll	from 2meter to 10meter

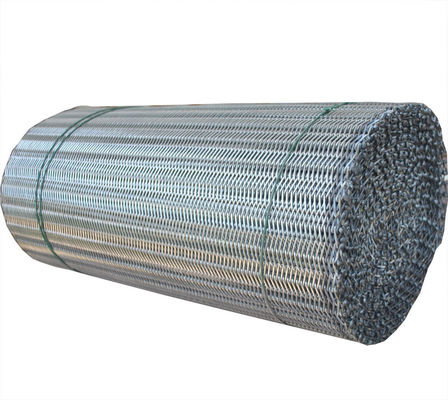

Double Balanced Weave Round Wire Mesh Conveyor Belt high temperture resistant 0

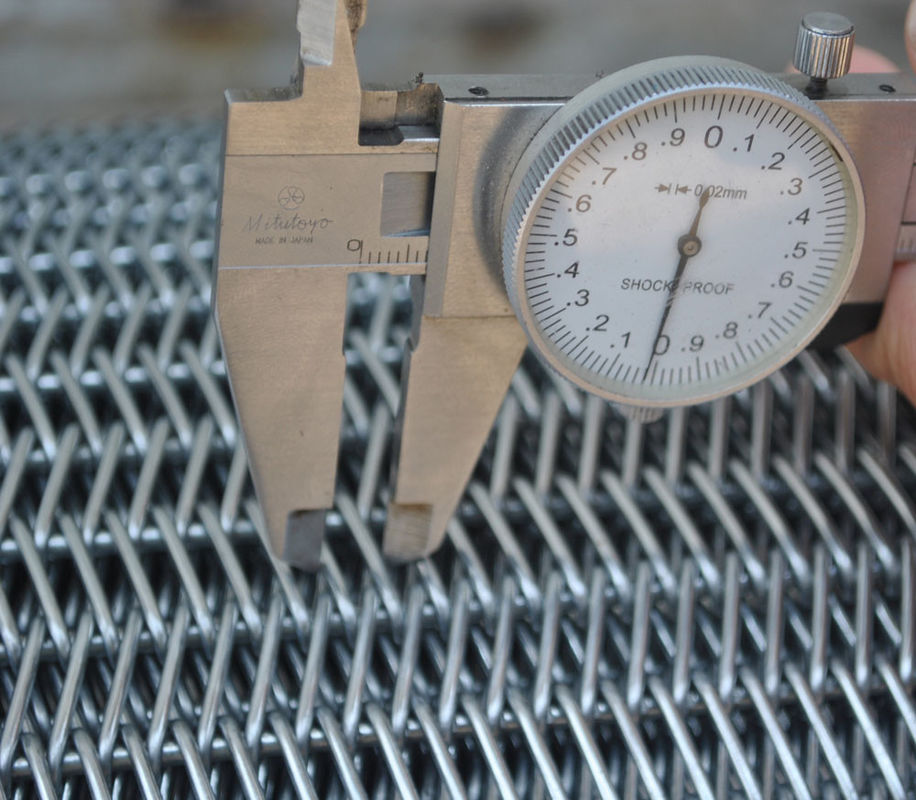

Double Balanced Weave Round Wire Mesh Conveyor Belt high temperture resistant 1

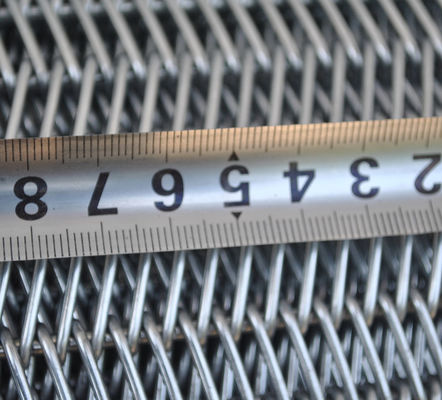

Double Balanced Weave Round Wire Mesh Conveyor Belt high temperture resistant 2
