304 Stainless Steel Conveyor Belt With high temperature resistant

304 Stainless Steel Conveyor Belt  With high temperature resistant
304 Stainless Steel Conveyor Belt  With high temperature resistant 304 Stainless Steel Conveyor Belt  With high temperature resistant

Large Image :  304 Stainless Steel Conveyor Belt With high temperature resistant

Product Details:
Place of Origin: Hebei,China
Brand Name: PFM
Certification: SGS
Model Number: PFM-Lis
Payment & Shipping Terms:
Minimum Order Quantity: 5 meter
Price: Negotiable
Packaging Details: Plastic bag inside and plywood case outside or according to your need.
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union, ,Paypal,Trade assurance
Supply Ability: 300 meter per month
Detailed Product Description
Material: SS304 Process Customed: Yes
Advantage: High Temperature Resistant Under 180 Degree Hot Search: Wire Mesh Conveyor Belt
Style: Chain Conveyor Belt Edge: With Chain/ No Chain
High Light:

conveyor chain belt

,

stainless steel mesh conveyor belt

304 Stainless Steel Conveyor Belt With high temperature resistant





Description

Chain-type mesh belt: Chain-driven conveyor belt is generally driven by the chain of small shaft and then drive the belt to run. Mesh belt are used to wear a string, about two lines of the network, and the size of the network connected from the large network into the small shaft, the small shaft into the chain of two ends of the hole, so as to achieve the chain drive conveyor belt. Chain net drive smooth, small transmission torque.

Features of wire mesh conveyor belt:

  • The belt is produced using right and left spiral connecting and crimped connecting rod to form balance weave ,which is tracking streight.
  • This kind of spiral wire link belt is the most widely used mesh belt.
  • Spiral wirelink belt can conveyor goods from big size or very hot to very small size ,unsorted who need stable support because of its adjustable openning size
  • The round end of spiral wirelink belt allow goods on it transfer to the following stage processing very easily.
  • spiral wirelink belt is also can be used to transport in glass furnace,at the same time, it can be use as decorative dividers in architecture and safty curtain

Advantage of wire mesh conveyor belt:

  • corrosion resistant,both acid and alkali resistant
  • high temperature resistant,can bear 2000 degree centigrade
  • long time service
  • heavy loading,rod can be added to increase its loading weight.



Applications of wire mesh conveyor belt:

  1. Tunnel oven belts
  2. Glass and ceramics onen belts
  3. Metal parts conditioning and annealing belts
  4. Small parts processing belts
  5. In petroleum,metallurgy food machinery cooling,freezing,cleaning

Before sending inquiry ,the following wire mesh belt information need to be told:



material stainless steel 304,201,316,galvanized iron wire,SAE,
datas spiral wire diameter,string wire diameter,pitches of spiral wire,string wire,rod daimeter,width and length
requriement such as working temperature,loading weight,transport way,etc
size of the belt wide and length can be designed according to customer`s requriement.

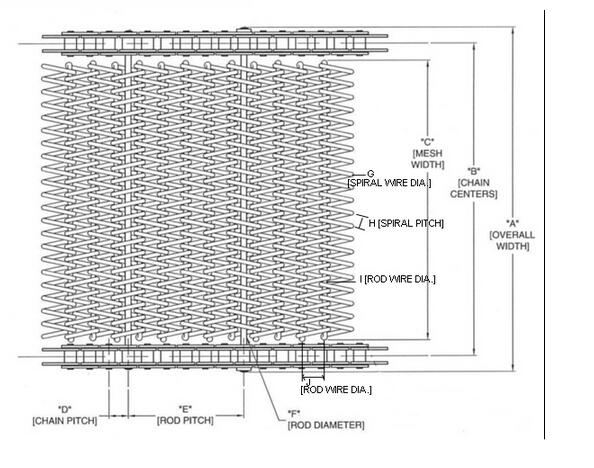

You can according to the following picture and tell me your specification

304 Stainless Steel Conveyor Belt  With high temperature resistant 0

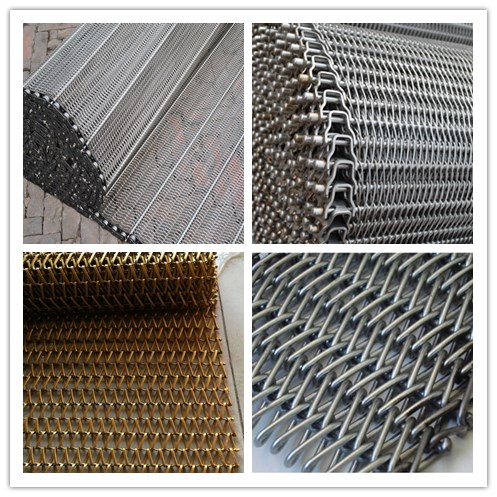

Species

We have some kinds of balanced spiral wire mesh conveyor belt.

  • With chain conveyor belt
  • Frozen conveyor belt
  • Balanced conveyor belt
  • Double balanced conveyor belt
  • Encrypted conveyor belt (herringbone conveyor belt)

304 Stainless Steel Conveyor Belt  With high temperature resistant 1



304 Stainless Steel Conveyor Belt  With high temperature resistant 2
