Stainless Steel Mesh Cloth With High Corrosion Resistant For Screen Printing

Stainless Steel Mesh Cloth With High Corrosion Resistant For Screen Printing

Brand Name: PFM
Model Number: PFM-LIS
MOQ: 1 square meter
Price: Negotiable
Payment Terms: L/C, T/T, Western Union,
Supply Ability: 2000 square meter per month
Detail Information
Place of Origin:
Hebei,China
Certification:
SGS
Product Name:
Stainless Steel Wire Mesh
Mesh:
80-400mesh/inch
Thread Diameter:
0.018-0.12mm
Color:
Stainless Steel Color
Length:
According To Your Request
Sample:
Free
Packaging Details:
waterproof paper inside,plywood case outside
Highlight:

stainless steel mesh screen

,

crimped wire mesh

Product Description

                     Stainless Steel Wire Mesh With High Corrosion Resistant For Screen Printing



Description of stainless steel mesh:



Through the use of carefully selected special alloy materials, and the use of advanced weaving technology to make stainless steel printing network structure is particularly compact, while ensuring the thickness of the tolerances within the tolerance range of high tension, the degree of extension of the net, Of the precision and thus more suitable for high-density printing.



material  SUS304N,304HPS,316,316L,
weave type plain weave
size per roll usually 1meter or 1.2meter wide,30 or 50 meter per roll
wire diameter 0.018-0.02mm
aperture size 41-268micron
hole shape square hole



Features of stainless steel wire mesh

  • High tension.Much higher than common polyester mesh,and this property is very stable
  • Super Precision.Uniform wire diameter and aperture with extremely low difference
  • Low Elongation.Very small elongation of wire mesh at high tension
  • High Flexbility.The wire mesh will not lose elasticity at extreme tension
  • High Corrosion Resistance.the excellent corrosion resistance of stainless steel wire exceeds polyester fiber

Application of stainless steel wire mesh



used in the printing of Chip Elctrical Components,Solar Battery,FPD,LCD,PCB,Glass,etc,



Specification

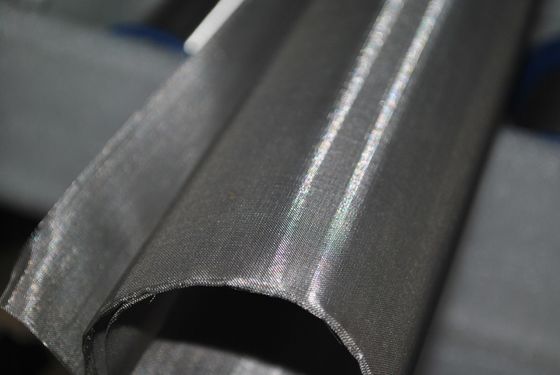

Stainless Steel Mesh Cloth With High Corrosion Resistant For Screen Printing 0





Stainless Steel Mesh Cloth With High Corrosion Resistant For Screen Printing 1

Stainless Steel Mesh Cloth With High Corrosion Resistant For Screen Printing 2
