Quality first, customer first, the pursuit of excellence！
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| Materail: | 100%Nylon | Color: | White, |
|---|---|---|---|
| Name: | Nylon Filter Mesh | Hot Search: | Nylon Filter Mesh |
| Weave Type: | Plain Weave | Mesh Count: | 10-550mesh/inch |
| High Light: | nylon mesh filter fabric,nylon mesh cloth |
||

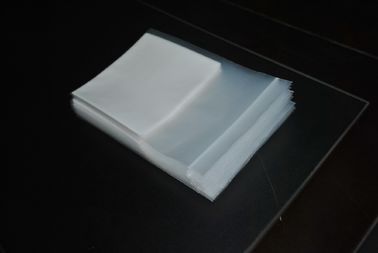

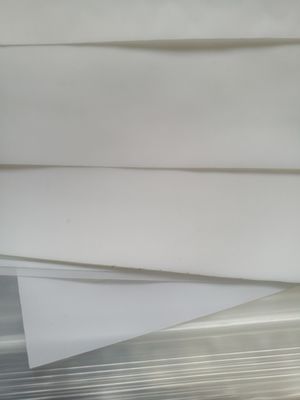

Health Nylon Filter Mesh With White Color For Food Filtration
Description:
White nylon yarn is also called nylon blended, the material for the food grade nylon 66, non-toxic, odorless. High strength, large elongation, excellent flexibility. Strong, good wear resistance, home all the first fiber.
Features of nylon filter mesh
Specification:
| Fabric number |
Mesh count |
Thread diameter | Mesh opening |
Open surface |
Fabric thickness |
Weight | ||
| NO. | Mesh/cm | Mesh/inch | micron | micron | % | micron | g/m2 | |
| JPP4 | 4 | 10 | 550 | 1950 | 61 | 950 | 262 | |
| JPP5 | 5 | 12 | 500 | 1500 | 56 | 850 | 271 | |
| JPP6 | 6 | 16 | 400 | 1267 | 58 | 780 | 208 | |
| JPP7 | 7 | 18 | 350 | 1079 | 57 | 675 | 186 | |
| JPP8 | 8 | 20 | 350 | 900 | 52 | 685 | 212 | |
| JPP9 | 9 | 24 | 250 | 860 | 60 | 455 | 145 | |
| JPP10 | 10 | 25 | 300 | 700 | 49 | 576 | 195 | |
| JPP12 | 12 | 30 | 250 | 583 | 49 | 470 | 162 | |
| 12 | 30 | 300 | 533 | 41 | 585 | 234 | ||
| JPP14 | 14 | 35 | 300 | 414 | 34 | 595 | 273 | |
| JPP16 | 16 | 40 | 200 | 425 | 46 | 370 | 139 | |
| 16 | 40 | 250 | 375 | 36 | 485 | 217 | ||
| JPP20 | 20 | 50 | 150 | 350 | 49 | 375 | 98 | |
| 20 | 50 | 200 | 300 | 36 | 385 | 173 | ||
| JPP24 | 24 | 60 | 150 | 267 | 41 | 285 | 117 | |
| JPP28 | 28 | 70 | 120 | 237 | 44 | 215 | 87 | |
| JPP30 | 30 | 76 | 120 | 213 | 41 | 225 | 94 | |
| JPP32 | 32 | 80 | 100 | 213 | 46 | 165 | 69 | |
| JPP36 | 36 | 90 | 100 | 178 | 41 | 178 | 78 | |
| JPP40 | 40 | 100 | 100 | 150 | 36 | 190 | 87 | |
| JPP43 | 43 | 110 | 80 | 152 | 43 | 135 | 60 | |
| JPP48 | 48 | 120 | 80 | 130 | 38 | 145 | 62 | |
| JPP56 | 56 | 140 | 60 | 120 | 44 | 85 | 44 | |
| JPP59 | 59 | 150 | 60 | 110 | 42 | 98 | 46 | |
| JPP64 | 64 | 160 | 60 | 100 | 37 | 105 | 50 | |
| JPP72 | 72 | 180 | 50 | 90 | 41 | 82 | 39 | |
| JPP80 | 80 | 200 | 50 | 75 | 36 | 90 | 43 | |
| JPP100 | 100 | 250 | 40 | 60 | 36 | 65 | 35 | |
| JPP120 | 120 | 305 | 40 | 43 | 25 | 70 | 42 | |
| JPP130 | 130 | 330 | 40 | 37 | 23 | 75 | 45 | |
Application of nylon filter mesh
1. used in refrigeration air conditioning equipment, air cleaners and air purification equipment and engineering dust filter early use.
2. Office buildings, conference rooms, hospitals, shopping malls, gymnasiums, airports and other large civil building ventilation system; general factory centralized ventilation and air conditioning system; clean room centralized ventilation air conditioning system in the primary filter
Packing and Delivery
Packing:Plastic bag on one roll inside and carton box outside
Delivery:After receiving 50% advanced payment,we will arrange to producing and the goods will be shipped within 8days..
Contact Person: Miss. Helen Hou
Tel: +86-318-7595879
Fax: 86-318-7756677
