Product Details:
Payment & Shipping Terms:
|
Material: | 100%polyester | Hot Search: | Polyester Filter Mesh |
---|---|---|---|
Mesh Count: | 6T-165T | Weave Type: | Plain Weave |
Yarn Count: | Monofilament | Supply Type: | In Stock |
High Light: | polyester monofilament mesh,mesh screen fabric |
High Durability DPP Polyester Filter Mesh Used For Milk Filtering
Features:
Shipping:
Description:
Application:

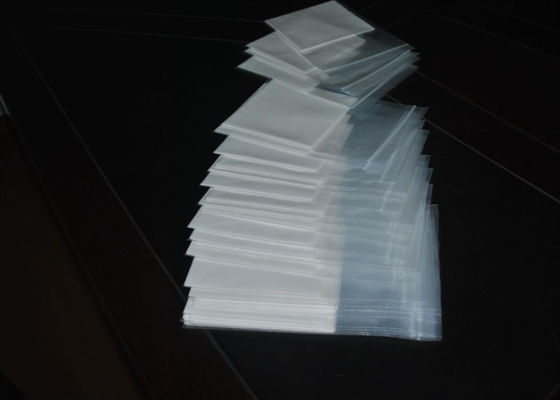

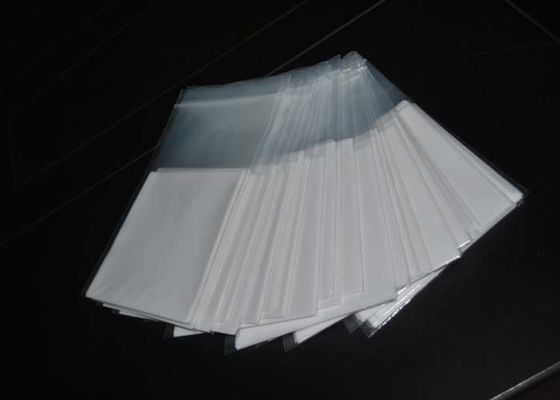

100%polyester filter mesh for food is widely used in areas as filtration and separation industry. Such as food industry for milling filtering and flour milling, paper making factory and other grains milling. Like glucose production, milk powder, soybean milk,liquid & dust filtration (filters, filter bags, dust filter bags,etc.
Specification:
COUNT (INCH) | COUNT (CM) | DIAMETER (UM) | OPEPING (UM) | OPEN AREA(%) | THICKNESS(UM) | VOLUME (CM³/CM²) |
15 | 6 | 400 | 1270 | 64 | 720 | 460 |
18 | 7 | 350 | 1078 | 64 | 640 | 410 |
20 | 8 | 300 | 950 | 58 | 550 | 319 |
25 | 10 | 250 | 750 | 56 | 620 | 347 |
30 | 12 | 250 | 583 | 49 | 450 | 220 |
30 | 12 | 150 | 683 | 67 | 300 | 201 |
40 | 16 | 200 | 425 | 46 | 400 | 184 |
50 | 20 | 80 | 420 | 71 | 120 | 85 |
50 | 20 | 150 | 350 | 49 | 260 | 127 |
60 | 24 | 100 | 316 | 58 | 136 | 78 |
60 | 24 | 120 | 297 | 50 | 240 | 120 |
73 | 29 | 120 | 225 | 43 | 240 | 103 |
80 | 32 | 64 | 248 | 63 | 95 | 59 |
80 | 32 | 100 | 212 | 46 | 200 | 92 |
85 | 34 | 100 | 195 | 44 | 221 | 97 |
90 | 36 | 100 | 178 | 41 | 216 | 88 |
100 | 39 | 55 | 200 | 61 | 88 | 53 |
100 | 39 | 80 | 176 | 47 | 150 | 70 |
110 | 43 | 80 | 153 | 43 | 130 | 56 |
120 | 47 | 55 | 158 | 55 | 88 | 48 |
120 | 47 | 71 | 142 | 44 | 135 | 59 |
135 | 53 | 55 | 133 | 50 | 86 | 43 |
135 | 53 | 64 | 125 | 44 | 100 | 44 |
150 | 59 | 64 | 105 | 38 | 100 | 38 |
160 | 64 | 55 | 101 | 42 | 98 | 41 |
160 | 64 | 64 | 92 | 35 | 120 | 42 |
180 | 72 | 48 | 91 | 43 | 78 | 66 |
180 | 72 | 55 | 84 | 37 | 100 | 37 |
200 | 80 | 48 | 77 | 38 | 74 | 28 |
195 | 77 | 55 | 75 | 33 | 105 | 34 |
230 | 90 | 48 | 63 | 33 | 85 | 28 |
250 | 100 | 40 | 60 | 36 | 70 | 25 |
280 | 110 | 40 | 51 | 31 | 85 | 26 |
305 | 120 | 40 | 43 | 27 | 68 | 18 |
355 | 140 | 34 | 37 | 27 | 58 | 15 |
380 | 150 | 31 | 36 | 29 | 46 | 13 |
420 | 165 | 31 | 30 | 24 | 46 | 11 |
460 | 180 | 27 | 28 | 26 | 56 | 14 |
