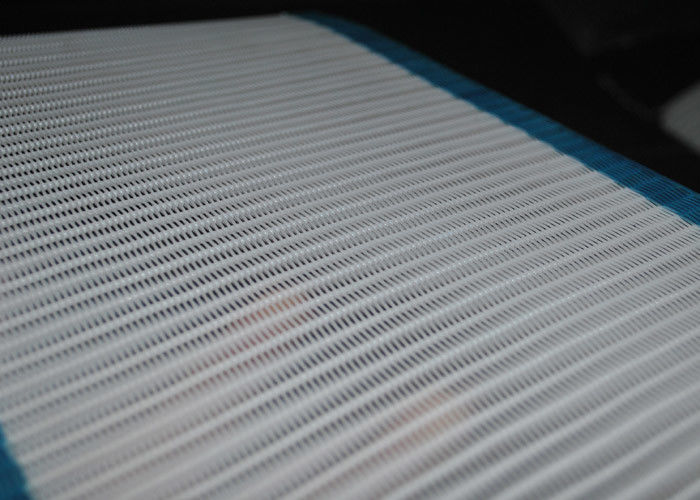

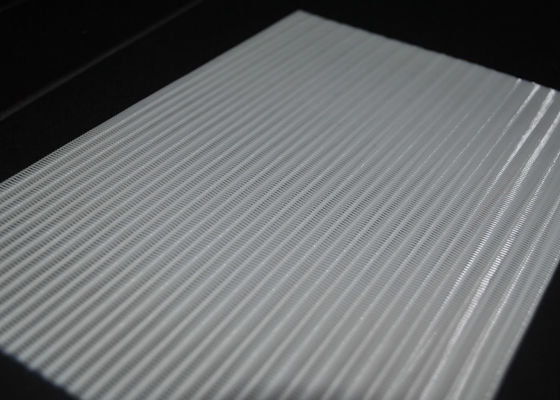

3252 Small Loop Polyester Mesh Belt Spiral Wire For Paper Production

3252 Small Loop Polyester Mesh Belt Spiral Wire For Paper Production
3252 Small Loop Polyester Mesh Belt Spiral Wire For Paper Production 3252 Small Loop Polyester Mesh Belt Spiral Wire For Paper Production

Large Image :  3252 Small Loop Polyester Mesh Belt Spiral Wire For Paper Production

Product Details:
Place of Origin: Hebei,China
Brand Name: PFM
Certification: FDA
Model Number: PFM-Hel
Payment & Shipping Terms:
Minimum Order Quantity: 1 Square Meter
Price: Negotiable
Packaging Details: Plastic Bag Inside And Plywood Case Outside Or According To The Customer's Needs.
Delivery Time: 3-5 Working Days
Payment Terms: L/C, T/T, Western Union, , ,Paypal
Supply Ability: 2000 Square Meters Per Quarter
Detailed Product Description
Marterail: Monofilament Polyester Name: 3252 Small Loop Polyester Mesh Belt With Spiral Wire For Paper Production
Hot Search: Polyester Mesh Belt Weave Type: Small Loop,medium Loop,large Loop
Application: Paper Industry Wire Diameter: 0.52mm,0.7mm
High Light:

mesh material fabric

,

woven mesh fabric

3252 Small Loop Polyester Mesh Belt With Spiral Wire for Paper Production





Description:



Polyester Mesh belt with loop is also called polyester spiral wire mesh belt,Spirl wire dryer screen.



According to  loops size:Polyester Mesh can be devided into large loop Polyester Spiral Mesh Belt,Medium Spiral Wire Mesh Belt,Small Loop Wire Mesh Belt.



According to stuff:Polyester Mesh Belt can be devided into Polyester Spiral Mesh Belt and Polyester Spiral Mesh Belt with Stuff,which is polyester wire,which can be added into the loop,the numbers of the wire can be 3,4,5.

3252 Small Loop Polyester Mesh Belt Spiral Wire For Paper Production 0

According to color,Polyester Mesh Belt can be devided into white,blue,red and black.



Application of Polyester Spiral Dryer Mesh Belt:



  •  Paper Making machine
  • drying process of printing and dyeing





 ​ Specification of polyester spiral mesh belt without stuff:



Polyester Spiral Dryer Conveyor Wire Mesh Belt
Weaving Type Model Thread Diameter Air permeability
(mm) (m3/m2h)
Warp Weft
Large Loop 4070 0.9 1.1 20000±500
Medium Loop 3868 0.7 0.9 18500±500
Small Loop 3252 0.52 0.7 15000±500



Polyester Spiral Mesh Belt with stuff,this kind of polyester dryer screen belt is filled with stuff to reduce the air permeability  and to intensive the opening ,then to reduce the material loss from the opening.



Polyester Spiral Mesh Belt with Stuff  is mainly used in sludge desiccation,paper pulp washing,coal washing,chemicals,dehydration of wine bran,vinegar bran dehydration and other industries.It is better in the high  ventilation part of drying part of paper-making machines.





Polyester Spiral Dryer Mesh Belt
Weaving Type Model Thread Diameter Air permeability
(mm) (m3/m2h)
Warp Weft filled with stuff
Large Loop 4070 0.9 1.1 0.9*4 5500±500
0.9*5 4500±500
Medium Loop 3868 0.7 0.9 0.8*3 4750±500
0.8*4 4200±500
Small Loop 3252 0.52 0.7 0.68*3 15000±500



How to connect the two end of spiral wire mesh belts:

3252 Small Loop Polyester Mesh Belt Spiral Wire For Paper Production 1



Usually the edge of polyester mesh belt is treated with glue,which is food grade.



Texo weaving machine imported from sweden.

Heat shaping processing is very important to the quality of polyester plain weave mesh screen,PFM Screen has 100 meter long heat treatment machine,this processing can work under 200ºC temperature with slow speed to make sure the quality of polyester dryer screen.the error is only ±1ºC in the whole heat shapeing processing.

Advanced programming software completes the controlling,

3252 Small Loop Polyester Mesh Belt Spiral Wire For Paper Production 2

Packing and shipping:



Polyester Spiral Wire Mesh Belt can be shiped by courier,by air and by sea.



Usually we pack polyester dryer screen belt with air bubble film,if ship by sea, it will be packed with plywood case.

3252 Small Loop Polyester Mesh Belt Spiral Wire For Paper Production 3







3252 Small Loop Polyester Mesh Belt Spiral Wire For Paper Production 4
