12502 / 30273 Polyester Dryer Screen Mesh Belt For Food Dryer , White Color

Certification
China Anping County Comesh Filter Co.,Ltd certification
China Anping County Comesh Filter Co.,Ltd certification
Customer Reviews
Never appear quality problem, timely delivery, very satisfied.

—— Eric

Money and treasures will be plentiful

—— Yee

Integrity enterprises, quality assurance, timely delivery, first-class after-sale.

—— Mario

I'm Online Chat Now

12502 / 30273 Polyester Dryer Screen Mesh Belt For Food Dryer , White Color

12502 / 30273 Polyester Dryer Screen Mesh Belt For Food Dryer , White Color
12502 / 30273 Polyester Dryer Screen Mesh Belt For Food Dryer , White Color 12502 / 30273 Polyester Dryer Screen Mesh Belt For Food Dryer , White Color

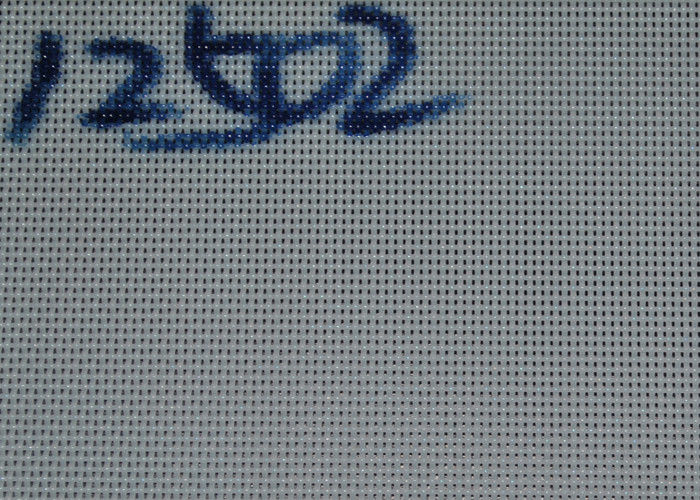

Large Image :  12502 / 30273 Polyester Dryer Screen Mesh Belt For Food Dryer , White Color

Product Details:
Place of Origin: Hebei,China
Brand Name: PFM
Certification: SGS,FDA
Model Number: PFM-Hel
Payment & Shipping Terms:
Minimum Order Quantity: 5 square meter
Price: negotiable
Packaging Details: plastic bag inside, plywood case outside
Delivery Time: 5-8 days
Payment Terms: T/T, L/C, Western Union,
Supply Ability: 2000 square meter per month
Detailed Product Description
Name: 12502 / 30273 Polyester Dryer Screen Mesh Belt For Food Dryer White Material: 100% Polyester Monofialment
Hot Search: 12502 Polyester Dryer Screen Wire Diameter: 0.2mm-0.75mm
Weave Type: Plain Weave Application: Colliery
Model: 30273
High Light:

stretch mesh fabric

,

polyester mesh fabric

12502 / 30273 Polyester Dryer Screen Mesh Belt for food Dryer white





Application of Polyester Mesh Belt Dryer Screen:



Polyester Mesh Belt Dryer Screen is widely used in mining sieving,paper pulps making,sulplate pulp packing,mineralseparation,benefication,fiberboard plants.



Polyester Dryer Mesh Screen is also used for tailings disposal,colliery,food and medicine.



Features of Polyester Dryer Screen Mesh Belt:



  • hard wearing
  • flat surface
  • good air permeability
  • stable property
  • long lifespan.



Specifications of   Polyester Mesh Belt Dryer Screen

Polyester Mesh Belt Dryer Screen
Weaving Type Model Thread Diameter Density(No.s/cm) Srength Air Permeability
(mm) (N/cm) (m3/m2h)
Warp Weft Warp Weft
2-shed plain weaving fabric 5802 0.75 0.8 4.7-5 4.8-5 940 20000
5102 1 1 4.7-5.2 4.3-5 1600 15000
6702 0.7 0.7 8 7 1600 11000
7102 0.7 1 6.6-7 4.3-4.6 1100 15000
8552 0.55 0.55 7.5-8 8.5-9 850 850-6500
9452 0.45 0.45 10 8.6 1600 16000
9502 0.5 0.5 8.5-9 10-10.5 750 10000
12502 0.5 0.5 13.5 8.5 1800 6500
3-shed plain weaving fabric 8603 0.5 0.6 10 9 1600 14000
8903 0.9 0.9 7.8-8 5-5.5 2100 7500-8500
7803 0.7 0.8 8 8 1600 10000
20353 0.3 0.35 22 14.5 1200 13000
20403 0.3 0.4 22 14.5 1200 13500




Application of Polyester Mesh Belt Dryer Screen:



Polyester Mesh Belt Dryer Screen is widely used in mining sieving,paper pulps making,sulplate pulp packing,mineralseparation,benefication,fiberboard plants.



Discription of Polyester Dryer Mesh Screen is also used for tailings disposal,colliery,food and medicine:



1. the opening size can be 400 micron,500micron,600micron,700micron,800micron,1000micron,1500micron,1800micron,2000micron,2500micron and 3000micron.



2. the width of polyester dryer screen mesh is usually 1 meter - 6 meter,the length is available as per requirement



3. edge treatment:the edge of polyester mesh dryer belt can be sealed with glue and cavans

To make sure extra belt durability,polyester Dryer Screen mesh edge treated with glue and cavans.





4. the joining type of 05802 polyester mesh Dryer belt can be endless,steel pin joining,spiral ring joining and pin ring joining.



Endless Seam make sure the seaming points has the same airpermeabilty and strength with the whole belt



Steel pin,pin ring and spiral ring seam are designed for easy and rapid installation.





Texo weaving machine imported from sweden.

Heat shaping processing is very important to the quality of polyester plain weave mesh screen,PFM Screen has 100 meter long heat treatment machine,this processing can work under 200ºC temperature with slow speed to make sure the quality of polyester dryer screen.the error is only ±1ºC in the whole heat shapeing processing.

Advanced programming software completes the controlling,



Polyester Plain Weave Belt can be shiped by courier,by air and by sea.



Usually we pack polyester dryer screen with air bubble film,if ship by sea, it will be packed with plywood case.
