Payment & Shipping Terms:
|Name:||Blue / White 06702 Polyester Dryer Screen 100% Monofilament For Tailing Disposal||Material:||100% Polyester Monofialment|
|Hot Search:||06702 Polyester Dryer Screen||Wire Diameter:||0.2mm-0.75mm|
|Weave Type:||Plain Weave||Application:||Tailing Disposal|
stretch mesh fabric,
mesh material fabric

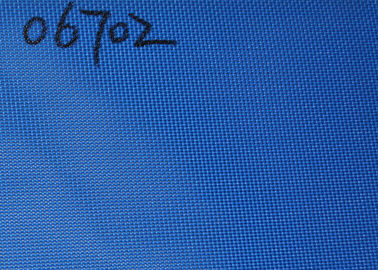

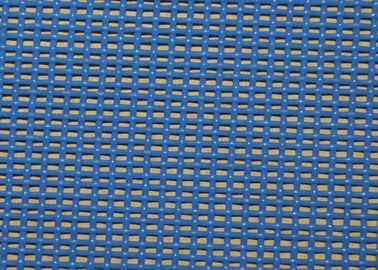

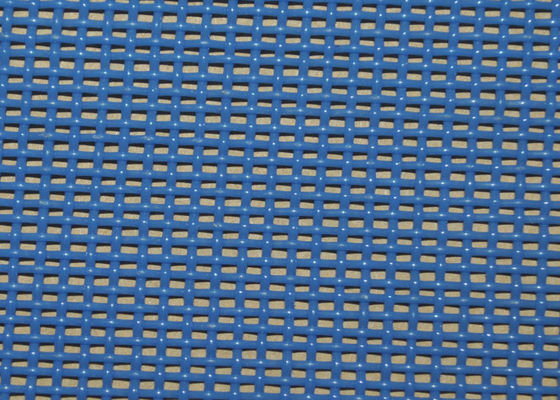

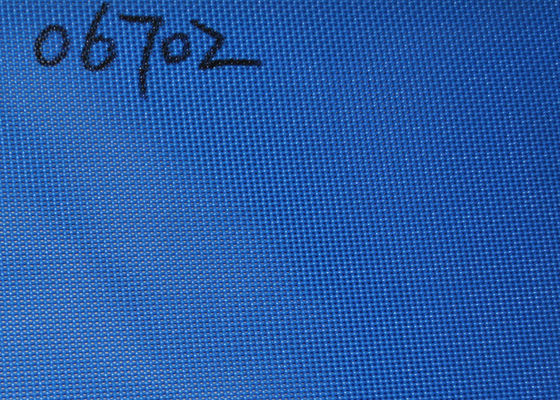

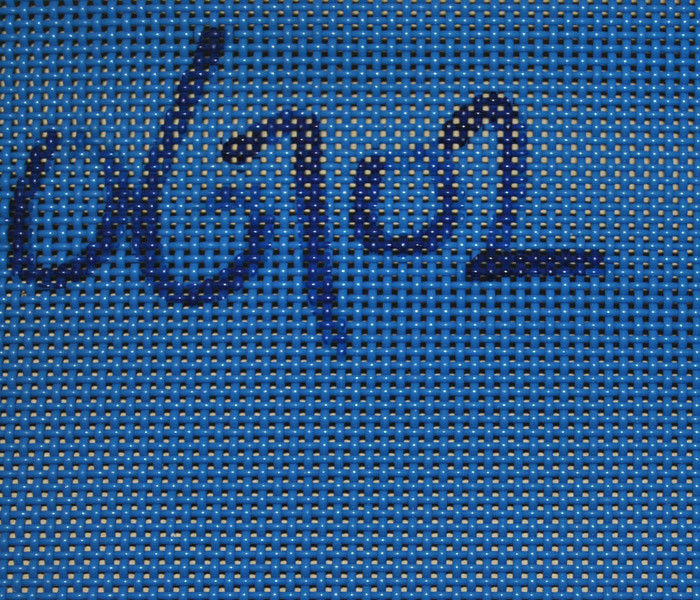

Blue / White 06702 Polyester Dryer Screen 100% Monofilament For Tailing Disposal
Discription of 06702 Polyester Dryer Screen Belt:
1. the opening size can be 400 micron,500micron,600micron,700micron,800micron,1000micron,1500micron,1800micron,2000micron,2500micron and 3000micron.
2. the width of polyester dryer screen belt mesh is usually 1 meter - 6 meter,the length is available as per requirement
3. edge treatment:the edge of polyester mesh dryer belt can be sealed with glue and cavans
To make sure extra belt durability,polyester Dryer Screen mesh edge treated with glue and cavans.
4. the joining type of polyester plain mesh screen can be endless,steel pin joining,spiral ring joining and pin ring joining.
Endless Seam make sure the seaming points has the same airpermeabilty and strength with the whole belt
Steel pin,pin ring and spiral ring seam are designed for easy and rapid installation.
Features of 06702 Polyester Mesh Dryer Belt:
Polyester Mesh Dryer Belt has features of hard wearing,flat surface,good air permeability,stable property,and long lifespan.
Application of 06702 Polyester Screen Dryer mesh:
Polyester Screen Dryer mesh is widely used in mining sieving,paper pulps making,sulplate pulp packing,mineralseparation,benefication,fiberboard plants.
Polyester Screen Dryer Belt is also used for tailings disposal,colliery,food and medicine.
Specifications of Polyester Dryer Screen Belt mesh
|Polyester Monofilament Dryer Screen Belt|
|Weaving Type||Model||Thread Diameter||Density(No.s/cm)||Srength||Air Permeability|
|2-shed plain weaving fabric||5802||0.75||0.8||4.7-5||4.8-5||940||20000|
|3-shed plain weaving fabric||8603||0.5||0.6||10||9||1600||14000|
Texo weaving machine imported from sweden.
Heat shaping processing is very important to the quality of polyester plain weave mesh screen,PFM Screen has 100 meter long heat treatment machine,this processing can work under 200ºC temperature with slow speed to make sure the quality of polyester dryer screen.the error is only ±1ºC in the whole heat shapeing processing.
Advanced programming software completes the controlling,
Packing and shipping:
Polyester Plain Weave Belt can be shiped by courier,by air and by sea.
Usually we pack polyester dryer screen with air bubble film,if ship by sea, it will be packed with plywood case.
