| Name: | White 05802 Polyester Mesh Belt For Cardboard Pulp, Dryer Belt | Hot Search: | 05802 Polyester Mesh Belt |
|---|---|---|---|
| Wire Diameter: | 0.2mm-0.75mm | Weave Type: | Plain Weave |
| Application: | Cardboard Pulp, Dryer Belt | Model: | 05802 |
| Highlight: | plain weave mesh,woven mesh fabric |
||

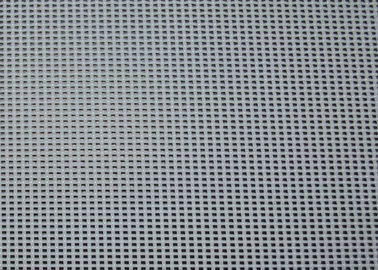

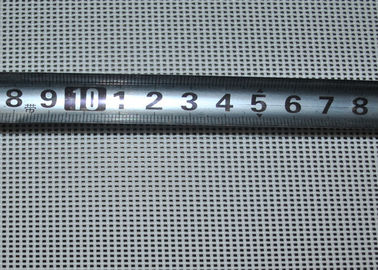

White 05802 Polyester Mesh Belt for cardboard Pulp, Dryer Belt
Features of 05802 Polyester Mesh Belt Screen:
Polyester Mesh Belt Dryer Screen has features of hard wearing,flat surface,good air permeability,stable property,and long lifespan.
Application of Polyester Screen Belt:
Polyester Screen Belt is widely used in mining sieving,paper pulps making,sulplate pulp packing,mineralseparation,benefication,fiberboard plants.
Polyester Screen mesh Belt is also used for tailings disposal,colliery,food and medicine.
Specifications of Polyester Monofilament Dryer Screen Belt
| Polyester Monofilament Dryer Screen Belt | |||||||
| Weaving Type | Model | Thread Diameter | Density(No.s/cm) | Srength | Air Permeability | ||
| (mm) | (N/cm) | (m3/m2h) | |||||
| Warp | Weft | Warp | Weft | ||||
| 2-shed plain weaving fabric | 5802 | 0.75 | 0.8 | 4.7-5 | 4.8-5 | 940 | 20000 |
| 5102 | 1 | 1 | 4.7-5.2 | 4.3-5 | 1600 | 15000 | |
| 6702 | 0.7 | 0.7 | 8 | 7 | 1600 | 11000 | |
| 7102 | 0.7 | 1 | 6.6-7 | 4.3-4.6 | 1100 | 15000 | |
| 8552 | 0.55 | 0.55 | 7.5-8 | 8.5-9 | 850 | 850-6500 | |
| 9452 | 0.45 | 0.45 | 10 | 8.6 | 1600 | 16000 | |
| 9502 | 0.5 | 0.5 | 8.5-9 | 10-10.5 | 750 | 10000 | |
| 12502 | 0.5 | 0.5 | 13.5 | 8.5 | 1800 | 6500 | |
| 3-shed plain weaving fabric | 8603 | 0.5 | 0.6 | 10 | 9 | 1600 | 14000 |
| 8903 | 0.9 | 0.9 | 7.8-8 | 5-5.5 | 2100 | 7500-8500 | |
| 7803 | 0.7 | 0.8 | 8 | 8 | 1600 | 10000 | |
| 20353 | 0.3 | 0.35 | 22 | 14.5 | 1200 | 13000 | |
| 20403 | 0.3 | 0.4 | 22 | 14.5 | 1200 | 13500 |
|
Discription of Polyester Monofilament Dryer Screen Belt:
1. the width of polyester plain weave mesh is usually 1 meter - 6 meter,the length is available as per requirement
2. the opening size can be 400 micron,500micron,600micron,700micron,800micron,1000micron,1500micron,1800micron,2000micron,2500micron and 3000micron.
3. edge treatment:the edge of polyester mesh belt can be sealed with glue and cavans
4. the joining type of polyester plain mesh screen can be endless,steel pin joining,spiral ring joining and pin ring joining.
Texo weaving machine imported from sweden.
Heat shaping processing is very important to the quality of polyester plain weave mesh screen,PFM Screen has 100 meter long heat treatment machine,this processing can work under 200ºC temperature with slow speed to make sure the quality of polyester dryer screen.the error is only ±1ºC in the whole heat shapeing processing.
Advanced programming software completes the controlling,
Packing and shipping:
Polyester Plain Weave Belt can be shiped by courier,by air and by sea.
Usually we pack polyester dryer screen with air bubble film,if ship by sea, it will be packed with plywood case.
