Custom 100 Polyester Mesh Fabric / Plain Weave Mesh For Paper Pulps Making

Brand Name:	PFM
Model Number:	PFM-Hel
MOQ:	5 square meter
Price:	negotiable
Payment Terms:	T/T, L/C, Western Union,
Supply Ability:	2000 square meter per month

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei,China

Certification:

SGS,FDA

Name:

12 Mesh Polyester Monofilament Plain Weave Mesh For Paper Pulps Making

Material:

100% Polyester Monofialment

Hot Search:

12 Polyester Mesh Belt

Wire Diameter:

0.2mm-0.75mm

Weave Type:

Plain Weave

Application:

Paper Pulps Making

Packaging Details:

plastic bag inside, plywood case outside

Highlight:

plain weave mesh

woven mesh fabric

Product Description

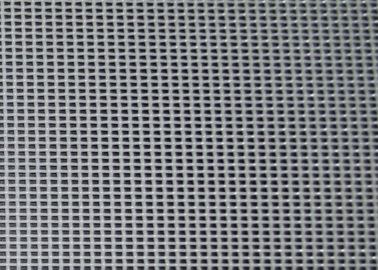

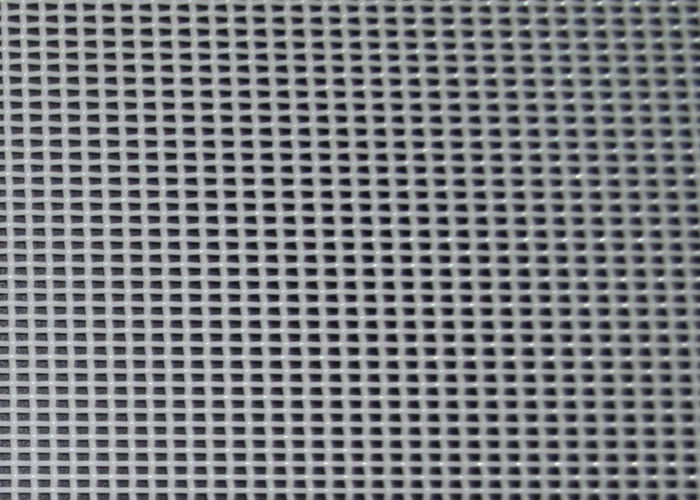

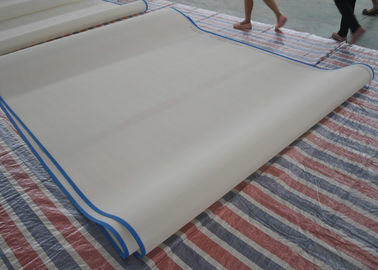

12 Mesh Polyester Monofilament Plain Weave Mesh for Paper Pulps Making

Discription of Polyester Plain weave mesh:

1. the width of polyester plain weave mesh is usually 1 meter - 6 meter,the length is available as per requirement

2. the opening size can be 400 micron,500micron,600micron,700micron,800micron,1000micron,1500micron,1800micron,2000micron,2500micron and 3000micron.

3. edge treatment:the edge of polyester mesh belt can be sealed with glue and cavans

4. the joining type of polyester plain mesh screen can be endless,steel pin joining,spiral ring joining and pin ring joining.

Features of polyester Dryer mesh belt:

Polyester Plain Weave Mesh has features of hard wearing,flat surface,good air permeability,stable property,and long lifespan.

Application of Polyester Mesh Belt Plain Weave Screen:

Polyester Plain weave mesh belt screen is widely used in mining sieving,paper pulps making,sulplate pulp packing,mineralseparation,benefication,fiberboard plants.

Polyester Mesh Belt is also used for tailings disposal,colliery,food and medicine.

Specifications of Polyester plain weave mesh belt

Polyester Linear Screen Mesh Belt
Weaving Type	Model	Thread Diameter		Density(No.s/cm)		Srength	Air Permeability
		(mm)		Density(No.s/cm)		(N/cm)	(m3/m2h)
		Warp	Weft	Warp	Weft
2-shed plain weaving fabric	5802	0.75	0.8	4.7-5	4.8-5	940	20000
	5102	1	1	4.7-5.2	4.3-5	1600	15000
	6702	0.7	0.7	8	7	1600	11000
	7102	0.7	1	6.6-7	4.3-4.6	1100	15000
	8552	0.55	0.55	7.5-8	8.5-9	850	850-6500
	9452	0.45	0.45	10	8.6	1600	16000
	9502	0.5	0.5	8.5-9	10-10.5	750	10000
	12502	0.5	0.5	13.5	8.5	1800	6500
3-shed plain weaving fabric	8603	0.5	0.6	10	9	1600	14000
	8903	0.9	0.9	7.8-8	5-5.5	2100	7500-8500
	7803	0.7	0.8	8	8	1600	10000
	20353	0.3	0.35	22	14.5	1200	13000
	20403	0.3	0.4	22	14.5	1200	13500

Texo weaving machine imported from sweden.

Heat shaping processing is very important to the quality of polyester plain weave mesh screen,PFM Screen has 100 meter long heat treatment machine,this processing can work under 200ºC temperature with slow speed to make sure the quality of polyester dryer screen.the error is only ±1ºC in the whole heat shapeing processing.

Advanced programming software completes the controlling,

Packing and shipping:

Polyester Plain Weave Belt can be shiped by courier,by air and by sea.

Usually we pack polyester dryer screen with air bubble film,if ship by sea, it will be packed with plywood case.
