| Color: | White,Red | Name: | 100% Polyester Monofilament 4106 Polyester Dryer Screen For Paper Drying And Making |
|---|---|---|---|
| Hot Search: | Polyester Dryer Screen | Tension Tolerance: | 0.1KG/cm |
| Material: | 100% Polyester Monofilament | Model Type: | 22503 |
| High Light: | stretch mesh fabric,mesh material fabric |
||

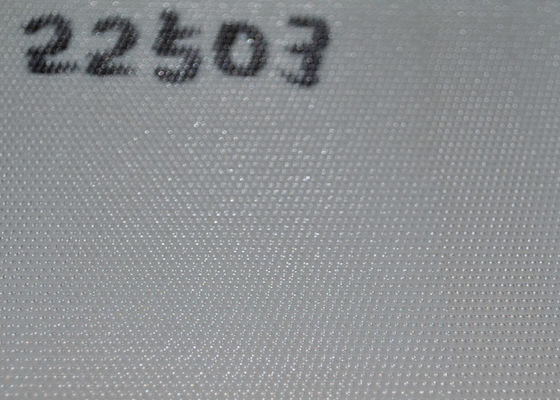

22503 Polyester Dryer Screen 3 Shed Mesh Fabric For Paper Making
Description
22503 Polyester Dryer Screen has features of good air permeability,easy to clean,the constant working temperature can be 115°C ,and instantaneous high temperature can be 180-220°C.
Polyester Dryer Screen is of abrasion resistantce and long life service,waterprrof.
Polyester Dryer Screen for paper making classification:
according to weave type: Polyester Dryer Screen belt can be devided into 3 shed,4shed,3-shed polyester dryer screen is suitable for drying papers less than 70g and 4-shed polyester dryer screen fabric is suitable for drying papers more than 70g
according to the form type:polyester forming fabric mesh can be devided into one and a half layer,double layer.
according to thread type:round wire polyester dryer screen and flat wire polyester dryer screen.
Flat wire dryer screen fabric is suitable for the fore hearing box of the drying zone
Specificaitons of polyester dryer screen for paper drying:
| Polyester Dryer Screen Forming Fabric for Paper Making | |||||||||
| Weave type | Model |
Thread diameter |
Dencity |
strength |
Weight |
Thickness |
Air permeability |
||
| warp | weft | warp | weft | ||||||
| 3-shed | 22503 | 0.5 | 0.5 | 24 | 12 | 2000 | 1.06 | 1.9 | 8000 |
| 22453 | 0.45 | 0.45 | 24 | 13 | 2000 | 0.99 | 1.7 | 8500 | |
| 24503 | 0.5 | 0.5 | 25 | 12 | 2000 | 1.1 | 1.9 | 7000 | |
| 24453 | 0.45 | 0.45 | 25 | 13 | 2000 | 1.02 | 1.8 | 6700 | |
| 4-shed | 20504 | 0.5 | 0.5 | 22 | 12 | 2000 | 1.15 | 2.0 | 15000 |
| 22504 | 0.5 | 0.5 | 24 | 12 | 2000 | 1.26 | 2.1 | 12000 | |
| 24504 | 0.5 | 0.5 | 26 | 12 | 2100 | 1.3 | 2.1 | 11000 | |
| 18504 | 0.5 | 0.5 | 20 | 11 | 1800 | 0.85 | 2.0 | 8000 | |
| Round thread diameter | 4106 | 0.5 |
0.7 |
22.8 | 12.4 | 2200 | 1.3 | 1.75 | 6800 |
|
Flat |
4106-1 |
0.58 |
0.35 |
21 | 15 | 2000 | 1.2 | 1.5 | 2500 |
| 4106-2 | 0.58 0.37 |
0.35 |
21 | 14 | 2000 | 1.2 | 1.5 | 3000 | |
| 4106-3 |
0.58 |
0.35 |
21 | 13 | 2000 | 1.2 | 1.5 | 4000 | |
| 4106-4 |
0.58 |
0.35 |
21 | 13.5 | 2000 | 1.2 | 1.48 | 3500 | |
Packing and shipping:
Polyester Dryer Screen for paper drying can be shiped by courier,by air and by sea.
Usually we pack polyester dryer screen with air bubble film,if ship by sea, it will be packed with plywood case.
Edge treatment of polyester dryer screen:
1. canvas edge treatment
2. glue edge treatment
3. import glue treatment for strict requirement to the edge strength.
4. zip-fastener polyester mesh belt treatment
Texo weaving machine imported from sweden.
Heat shaping processing is very important to the quality of polyester dryer screen,PFM Screen has 100 meter long heat treatment machine,this processing can work under 200ºC temperature with slow speed to make sure the quality of polyester dryer screen.the error is only ±1ºC in the whole heat shapeing processing.
Advanced programming software completes the controlling,
