High Temperature Stainless Steel Wire Filter Woven Crimped BBQ Barbecue Welded Mesh Sieve Waterproof Screen 0.5mm 304

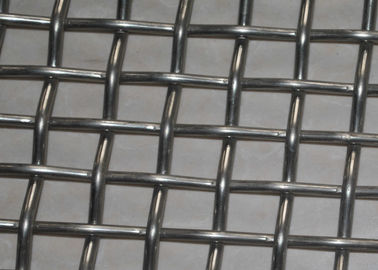

304 Square Opening Stainless Steel Crimped Wire Mesh Screen for BBQ

Decription of stainless steel mesh:

Material: black wire,white wire,steel wire, stainless steel wire, 201 304 316 316L
Weaving and characteristics: crimped before woven, with all types.these goods have stable and strong structure .
Usage: mainly used in coal and mine, building ect fields.

Flat top wire mesh

The top face of the wire mesh is flat and therefore offers optimum supporting surface for the overlying mesh. The underside consists of offsets which will not impede the through flow of the filtrate.

Double Crimped wire mesh Double crimped wire mesh are symmetrical in construction.

Applications
Sieving and sizing support screen for fine wire cloths and other filter media, enclosures, architectural applications

Special design(with square / round wires)
Double crimped wire mesh with square wire in weft direction, round wire in warp direction

Applications
Coarse surface makes this screens ideal for use with husks and granules for the food industry, as well as decorative and design products and applications in interior design

Intermediate Crimped wire mesh There are more offsets used in this design to give greater stability to the backing mesh. However, only every third or fifth offset has a cross wire. This provides a greater number of support points for the overlying mesh, giving a more open sieving area.

Applications
Interior design, backing mesh and profiling, protection against impact

FM Screen Co.,Ltd can also produce micron stainless steel woven wire mesh,crimped woven wire mesh,dutch  weave wire mesh,reverse dutch weave wire mesh.

stainless steel woven wire mesh refers to wire mesh which is super fine, so it is also called stainless steel wire cloth,this kind of mesh is usually used for micron filtering industry,such as air filtering,liquid filter and small solid filtering.

crimped woven wire mesh refer to coarse wire mesh.the wire diameter of crimped mesh is bigger than that of stainless steel fine woven mesh,so crimped wire mesh if of high strength,can used as protection fence,coal mine sieveing screen and wire mesh for hoggery.

Dutch weave wire mesh is another kind of stainless steel woven wire mesh,this mesh count of warp and weft is different,the thickness is bigger than than of stainless steel fine mesh,Dutch weave wire mesh is widely used as micron filtering material of environmental protection equipment.

Reverse dutch weave wire mesh is a kind of dutch weave wire mesh,the mesh count per inch of warp wire is more than that of weft wire,then to form much more thickner of mesh surface.reverse dutch weave wire mesh is widely used as plastic extruder machine.

Features of stainless steel woven mesh

1. corrosion resistant,stainless steel grade is acid and alkali resistant.

2. high temperature resistant,can bear 800 degree centigrade

3. uniform wire diameter,error is +-2micron

4. stable structure

Specifications of steel wire mesh:

1. Consistent pore size distribution guarantees a significantly higher particle separation

2. material:SUS304 316 316L,316L is mainly designed for marine aquaculture and pharmacy.

3. mesh count per liner inch:2-635mesh

4. wire thread can be from 0.08” to 0.0008”

5.width:usually 40” and 48”,special can be ordered

Applications of stainless steel mesh:

1. Chemical filtering

2. Food and beverage for food filtering

3. Mining,main use coarse mesh,such as crimped wire mesh

4. Refining,mail use stainless steel fine mesh

5. Healthcare

6. Architectural ,advise crimped wire mesh and coarse wire mesh used as protection mesh

7. Acoustic,headphone net

8. Automotive

9. Security,PVC coated stainless steel mesh 11mesh.

10. Pharmaceutical: food grade stainless steel fine mesh

11. Quarry,advise carbon steel mesh

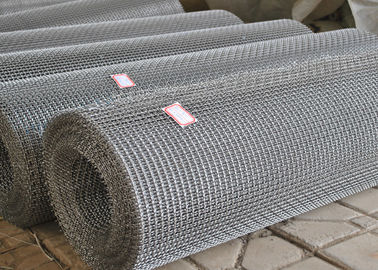

Packing of stainless steel woven wire mesh:
