Products

Home > Products > Polyester Mesh Belt > Textile Wastewater Polyester Mesh Belt Blue For Drying Paper / Filtering

Textile Wastewater Polyester Mesh Belt Blue For Drying Paper / Filtering

Product Details

Place of Origin: Hebei

Brand Name: PFM-LIS

Certification: FDA

Model Number: PFM

Payment & Shipping Terms

Minimum Order Quantity: 1 square meter

Price: negotiable

Packaging Details: Plastic bag inside and plywood case outside.

Delivery Time: 5-10days

Payment Terms: D/A, D/P, Western Union, , L/C, T/T

Supply Ability: 2000 meter per week

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                    plain weave mesh, woven mesh fabric


Material:	Polyester	Length:	As Your Request
Width:	As Your Request	Wire Diameter:	0.5-1.1mm
Feature:	Corrosion Resistant	Sample:	Free

Material:	Polyester
Length:	As Your Request
Width:	As Your Request
Wire Diameter:	0.5-1.1mm
Feature:	Corrosion Resistant
Sample:	Free

Product Description

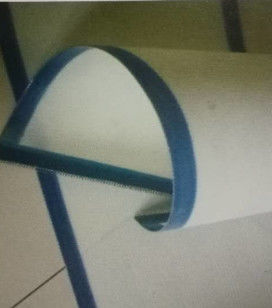

Own Factory Polyester Mesh Belt With Blue For Drying Paper Or Filtering

Description

Polyester mesh belt Is the use of textile machinery, using different weaving method of weaving mesh. Is one of the main drying, filtration materials, widely used in papermaking, sewage treatment, sugar, pharmaceutical, ceramics, food, printing, coal washing and other industries.

The product has the following characteristics

Filter belt stripping performance is good, and easy to regenerate.
The use of high-quality materials and advanced technology makes the mesh belt with high strength, so the product life is long, close to the import of similar products, can replace imports.
Can meet the different filtration accuracy requirements (2-500um).

Applications of polyester mesh belt

Large industrial production process filtration: with a variety of filters supporting widely used in tailings, coal washing, paper pulp, alumina, phosphoric acid, potash, fruit juice press, medicine filtration, food drying sterilization, citric acid filtration, titanium dioxide , Vegetable oil production, sludge drying and other industries filter.
Company's products and domestic dehydration equipment manufacturers supporting the production, and praised by users.

Specification

Sewage treatment mesh
Model	Thread diameter(mm)		Density(No.s/cm)		Strength (N/cm)	Air permeability (m3/m3h)
	Warp	Weft	Warp	Weft
24708	0.5	0.7	24	9	2000	6130
27708	0.5	0.7	28	8.5	2100	4120
22903	0.5	0.9	23	5.5	2000	6800

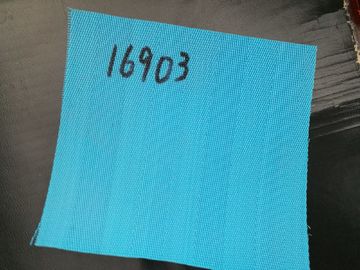

16903	0.7	0.9	17	4.5	2200	7920
121103	0.9	1.1	12.5	3.8	3600	8610
26808	0.5	0.8	27	8.5	2100	5120
14803	0.7	0.8	14.2-15	4.2-5.5	2400	3900-8500
16803	0.7	0.8	15.6-16	4.5-6	2650	4500-6500
16904	0.7	0.9	15.6-16	4.2-5	2800	4000-8000
121054	0.7	1.05	12-12.4	4.2-4.8	3400	2000-4000
20703	0.5	0.7	20-20.6	6.5-8	1850	6000-10000
16704	0.7	0.7	16-16.4	8.5-9	2650	10000-12000
26908	0.5	0.9	26.4-27	6.5-7.5	2400	4500-6500

Packing and Delivery

Packing: Plastic bag inside and plywood case outside

Delivery:After receiving 50% advanced payment,we will arrange to producing and the goods will be shipped within 8days.
