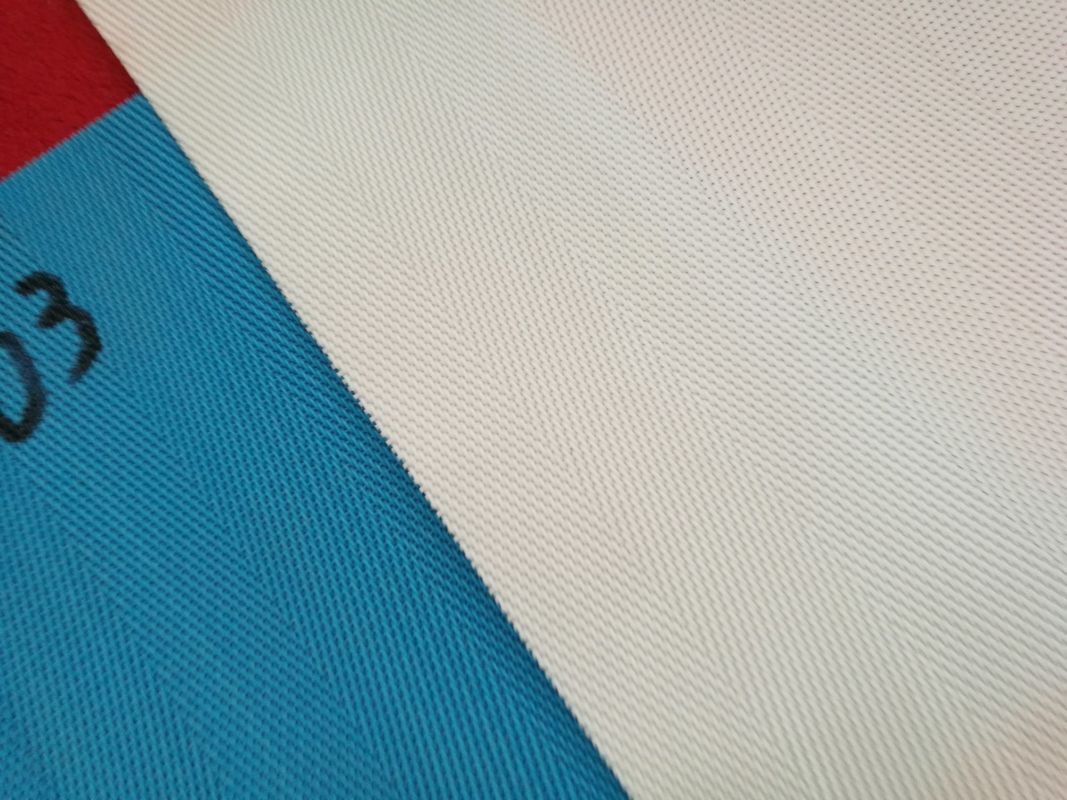

Wasterwater Treatment Polyester Mesh Belt White For Filtering , 0.5-1.1mm

Large Image : Wasterwater Treatment Polyester Mesh Belt White For Filtering , 0.5-1.1mm

Product Details:

Place of Origin:	Hebei
Brand Name:	PFM-LIS
Certification:	FDA
Model Number:	PFM

Payment & Shipping Terms:

Minimum Order Quantity:	1 square meter
Price:	negotiable
Packaging Details:	Plastic bag inside and plywood case outside.
Delivery Time:	5-10days
Payment Terms:	D/A, D/P, Western Union, , L/C, T/T
Supply Ability:	2000 meter per week

Contact Now

Detailed Product Description

Material:	Polyester	Length:	As Your Request
Width:	As Your Request	Wire Diameter:	0.5-1.1mm
Strength:	1850-3400n/cm	Color:	White,blue
Highlight:	mesh material fabric , woven mesh fabric

Wasterwater Treatment Polyester Mesh Belt With White For Filtering

Description

Polyester mesh belt Is the use of textile machinery, using different weaving method of weaving mesh. Is one of the main drying, filtration materials, widely used in papermaking, sewage treatment, sugar, pharmaceutical, ceramics, food, printing, coal washing and other industries.

The product has the following characteristics

Filter belt in the safe use of the temperature and subject to a certain tension, the filter belt shape stability.
Chemical stability: the use of different materials, to meet the acid, alkali, corrosion resistance, high temperature requirements
Filter belt tensile strength, good wear resistance, making the product longer life.
Can meet the different filtration accuracy requirements (2-500um).

Applications of polyester mesh belt

Sludge dewatering: with the belt press filter supporting widely used in urban sewage treatment plants, power plants, steel mills, paper, mining, metallurgy, petroleum, chemical, textile printing and dyeing, food, medicine, ceramics and other industries sludge dewatering.
Power plant desulfurization: with the level of vacuum belt filter supporting widely used in the limestone - gypsum wet desulfurization dehydration. Has been in the five major power groups of the major thermal power plants and equipment manufacturers have been widely used.

Specification

Sewage treatment mesh
Model	Thread diameter(mm)		Density(No.s/cm)		Strength (N/cm)	Air permeability (m3/m3h)
	Warp	Weft	Warp	Weft
24708	0.5	0.7	24	9	2000	6130
27708	0.5	0.7	28	8.5	2100	4120
22903	0.5	0.9	23	5.5	2000	6800
16903	0.7	0.9	17	4.5	2200	7920
121103	0.9	1.1	12.5	3.8	3600	8610
26808	0.5	0.8	27	8.5	2100	5120
14803	0.7	0.8	14.2-15	4.2-5.5	2400	3900-8500
16803	0.7	0.8	15.6-16	4.5-6	2650	4500-6500
16904	0.7	0.9	15.6-16	4.2-5	2800	4000-8000
121054	0.7	1.05	12-12.4	4.2-4.8	3400	2000-4000
20703	0.5	0.7	20-20.6	6.5-8	1850	6000-10000
16704	0.7	0.7	16-16.4	8.5-9	2650	10000-12000
26908	0.5	0.9	26.4-27	6.5-7.5	2400	4500-6500
