Water Resistance Polyester Bolting Cloth Used For Food Filtering

Name: Water Resistance Polyester Bolting Cloth Used For Food Filtering
Brand: Anping County Comesh Filter Co.,Ltd
SKU: PFM-Lyd
Price: 129.10 USD
Availability: InStock

Product Details

Place of Origin: Hebei China

Brand Name: PFM

Certification: LFGB

Model Number: PFM-Lyd

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: Negotiable

Packaging Details: plastic bag,then carton case

Delivery Time: 3-10 days

Payment Terms: L/C, T/T, Western Union, ,Paypal,Trade assurance

Supply Ability: 500 piece per week

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                    tensile bolt cloth, tensile bolting cloth


Material:	100%polyester	Feature:	High Temperature Resistance
Application:	Food Filtering	Mesh Count:	6T-180T
Opening:	25-740micron	Color:	White,yellow,black

Material:	100%polyester
Feature:	High Temperature Resistance
Application:	Food Filtering
Mesh Count:	6T-180T
Opening:	25-740micron
Color:	White,yellow,black

Product Description

Water Resistance Polyester Bolting Cloth Used For Food Filtering

1. The difference between white and yellow polyester bolting cloth

White bolting cloth is within 40-200mesh/inch,Yellow bolting cloth is within 250-500mesh/inch
The refractive index of the two colors is different,White refraction in the copy more, affecting the quality of the screen
If you print ink, you should choose a high head,If the printing paste, select 100 or 80 mesh

2. Description of polyester bolting cloth

Weave type: Plain weave
Mesh count: 6T~180T mesh/cm (15mesh/inch to 460mesh/inch)
Thread Diameter: 31-250um
Mesh Opening: 25-740um
Characteristics: Good stability and finer printing effect
Used: Electric printing, screen printing and so on
Color: Yellow, white

3. Feature advantage of polyester bolting cloth

Polyester bolting cloth has high temperature resistance under 200 Degrees Celsius,acid resistance (not suitable for alkali),solvent resistance,water resistance,chemicals resistance,by the external pressure is large, its physical properties and stability, small stretch

4. Specification of polyester bolting cloth

COUNT (INCH)	COUNT (CM)	DIAMETER (UM)	OPEPING (UM)	OPEN AREA(%)	THICKNESS(UM)	VOLUME (CM³/CM²)	MAX TEN SION(N/CM)
15	6	400	1270	64	720	460	30-60
18	7	350	1078	64	640	410	30-60
20	8	300	950	58	550	319	30-60
25	10	250	750	56	620	347	30-60
30	12	250	583	49	450	220	30-60
30	12	150	683	67	300	201	30-60
40	16	200	425	46	400	184	30-60
50	20	80	420	71	120	85	35-37
50	20	150	350	49	260	127	30-60
60	24	100	316	58	136	78	35-40
60	24	120	297	50	240	120	35-60
73	29	120	225	43	240	103	35-60
80	32	64	248	63	95	59	30-34
80	32	100	212	46	200	92	35-40
85	34	100	195	44	221	97	35-40
90	36	100	178	41	216	88	35-40
100	39	55	200	61	88	53	25-30
100	39	80	176	47	150	70	35-37
110	43	80	153	43	130	56	35-37
120	47	55	158	55	88	48	25-30
120	47	71	142	44	135	59	30-34
135	53	55	133	50	86	43	25-30
135	53	64	125	44	100	44	26-31
150	59	64	105	38	100	38	26-31
160	64	55	101	42	98	41	25-30
160	64	64	92	35	120	42	30-34
180	72	48	91	43	78	66	27-29
180	72	55	84	37	100	37	25-30
200	80	48	77	38	74	28	27-29
195	77	55	75	33	105	34	25-30
230	90	48	63	33	85	28	27-29
250	100	40	60	36	70	25	20-24
280	110	40	51	31	85	26	20-24
305	120	40	43	27	68	18	20-24
355	140	34	37	27	58	15	22-24
380	150	31	36	29	46	13	21-23
420	165	31	30	24	46	11	21-23
460	180	27	28	26	56	14	20-22

5. Application of polyester bolting cloth

Polyester bolting cloth is woven from yarn that is extruded from heated polyester into a single strand. Widely used in textile printing, plate making printing, electronic printing, ceramics, glass, stained paper printing, label plate, and advertising.

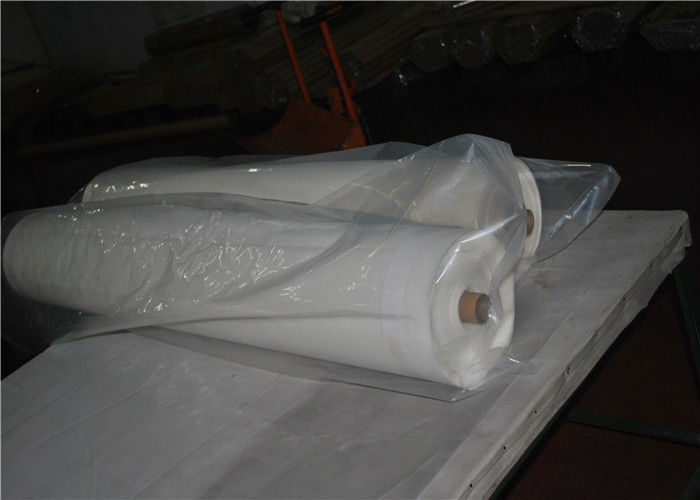

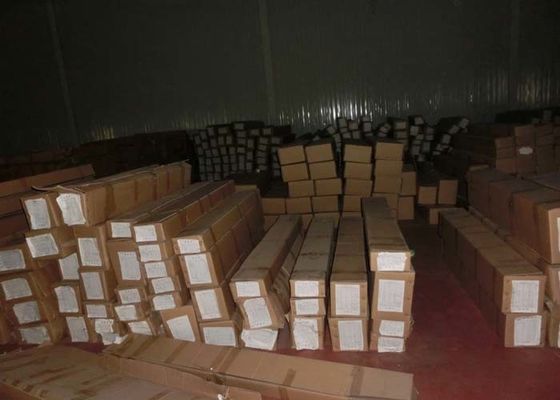

6. The common packaging:

1. 30-70m/roll in PVC bag.

2. 2-8 rolls per carton .
3. waterproof bags outside .
4. package belt strengthen.

7. The common shipping:

1. for small quantity, shipped by courier.

2. for large quantity, shiped by air or by sea.

3. tracking number will be emailed to you after order has been shipped.

4. If you have forwarder in China, we can send to your forwarder for free.
